Description
Specific for the Gliders and other fixed-wings.       Small in form factor, It can be installed in gliders with restricted payload bays such as DLG's and high performance slopers.      Not needing to install an additional altimeter/variometer also saves room and weight.
The built in barometer provides vertical speed telemetry.      The variometer sounds both ascending and descending tones, so you will know whether you are in lift or sink without having to look at your transmitter.
with ExpressLRS firmware and CRSF protocol, this will also give you other telemetry data like battery voltage, current and GPS related.

LRS 2.4G Receiver With Seven-Channel PWM Reception.
Independent PWM Channel Output, suitable for fixed wing vehicles, ships and other models installed.
It also supports CRSF output.   The two output signals can be switched.
The PWM 6CH/7CH CRSF switch is easy to switch without rebrushing the firmware
Turn on the receiver WI-FI network,

1.   Use the lua menu of the transmitter to activate the WI-FI of the receiver when it is connected to the high-frequency head
2.   When the high-frequency head is not connected, power on for one minute, and the receiver automatically enters WI-FI

Search for WIFI on your computer or phone
WIFI hotspot name: ExpressLRS RX
Connection password (all lowercase) : expresslrs

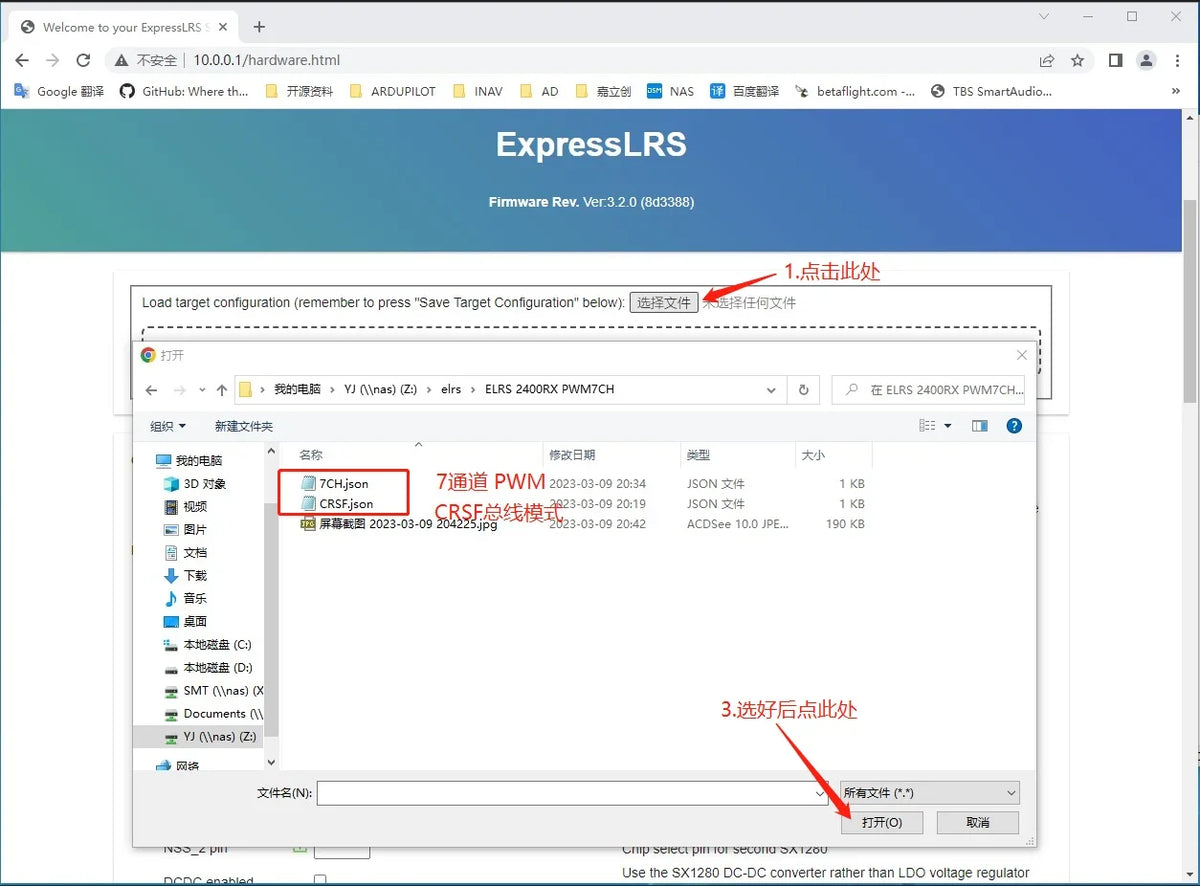

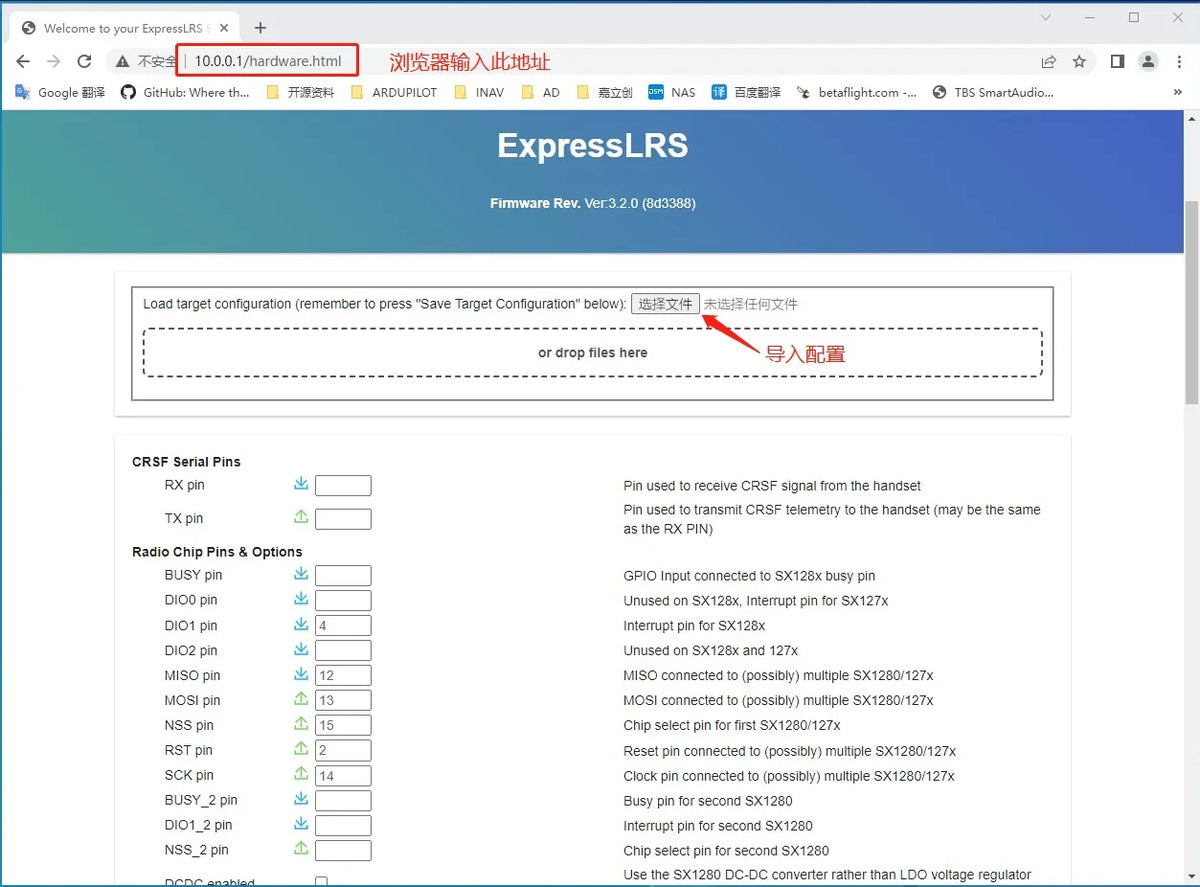

The browser open http://10.0.0.1/hardware.html
Enter the ELRS hardware configuration page to import the hardware configuration file (Note: do not modify it before you fully understand the meaning of each parameter)

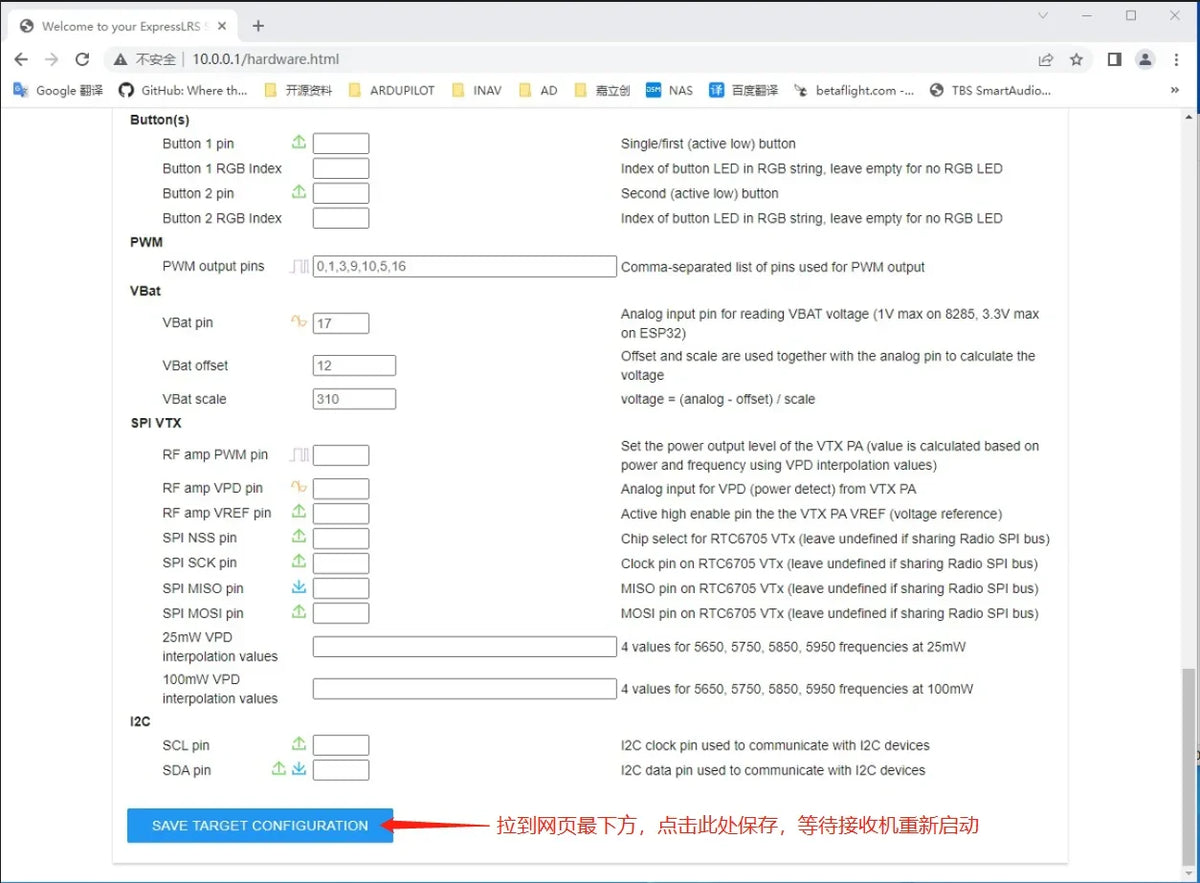

Import the configuration file we provided, PWM 7CH or CRSF, then click the button at the bottom of the page and wait for the receiver to restart itself

Specifications
ESP8285, SX1281, ExpressLRS Firmware
RF Frequency: 2.4GHz ISM (2400~2480MHz)
Antenna connector: IPEX MHF-1
Telemetry power: 12dbm
7x PWM outputs
PWM frequency: 50, 100, 160, 330, 400Hz configurable
PWM resolution: 4x 1024 position + 3x 128 position(ExpressLRS 2.0 Wide switch mode)
36V Max.      battery voltage sense (1K:10K voltage divider built-in)
Compatible with external Current sensor (0~3.3V)
RxBt,Curr,Capa,Bat%,GPS telemetry and VSpd(Vario)
Rated voltage: 3.5~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
Power dissipation:  50mA(binding), 90mA(wifi mode)
Failsafe value configurable

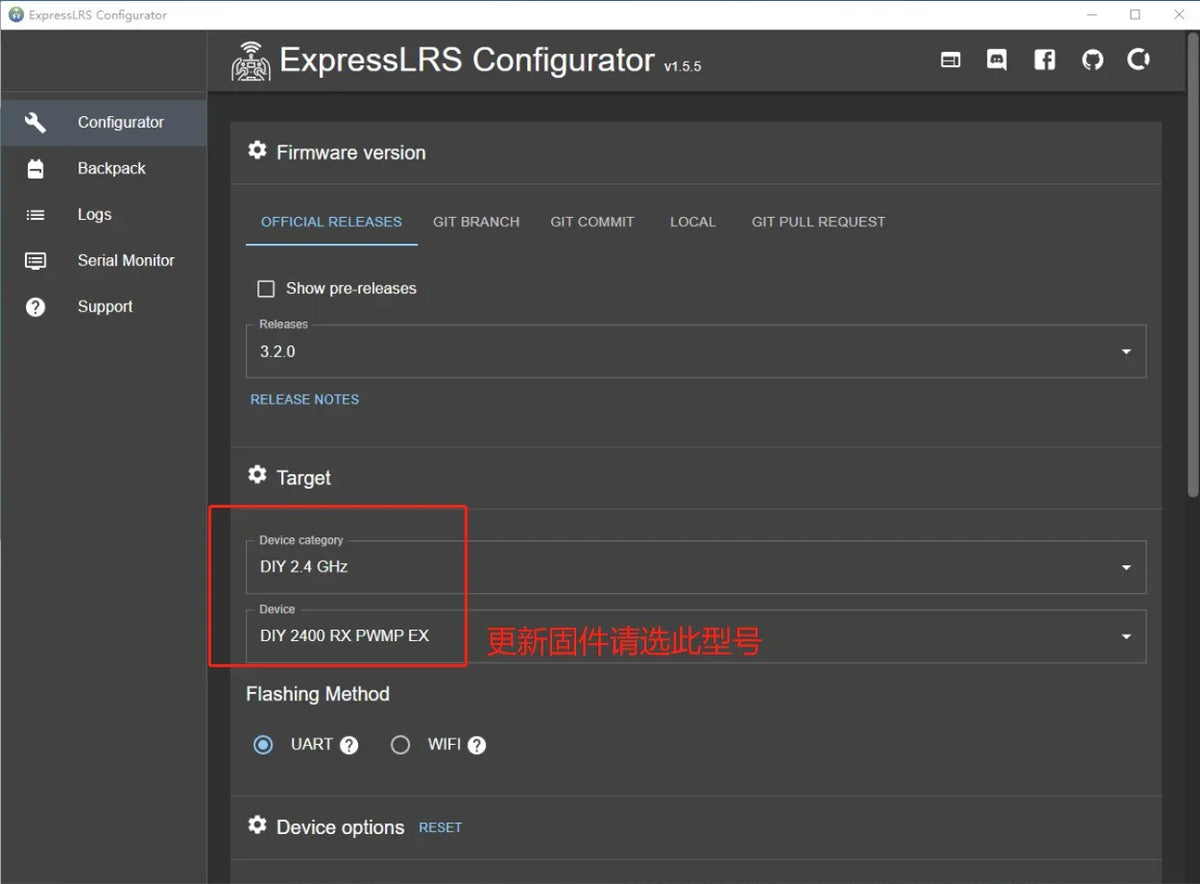

Firmware upgradeable
Physical:
PCB Size: 27x16mm,
Weight: 5g w/ antenna and 2.54 pins

Packing:

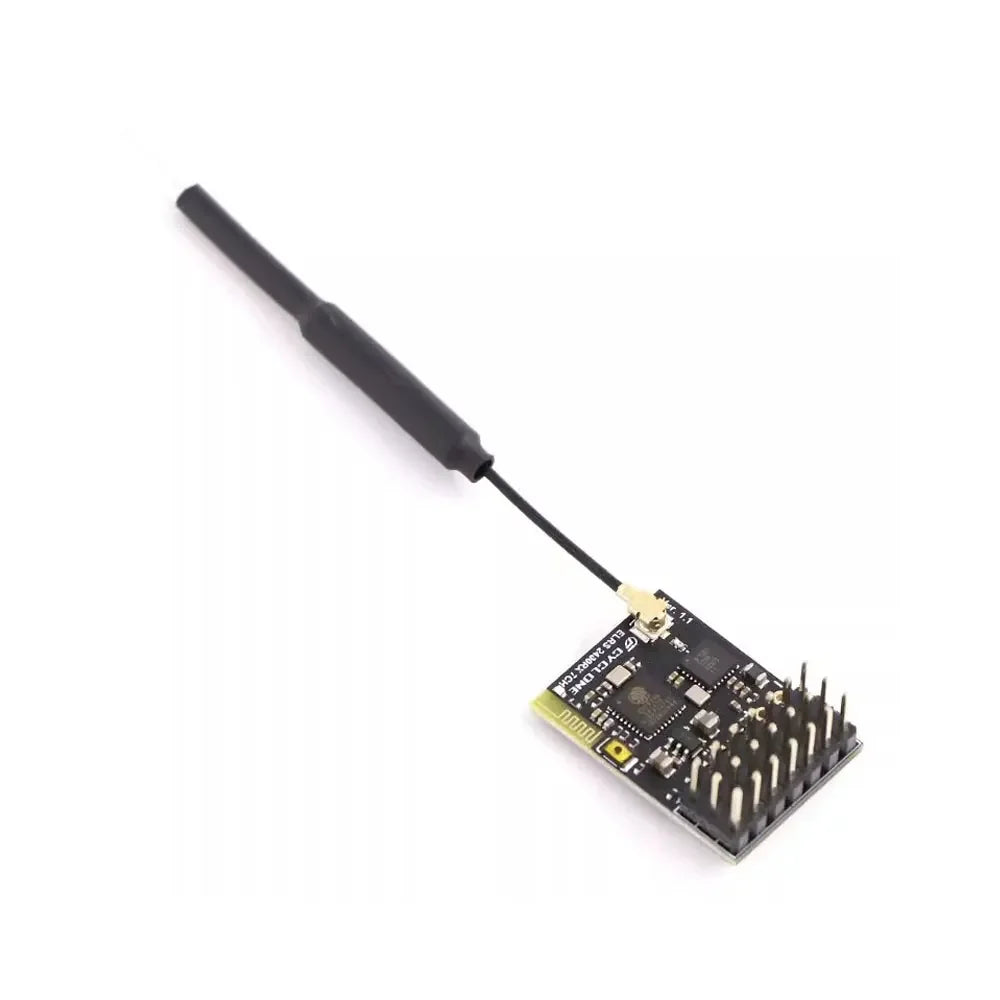

1x ELRS 2.4G PWM 7CH CRSF Receiver
1x IPEX MHF1 Antenna
2.54mm straight and 90° 3×6 Dupont pins
