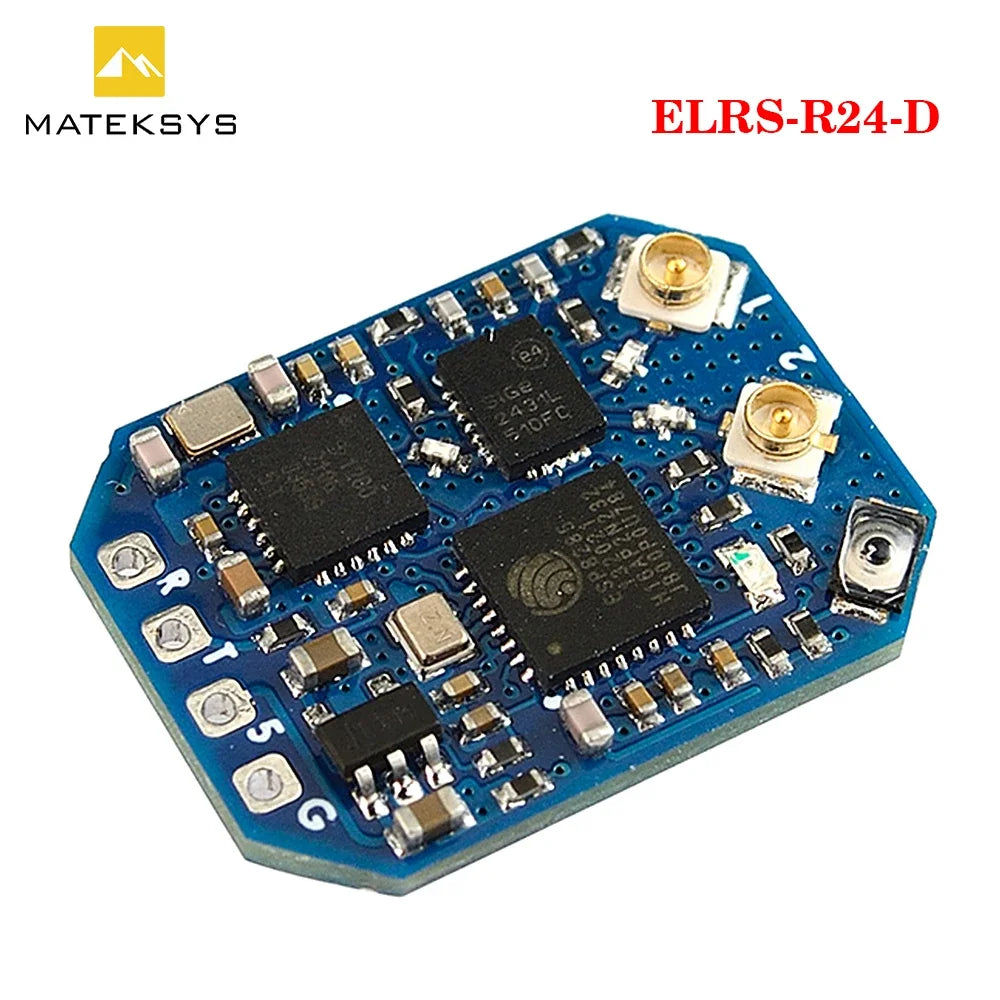

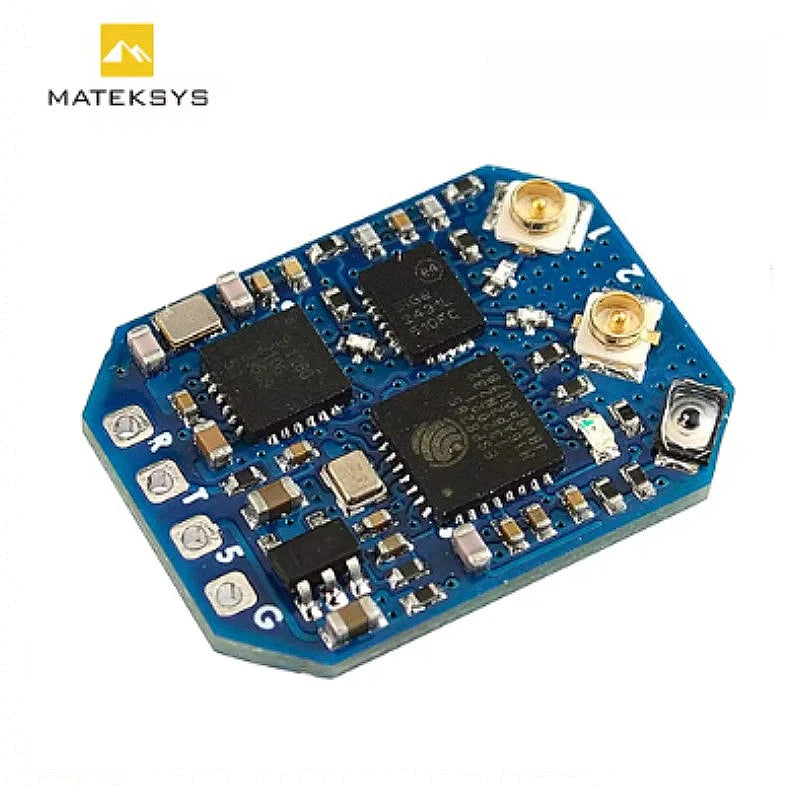

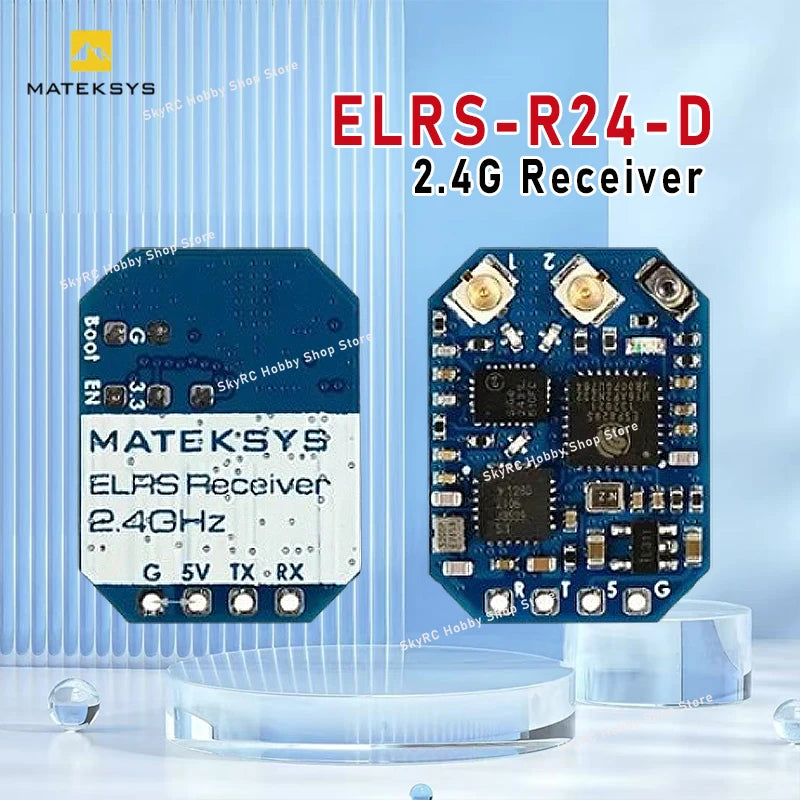

MATEKSYS ELRS-R24-D 2.4G Receiver - ELRS Protocol, CRSF, Nano/Micro/Mini Size, for FPV Racing Freestyle Long-Range RC Systems
-
Estimated Delivery:Oct 02 - Oct 06
-
Free Shipping & Returns: On all orders
MATEKSYS ELRS-R24-D 2.4G Receiver - ELRS Protocol, CRSF, Nano/Micro/Mini Size, for FPV Racing Freestyle Long-Range RC Systems
SPECIFICATIONS
Brand Name: NONE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: MATEK R24D ELRS 2.4G Receiver
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Hydraulic Transmission Box
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

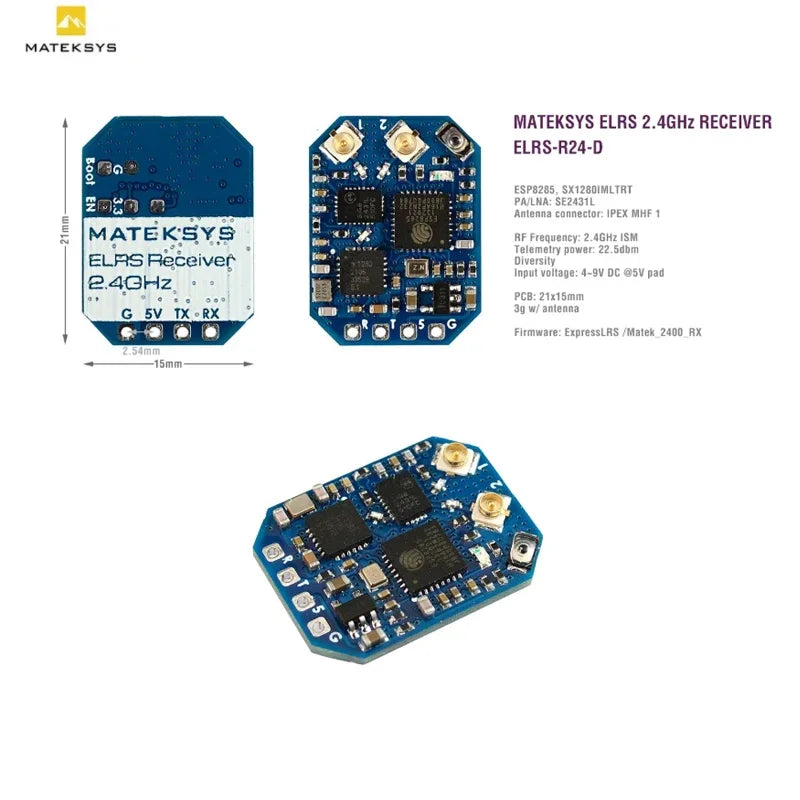

ELRS-R24-D Specifications
-
ESP8285, SX1280IMLTRT
-
PA/LNA: SE2431L
-
Antenna connector: IPEX MHF 1
-
RF Frequency: 2.4GHz ISM
-
Telemetry power: 22.5dbm
-
Diversity (antenna-switching), default ANT2
-
Receiver protocol: CRSF
-
Input voltage: 4~9V DC @ 5V pad
-
Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
-

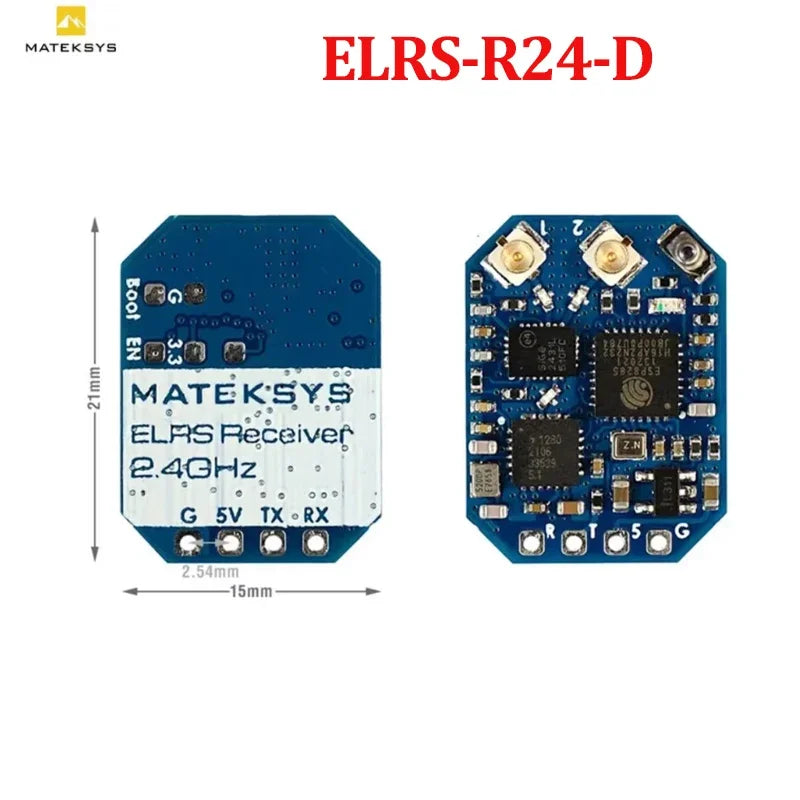

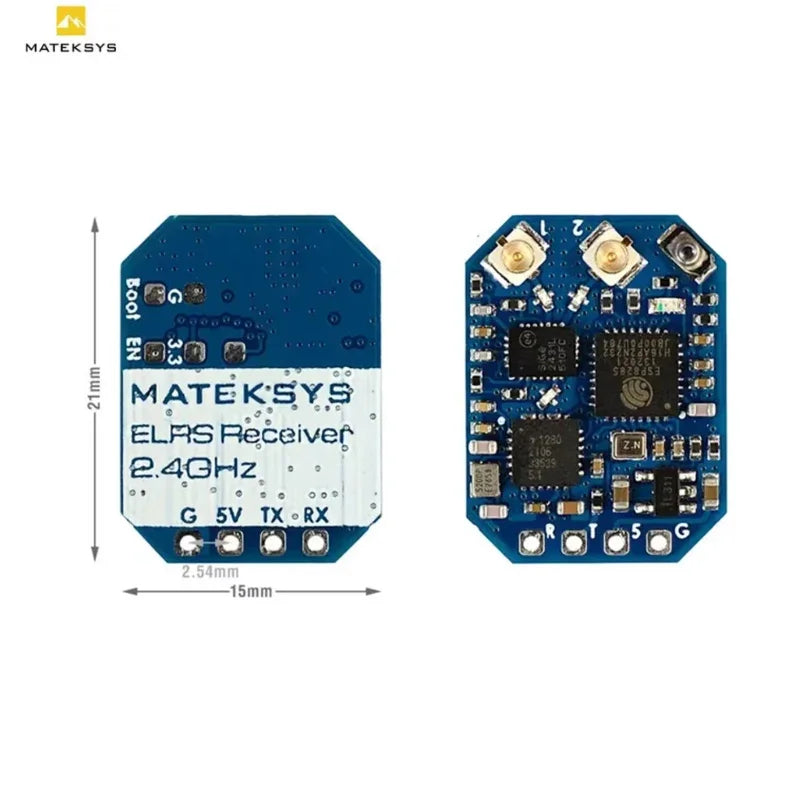

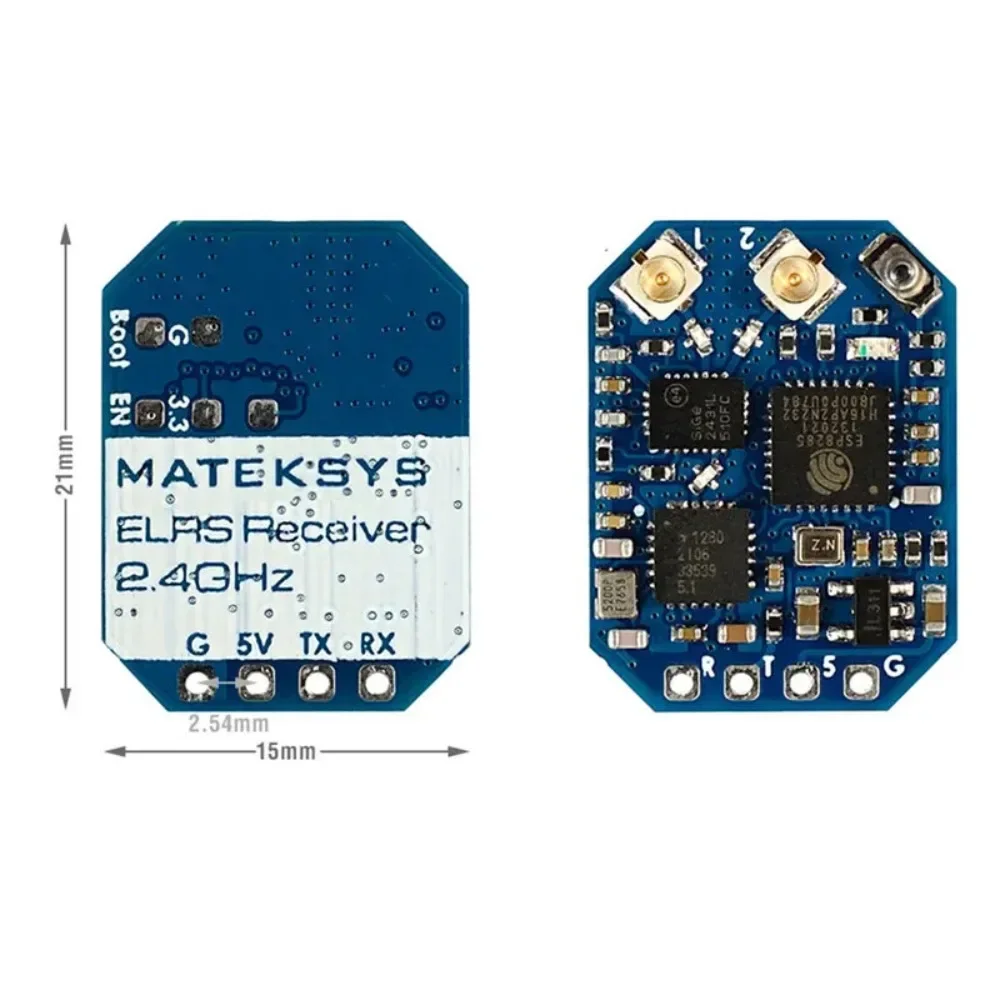

PCB size: 21mm x 15mm
-
Weight: 3g w/ 2x antennas
-

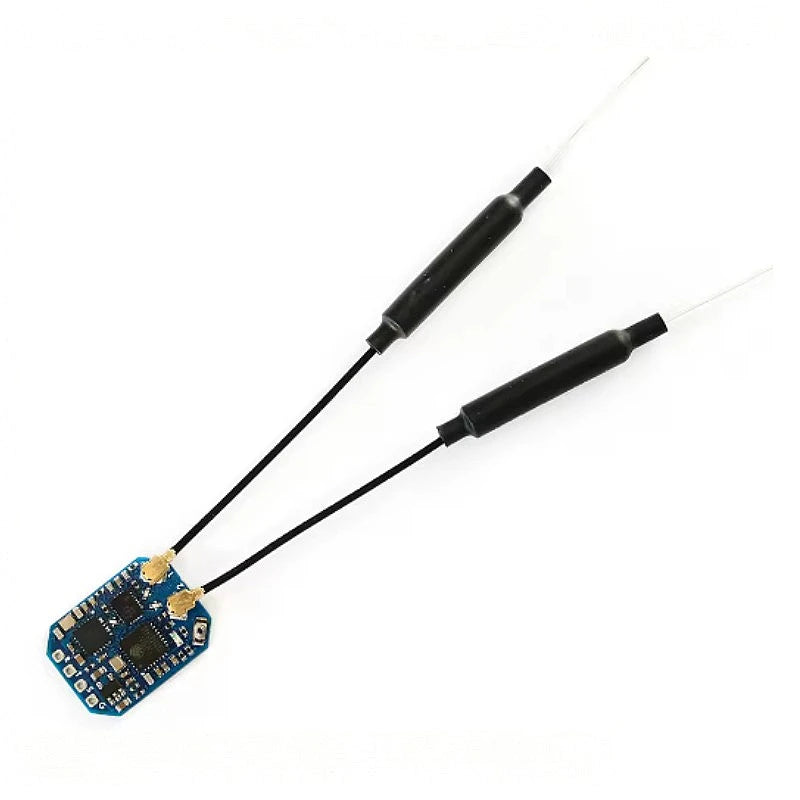

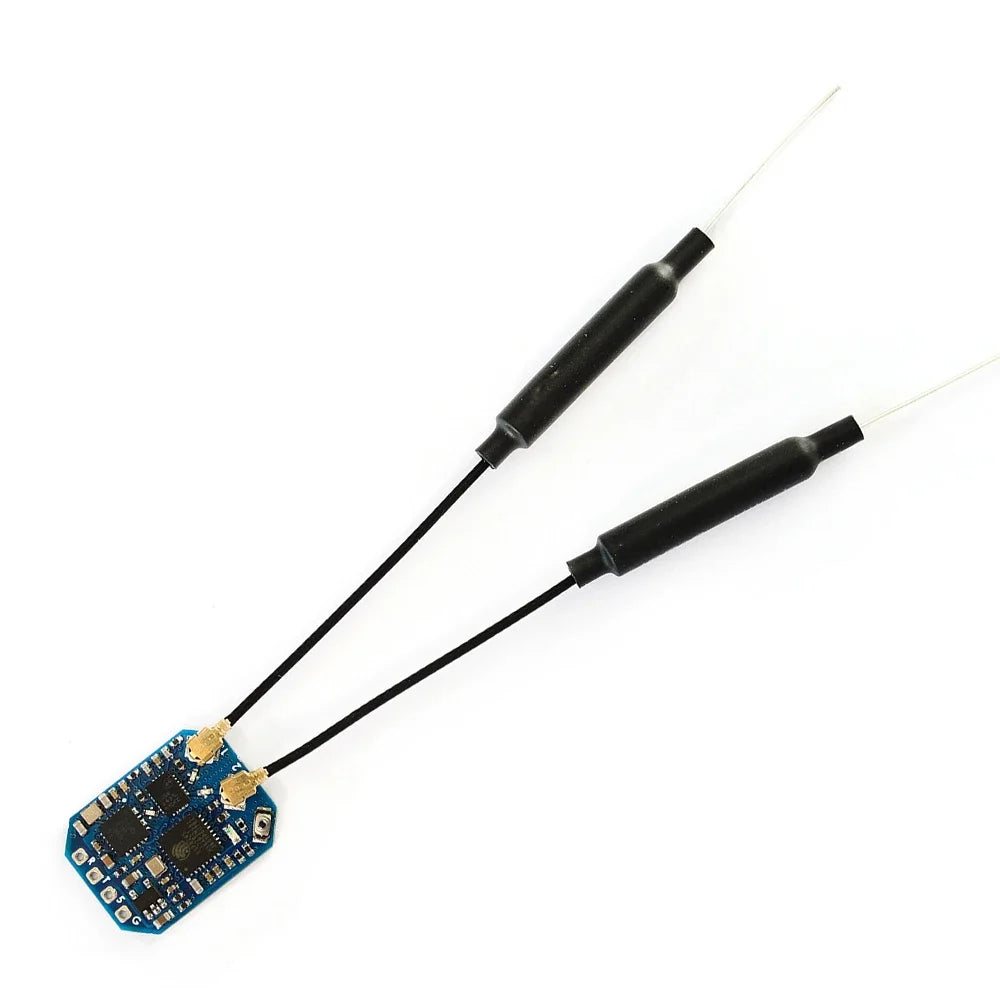

Packing: 1x ELRS-R24-D, 2x IPEX MHF1 Antennas
Firmwares
-
ExpressLRS MATEK_2400_RX
-
ELRS-R24-D: enable "USE_DIVERSITY" (checked) when flashing in ExpressLRS configurator
