SPECIFICATIONS

Brand Name: RADIOMASTER

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: RadioMaster ER5C V2

Origin: Mainland China

RC Parts & Accs: RECEIVERS

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: Adapter

Use: Vehicles & Remote Control Toys

Wheelbase: Upper Shell

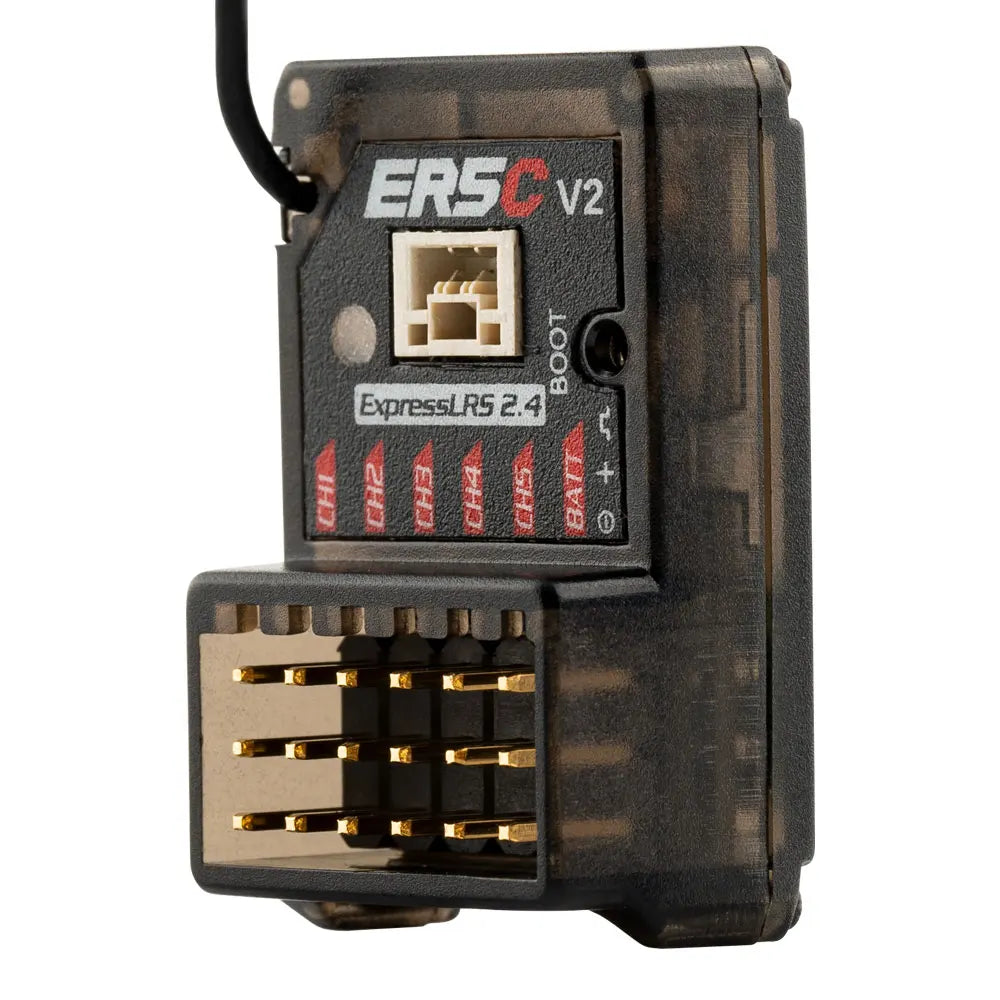

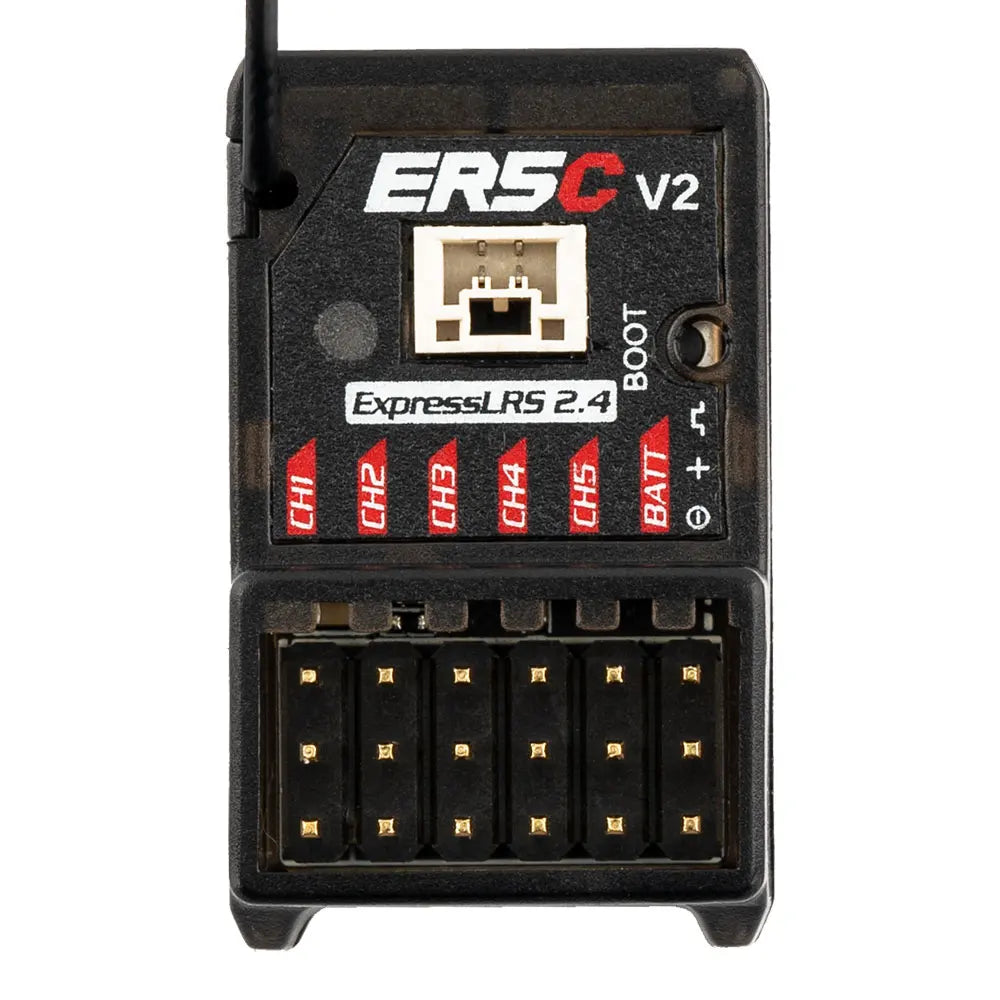

ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability,
highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry
with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Feature

• Based on the Revolutionary ExpressLRS System

• High performance, high reliability, flexible configuration, fast response speed and ultra-long range

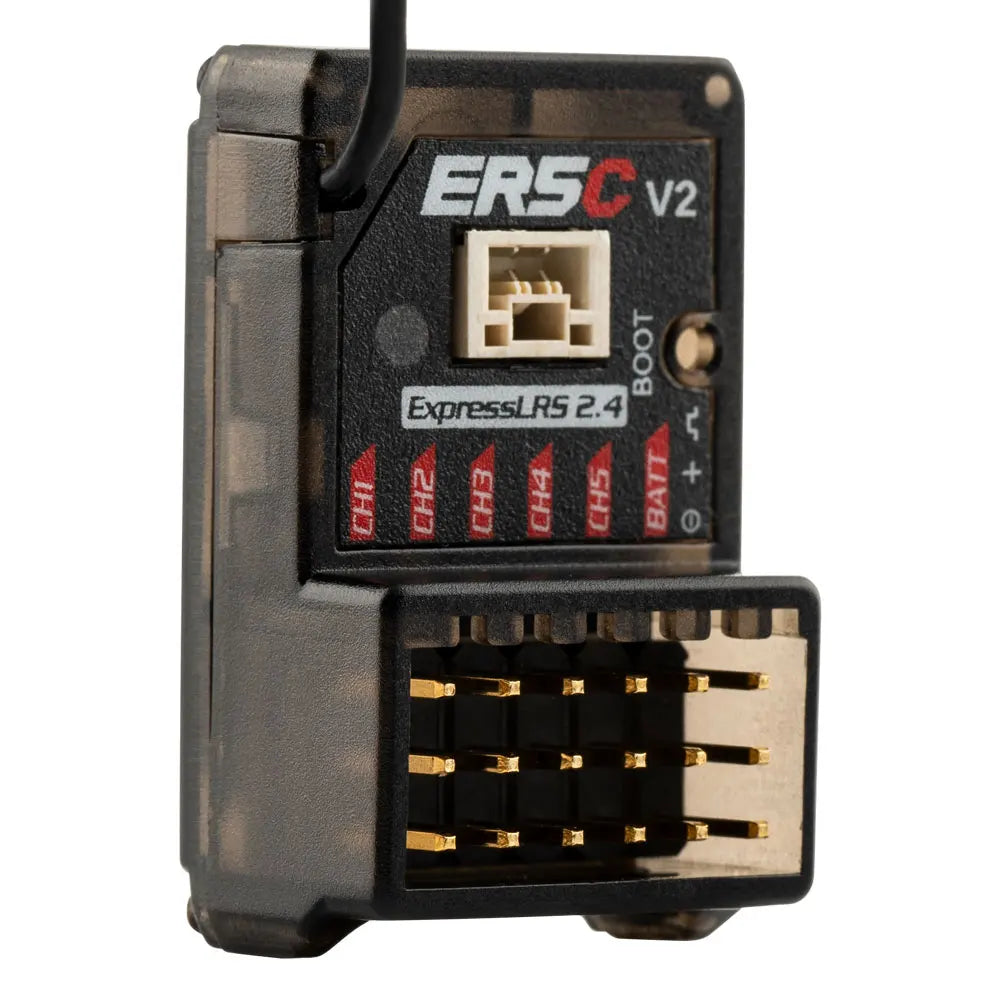

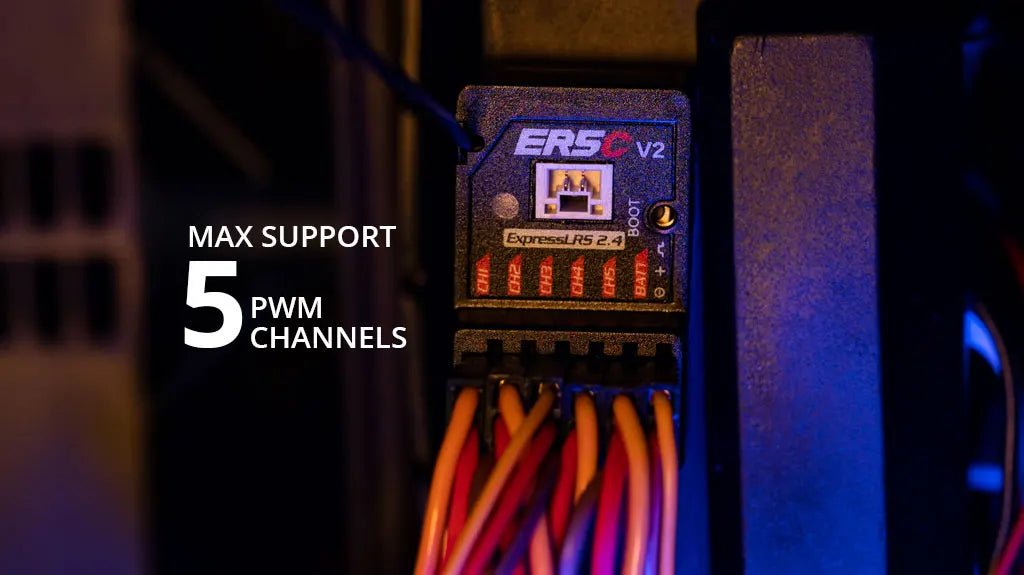

• Support 5 PWM Channels

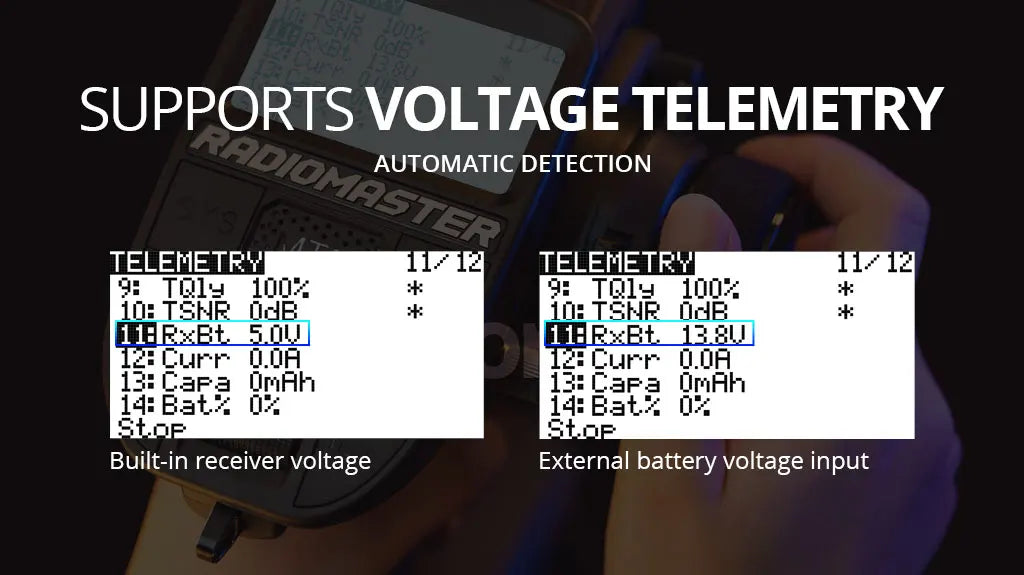

• Automatically detects voltage telemetry
  of external battery voltage or receiver battery /ESC BEC voltage

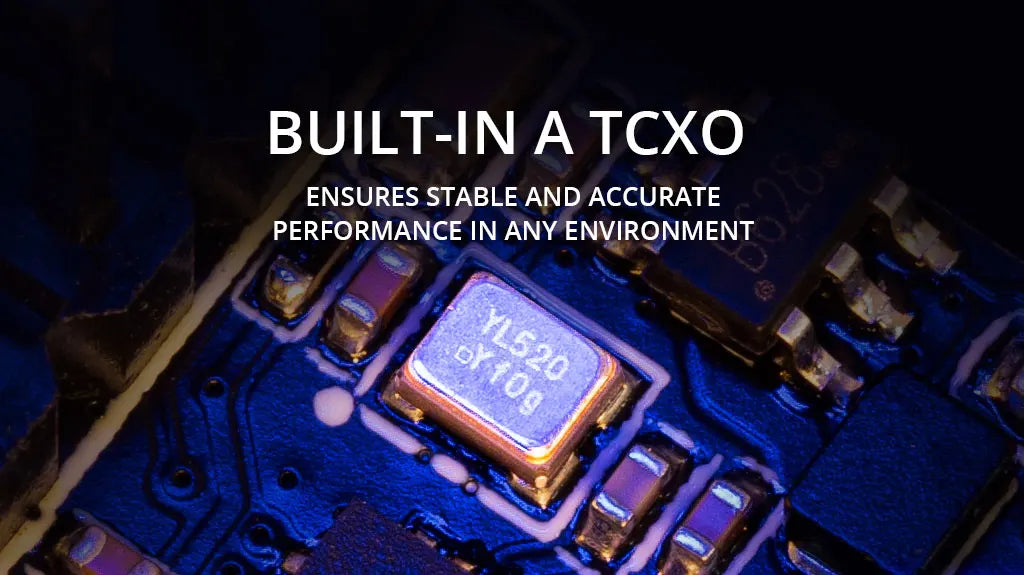

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any
  environment

• Optimized ground up PCB design

• Supports Wi-Fi updates and WEBUI configuration

• Compact size, easy to install. Perfect for surface & marine R/C applications

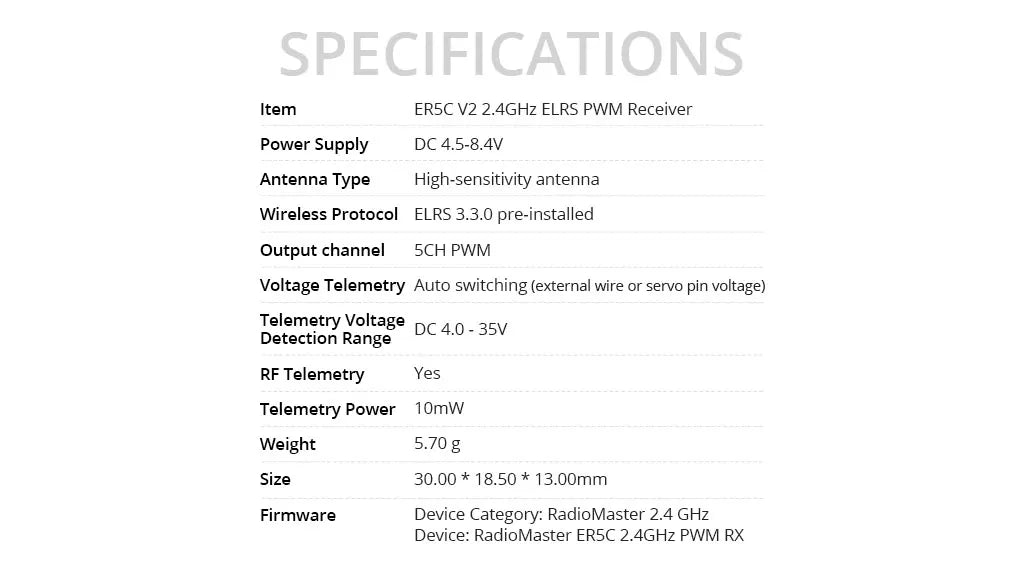

Specifications

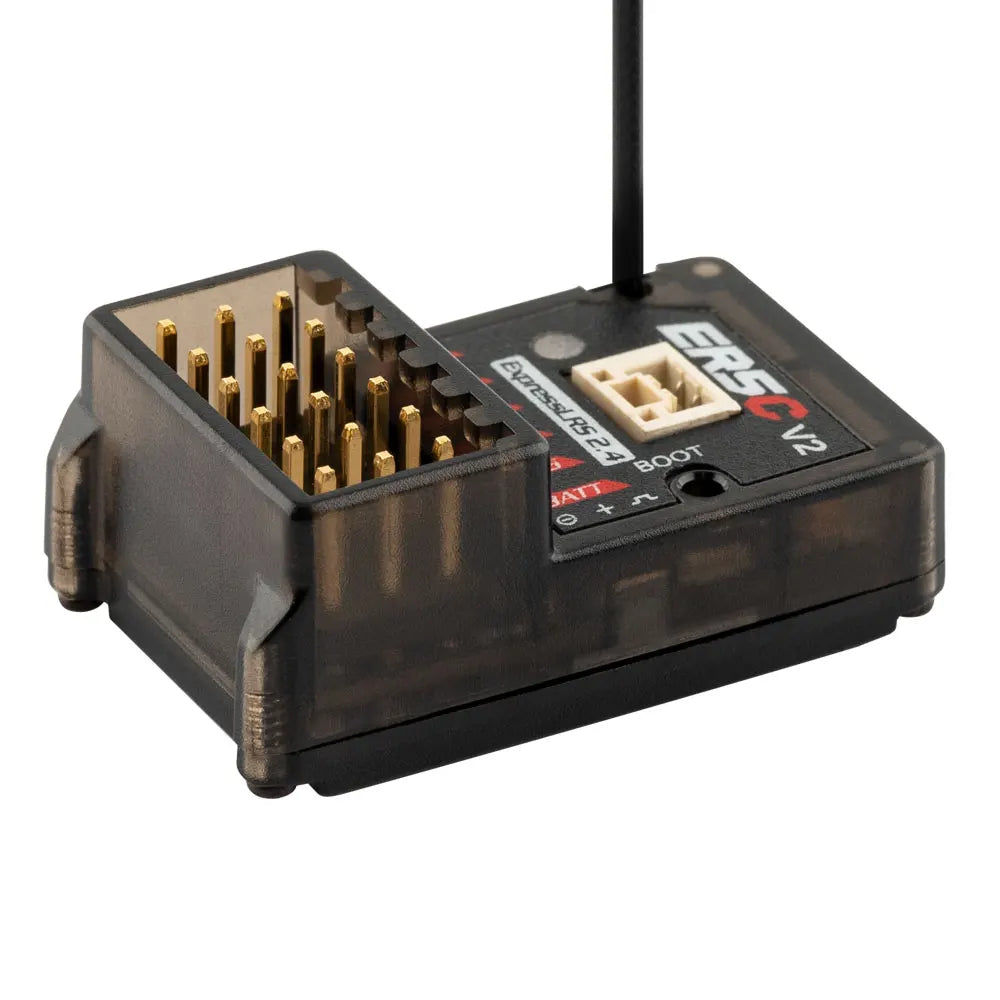

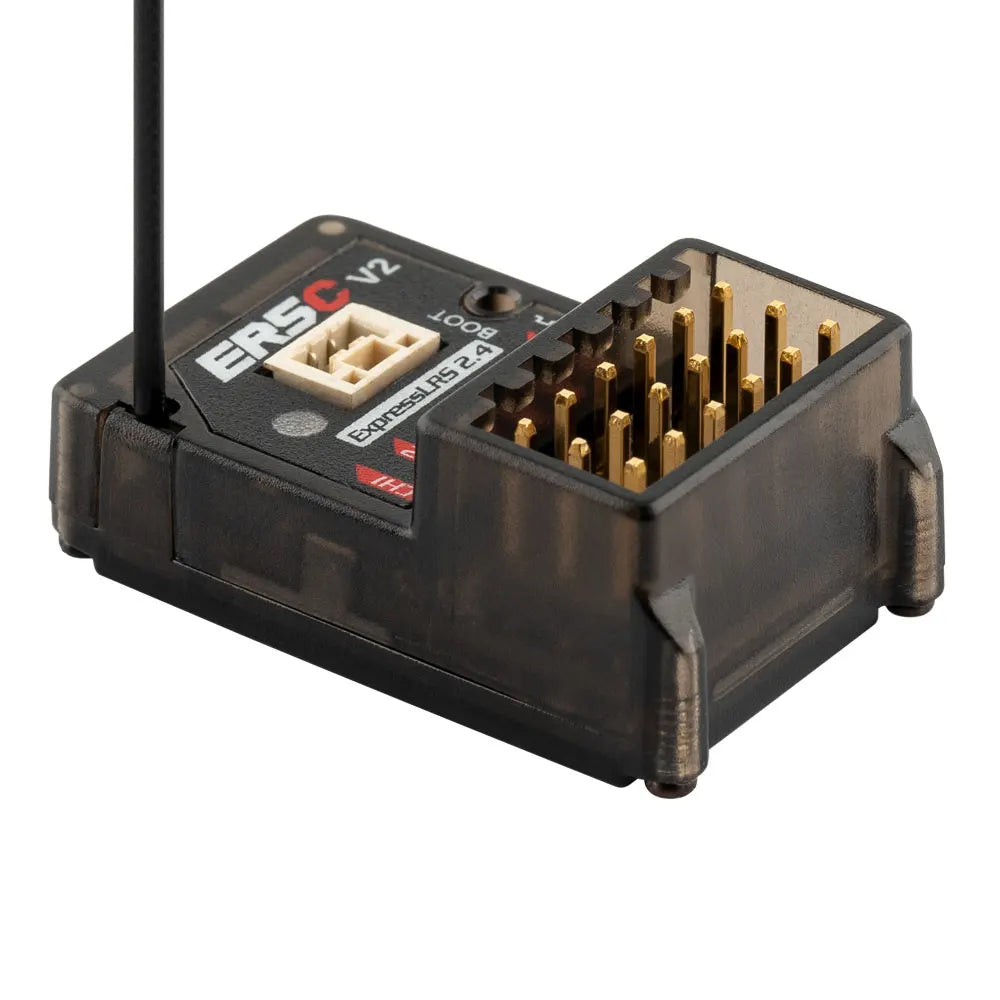

• Item: ER5C V2 2.4GHz ELRS PWM Receiver

• Power supply: DC 4.5-8.4V

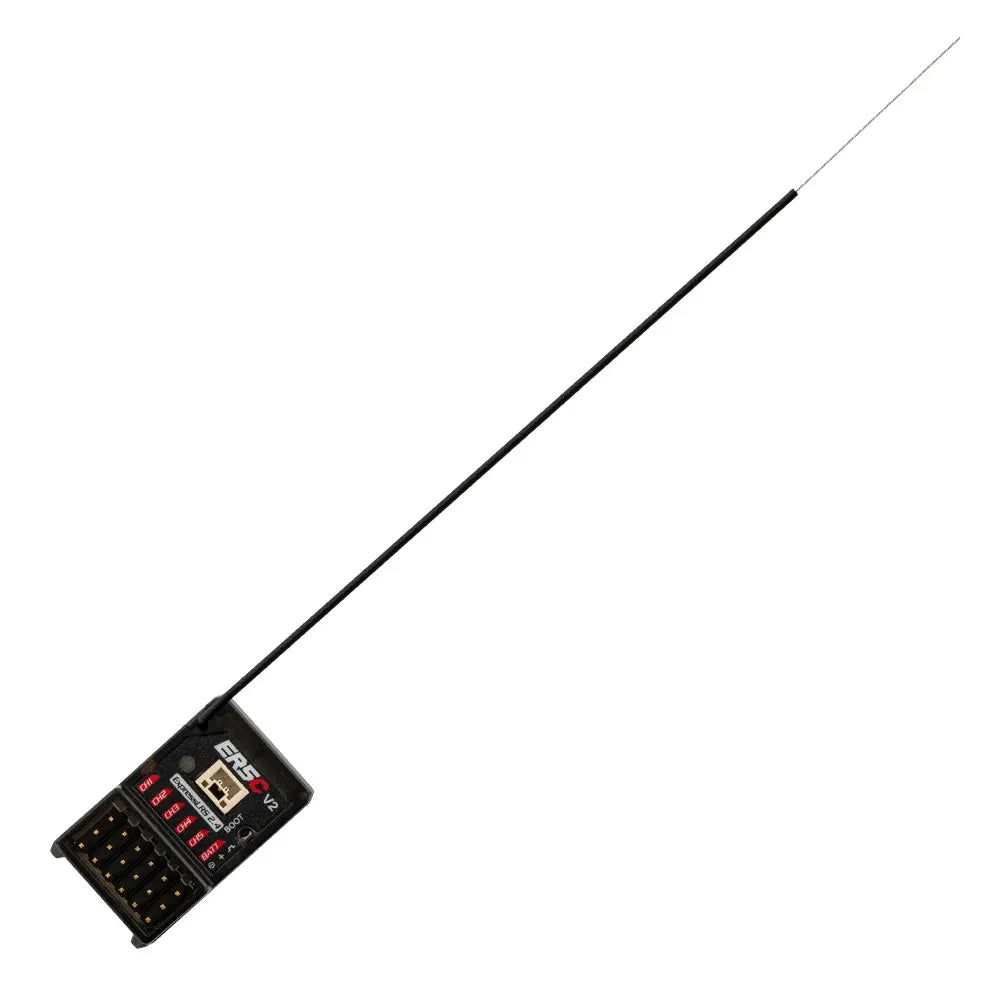

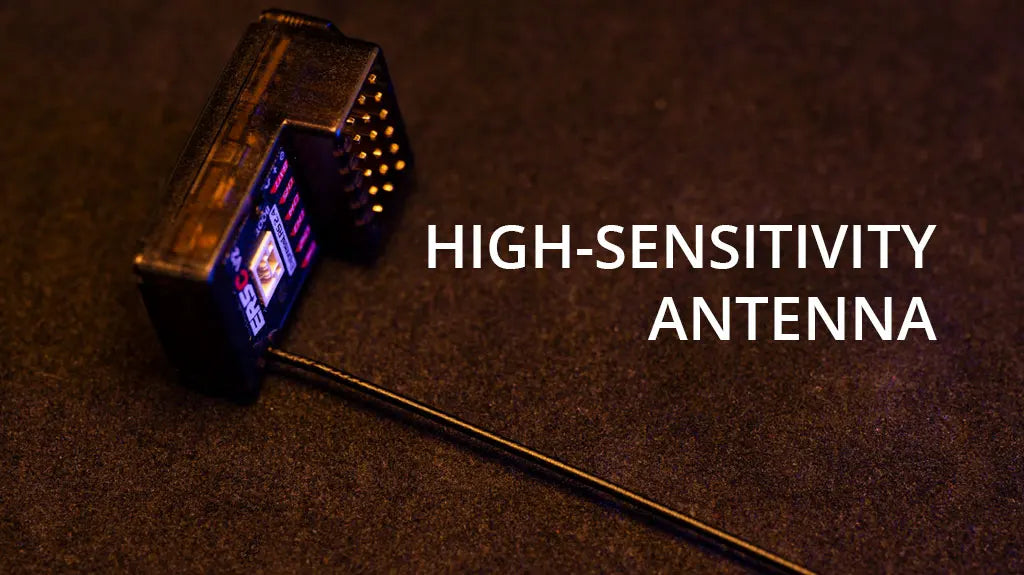

• Antenna type: High-sensitivity antenna

• Wireless Protocol: ELRS 3.3.0
  pre-installed

• Channels: 5

• Telemetry Voltage Detection Range: DC
  4.0 - 35V

• RF Telemetry: Yes

• Telemetry Power: 10mw

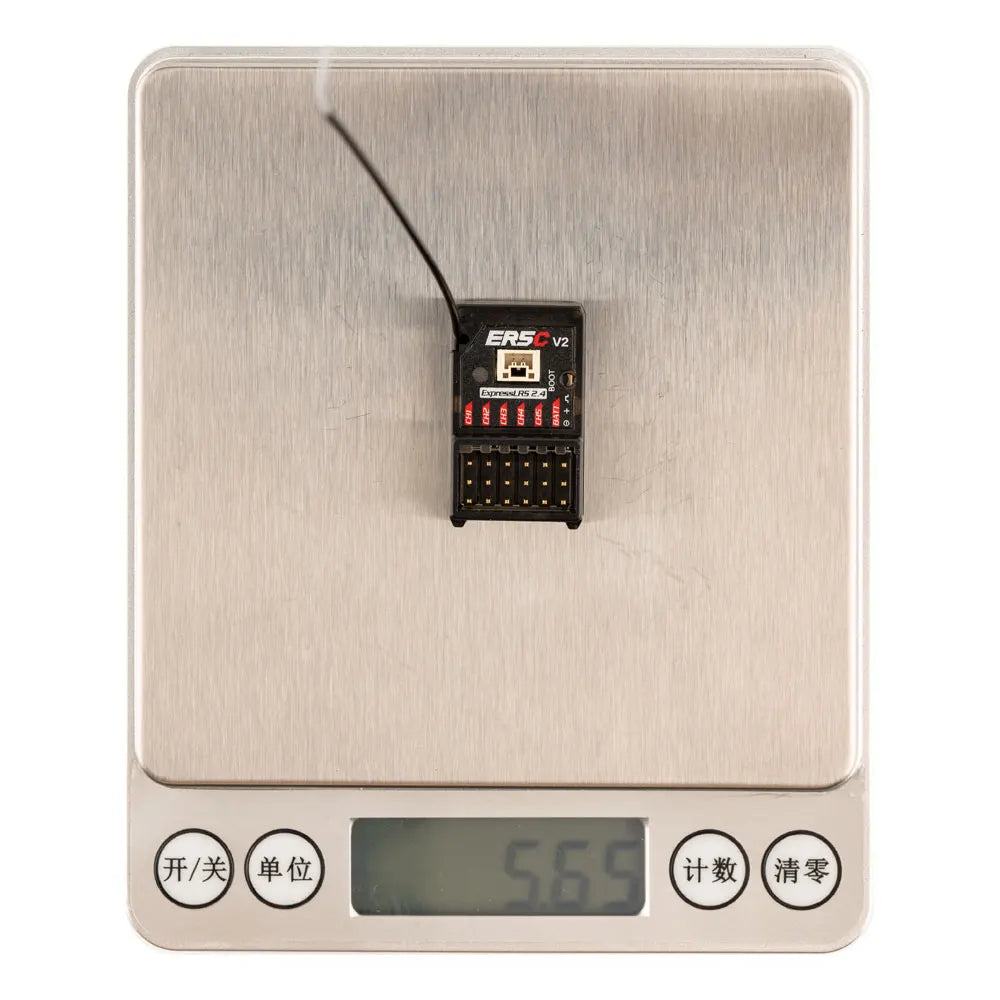

• Weight: 5.7 grams

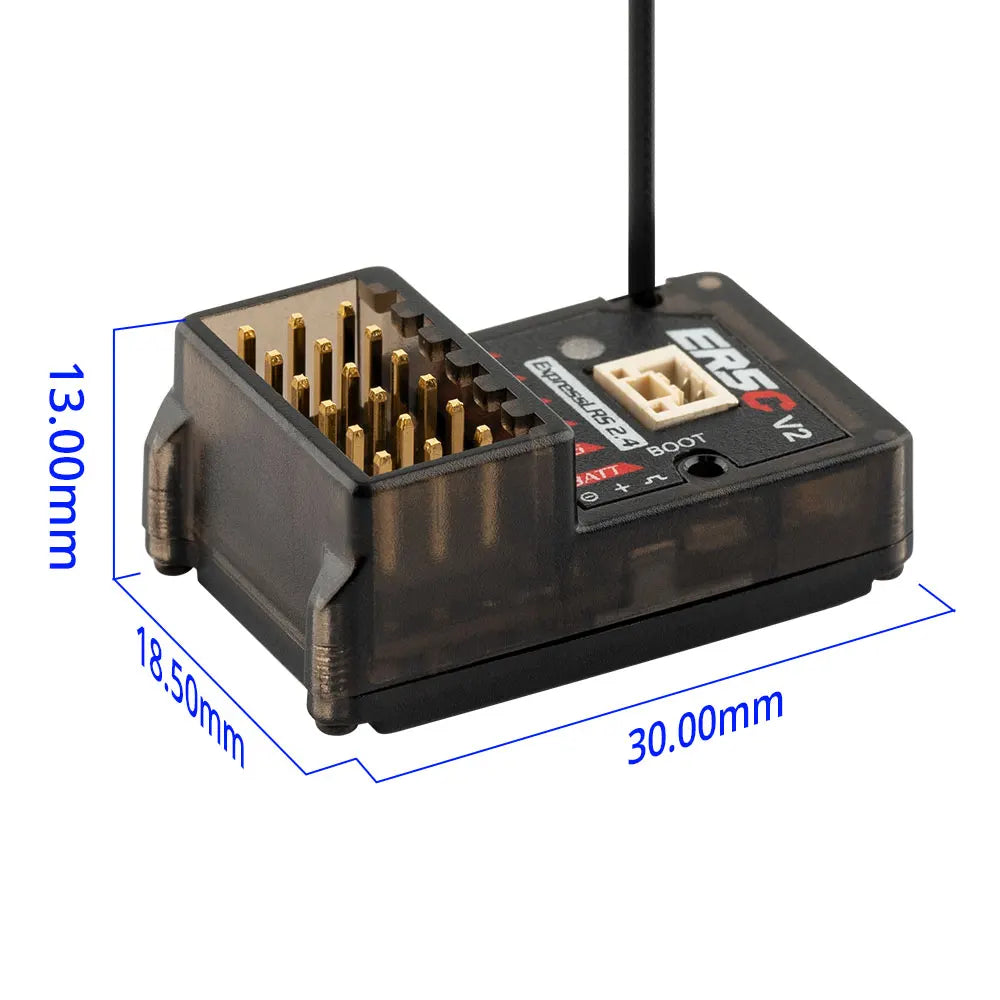

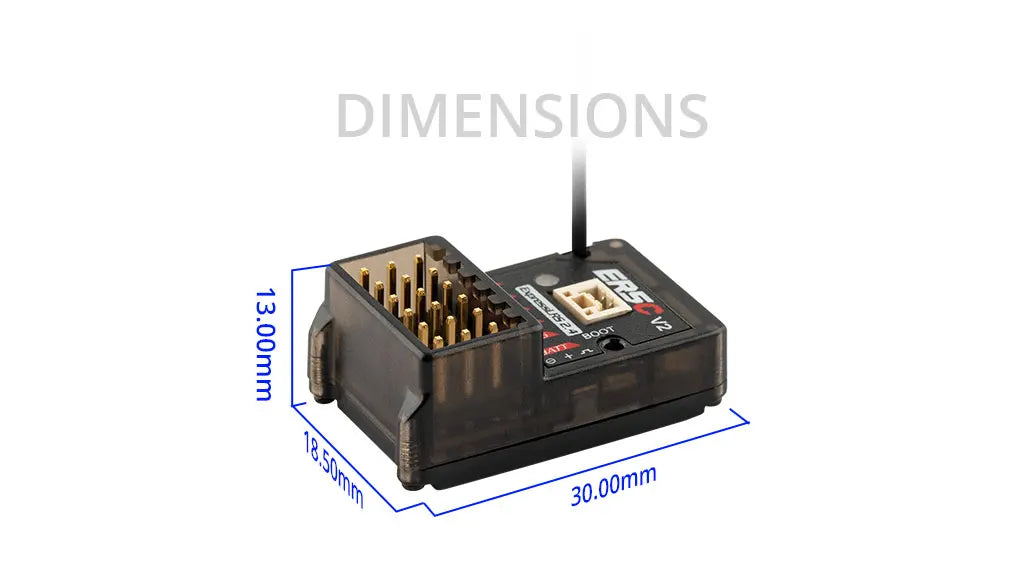

• Size: 30.0 * 18.5 * 13.0mm

• Firmware:Device

• Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

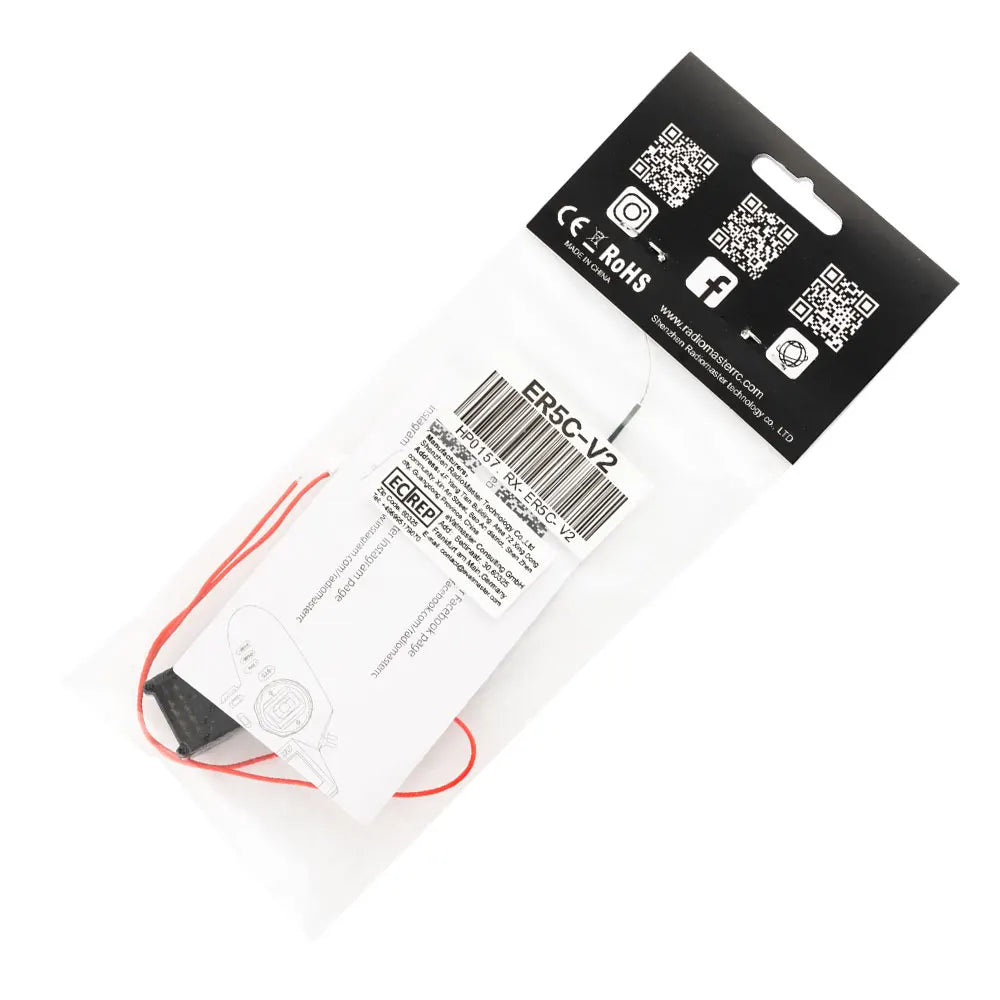

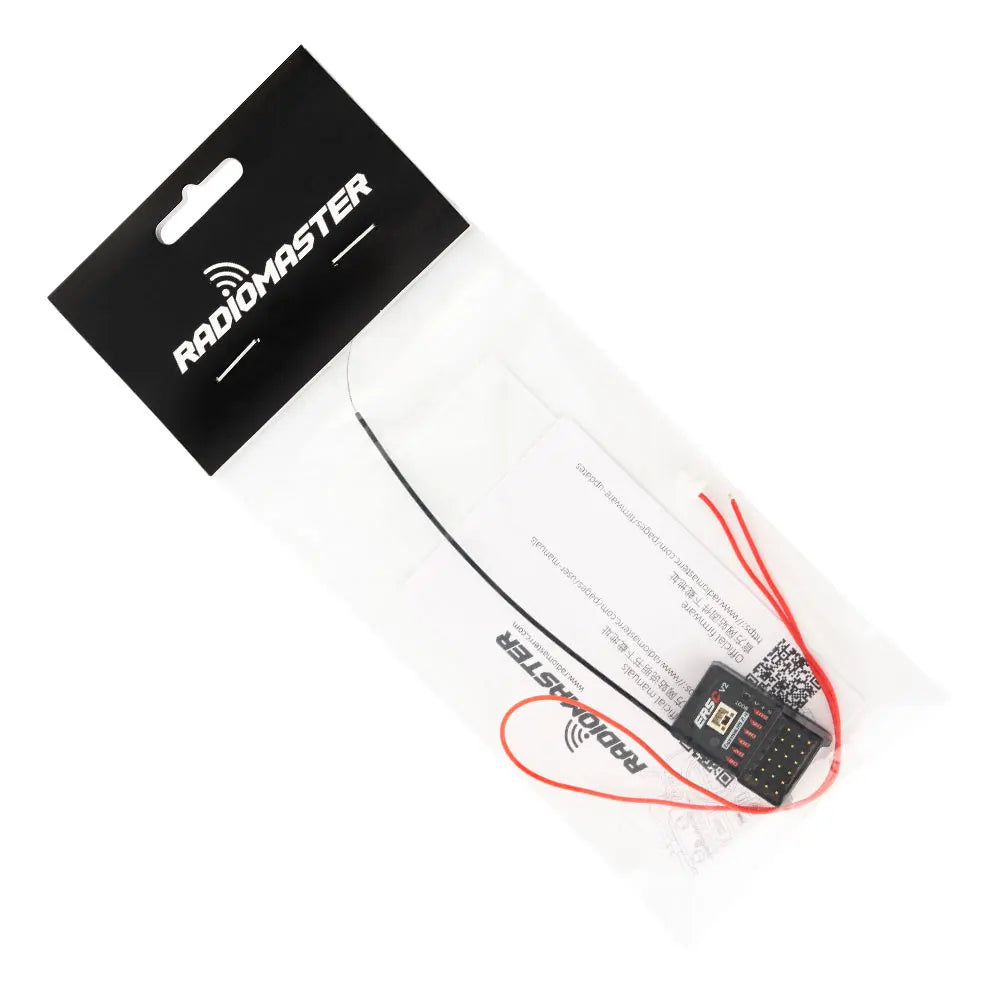

Package Including

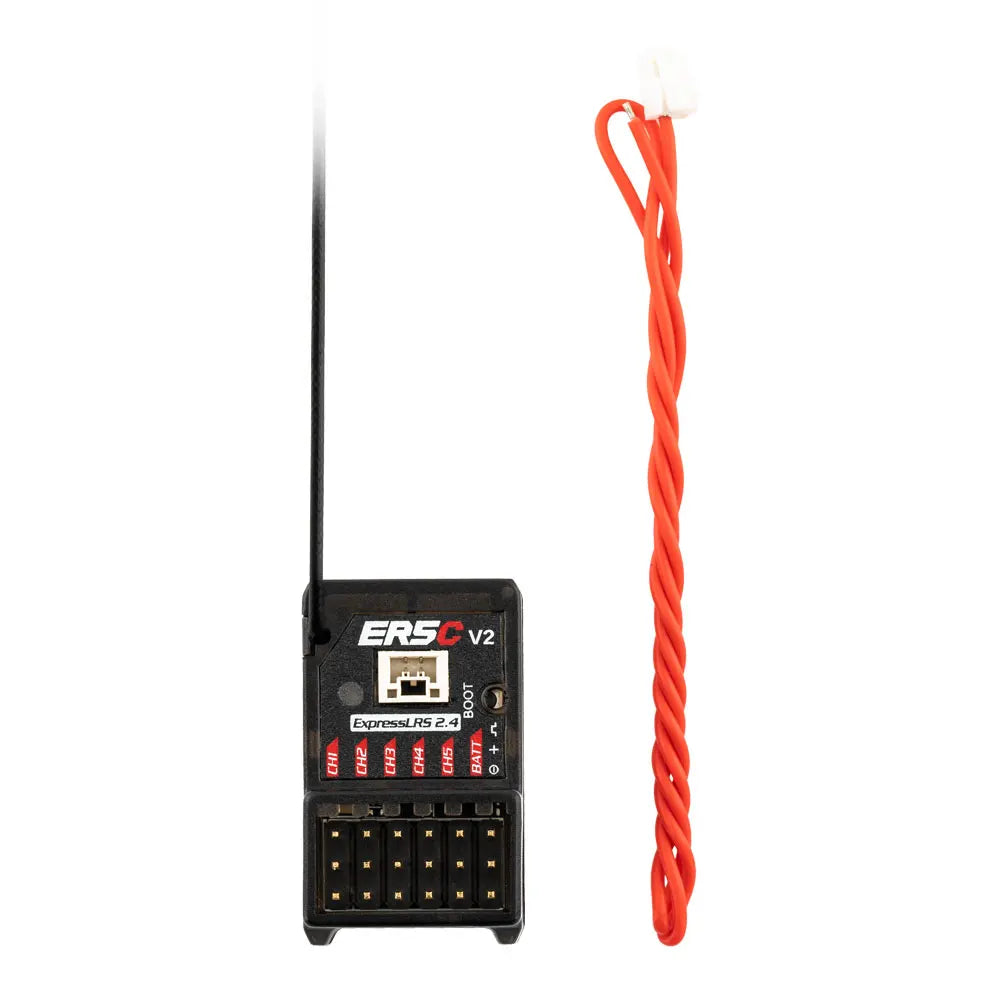

• 1 * ER5C V2 2.4GHz ELRS PWM Receiver

• 1 * Voltage telemetry wire

• 1 * User Card
