You Need to Know

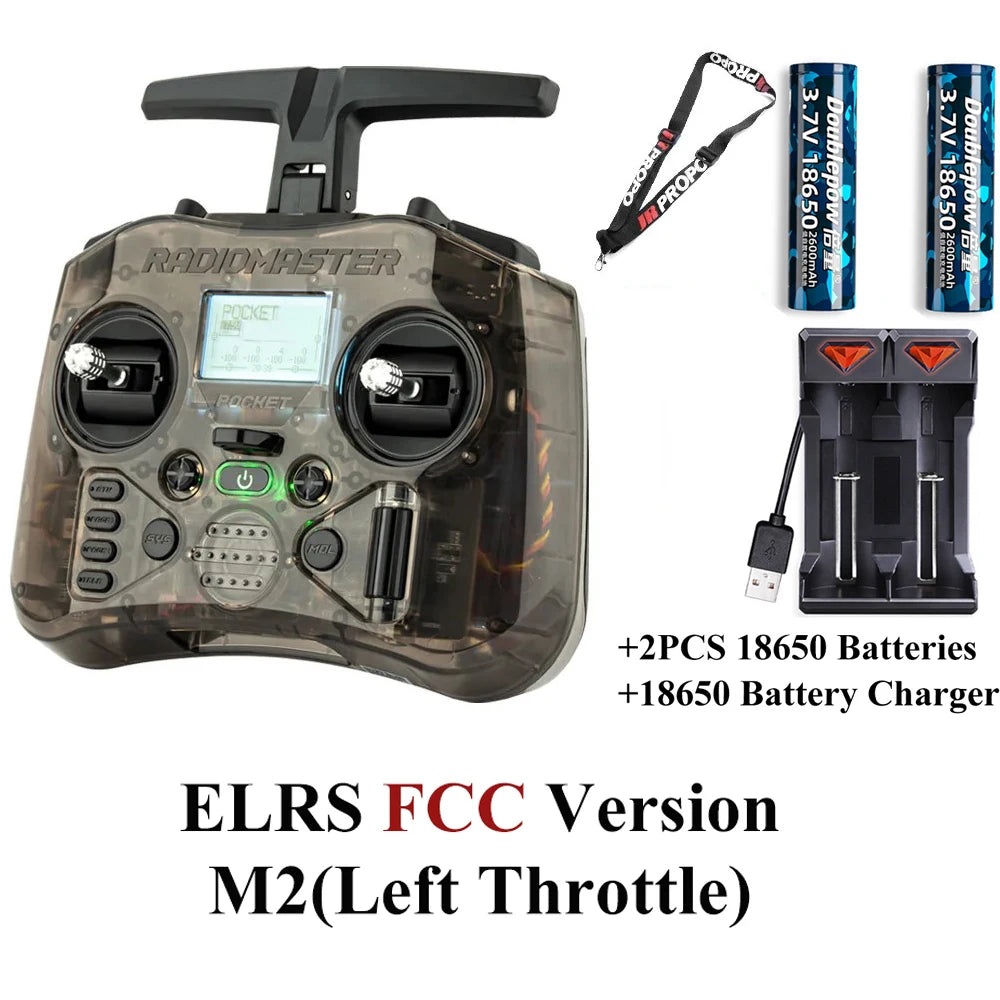

1. There are 2 certifications for all brands of remote controllers- FCC and LBT

2. FCC is American radio certification. LBT is EU radio certification.

3. Since the EU has many restrictions, the LBT version has removed many functions that do not comply with EU regulations. It is not as complete as the FCC version.

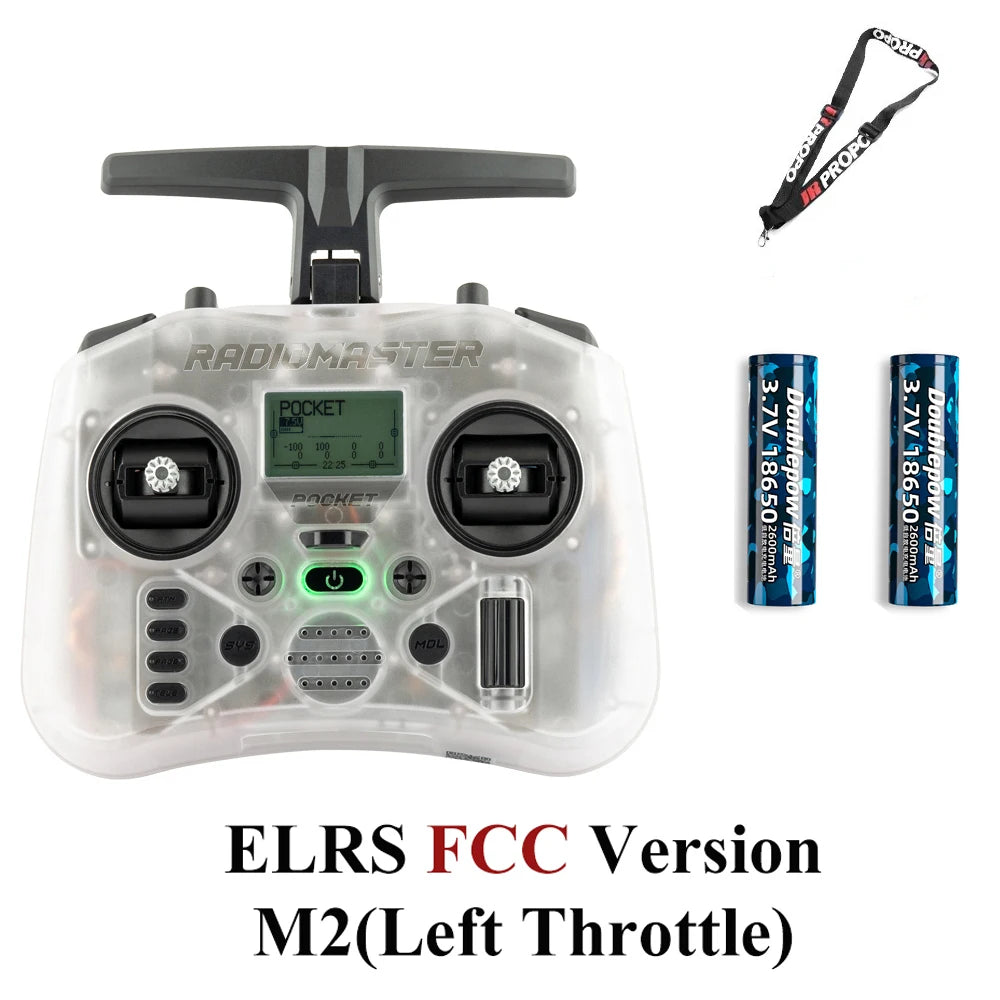

4. Outside the EU, we recommend to choose the FCC version. If you are in EU, it's better to choose LBT version.

Notes

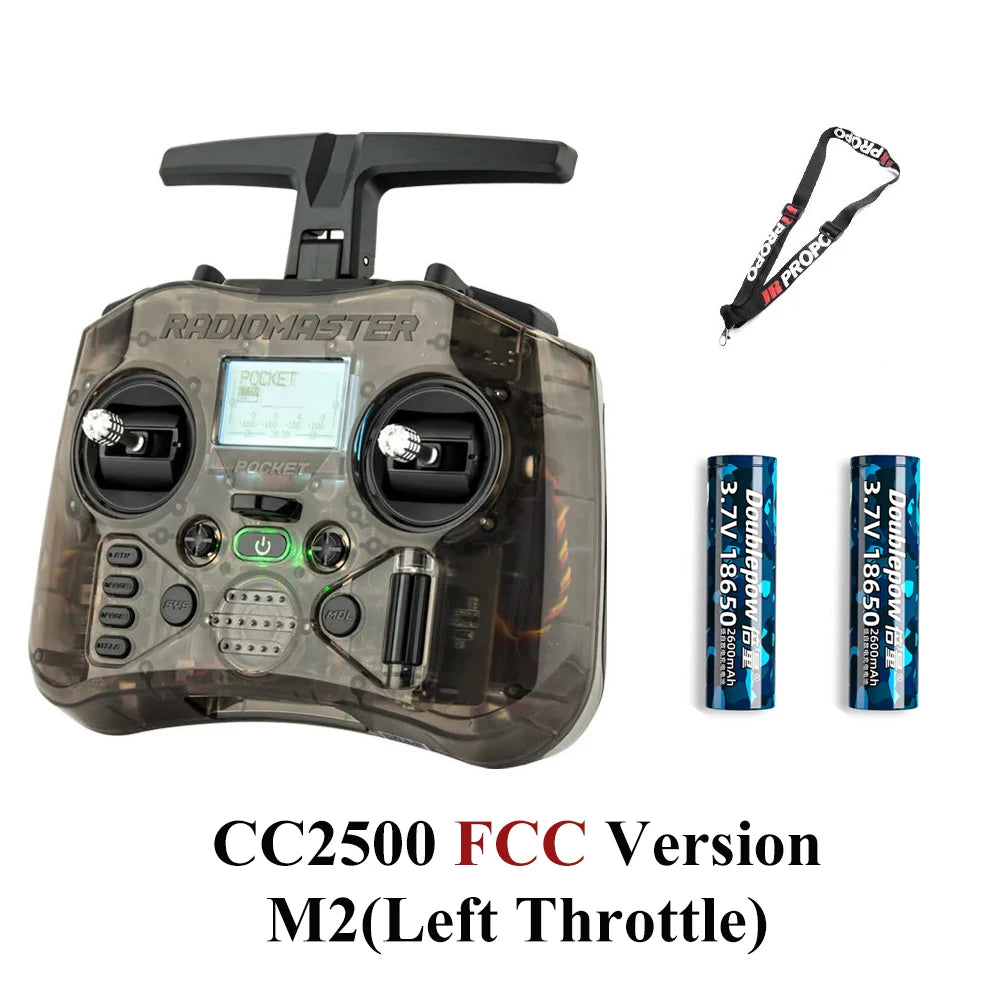

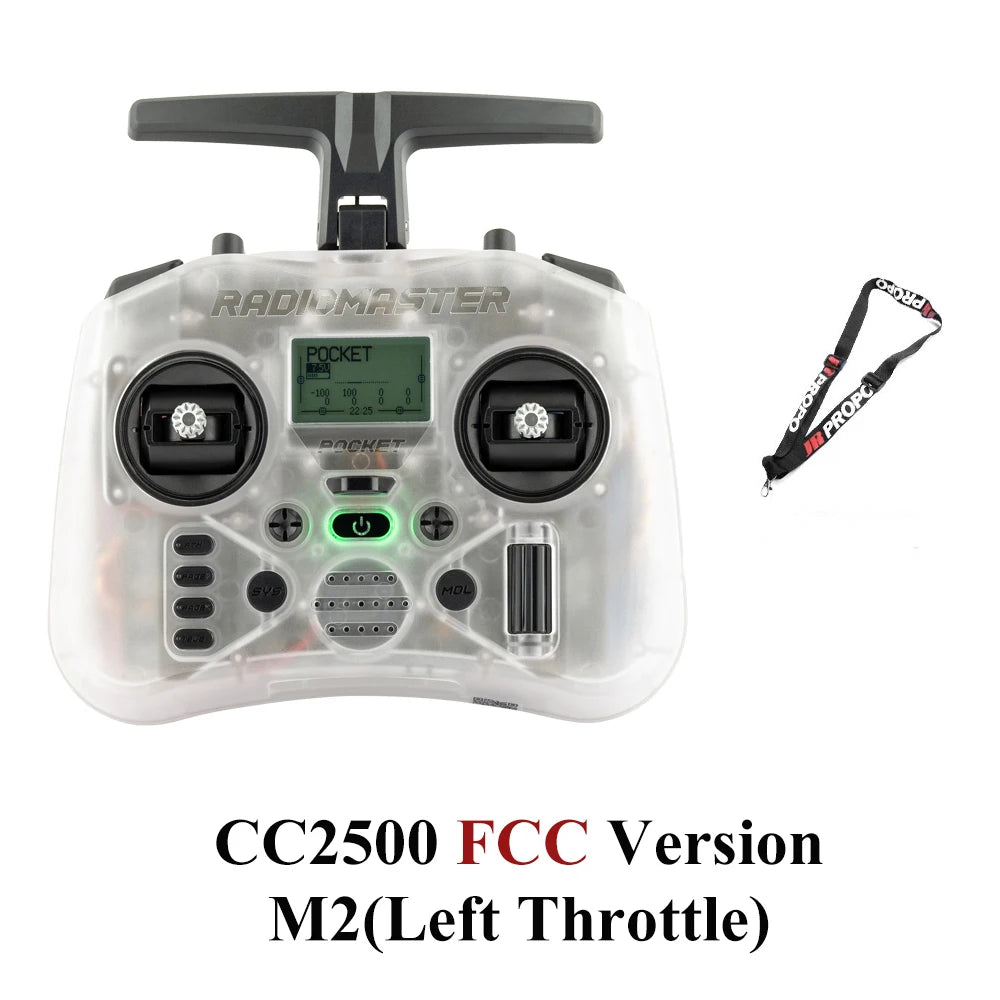

★ CC2500 (standard) Version supports all CC2500 protocols

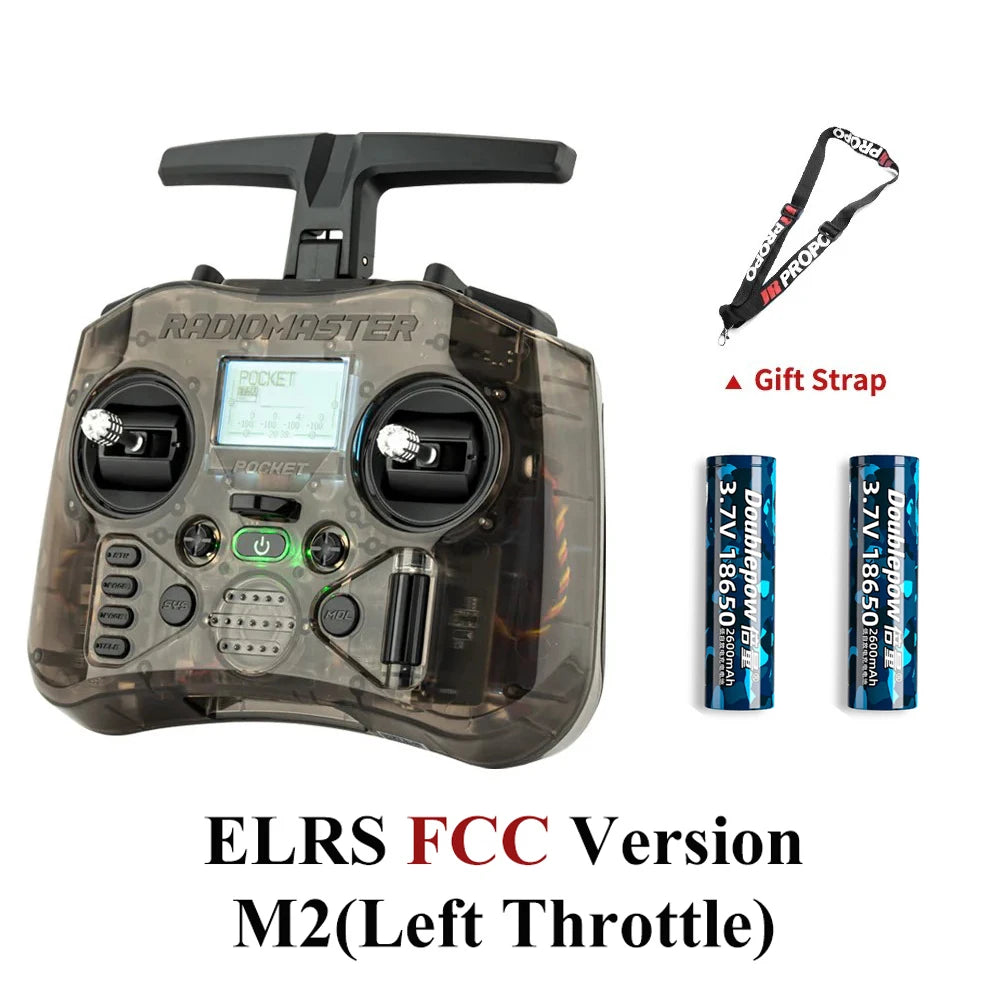

★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

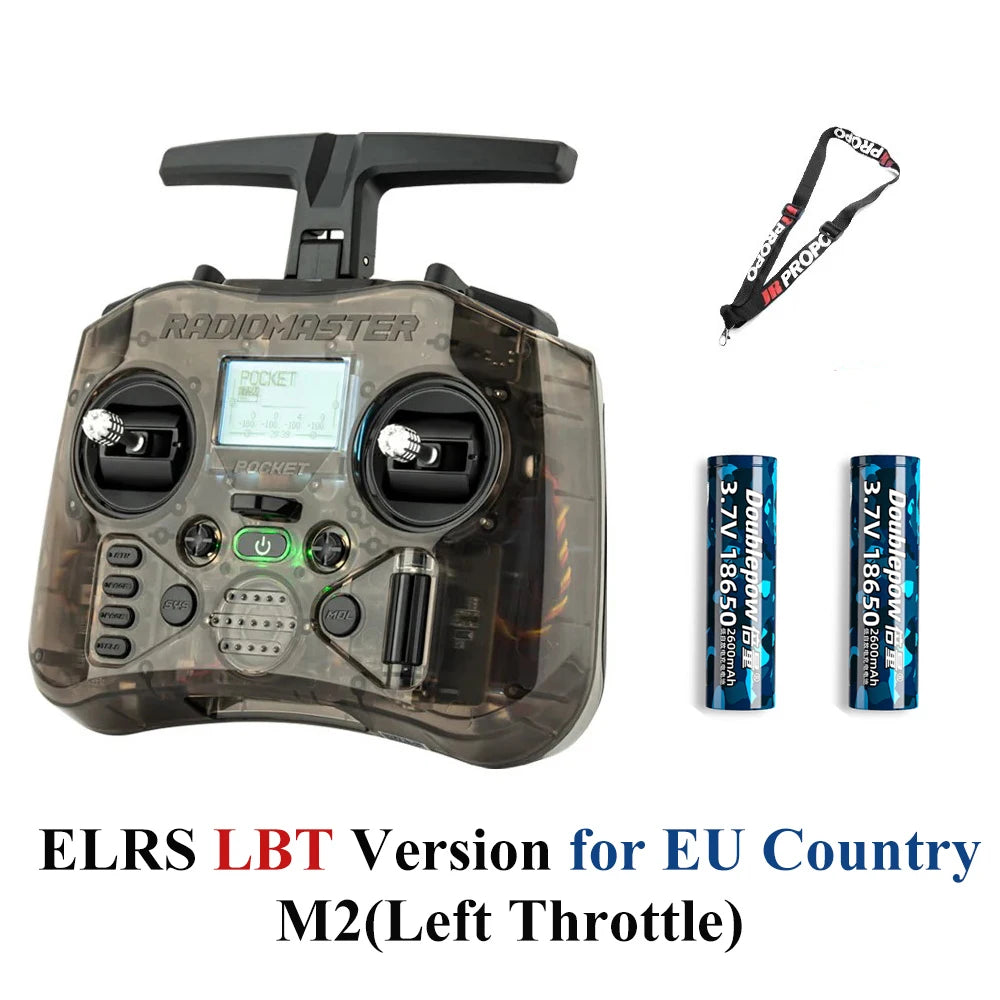

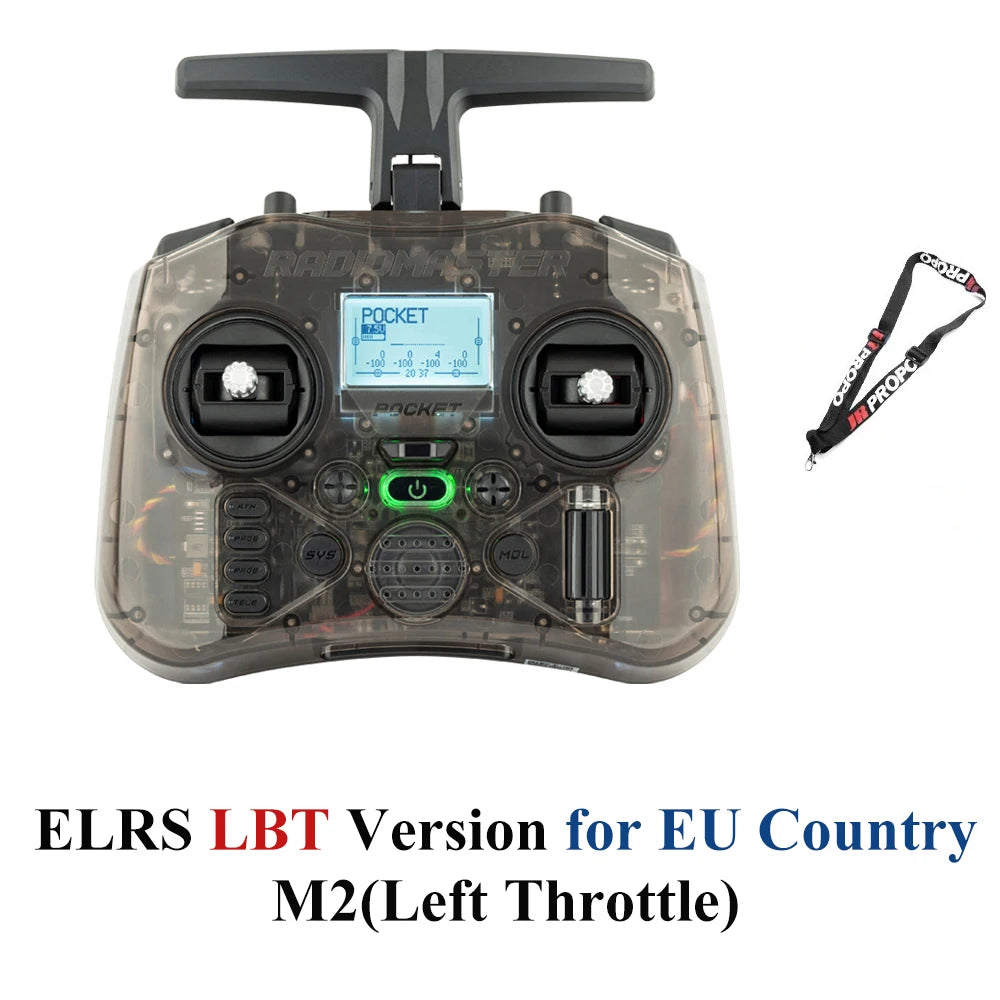

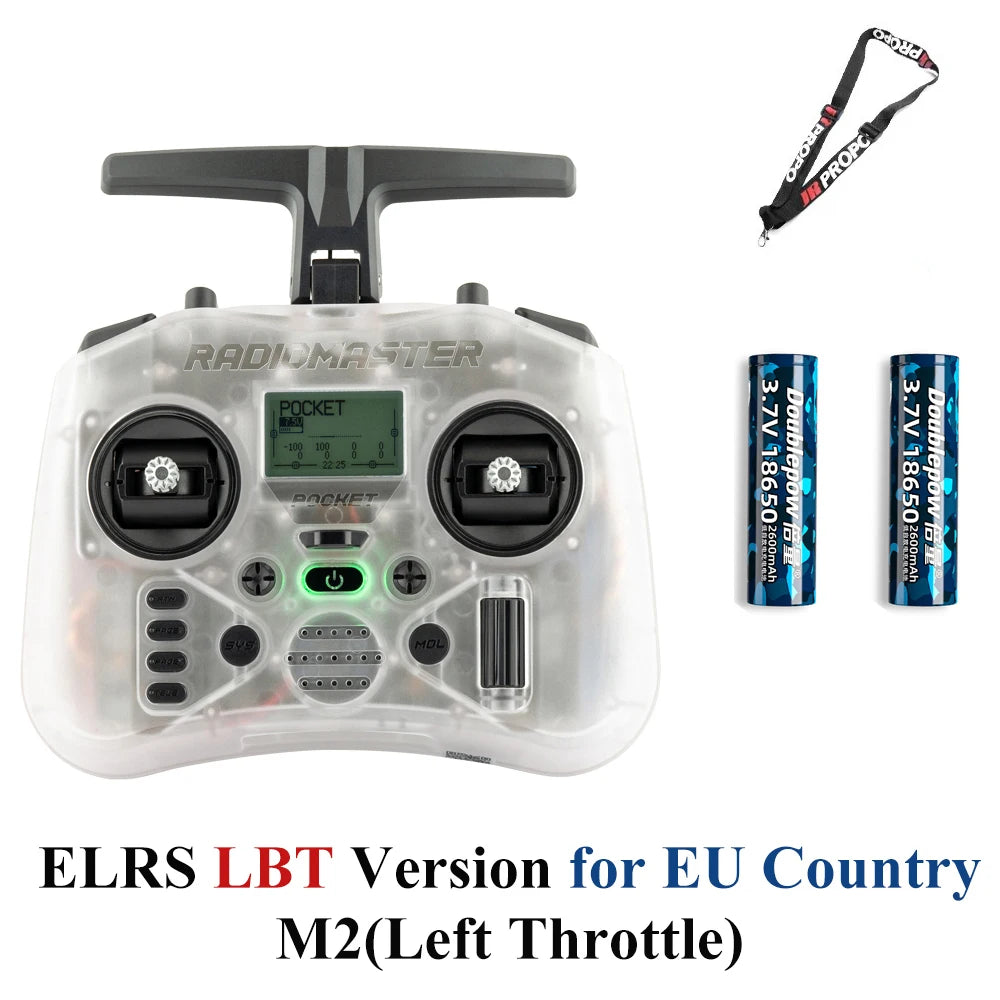

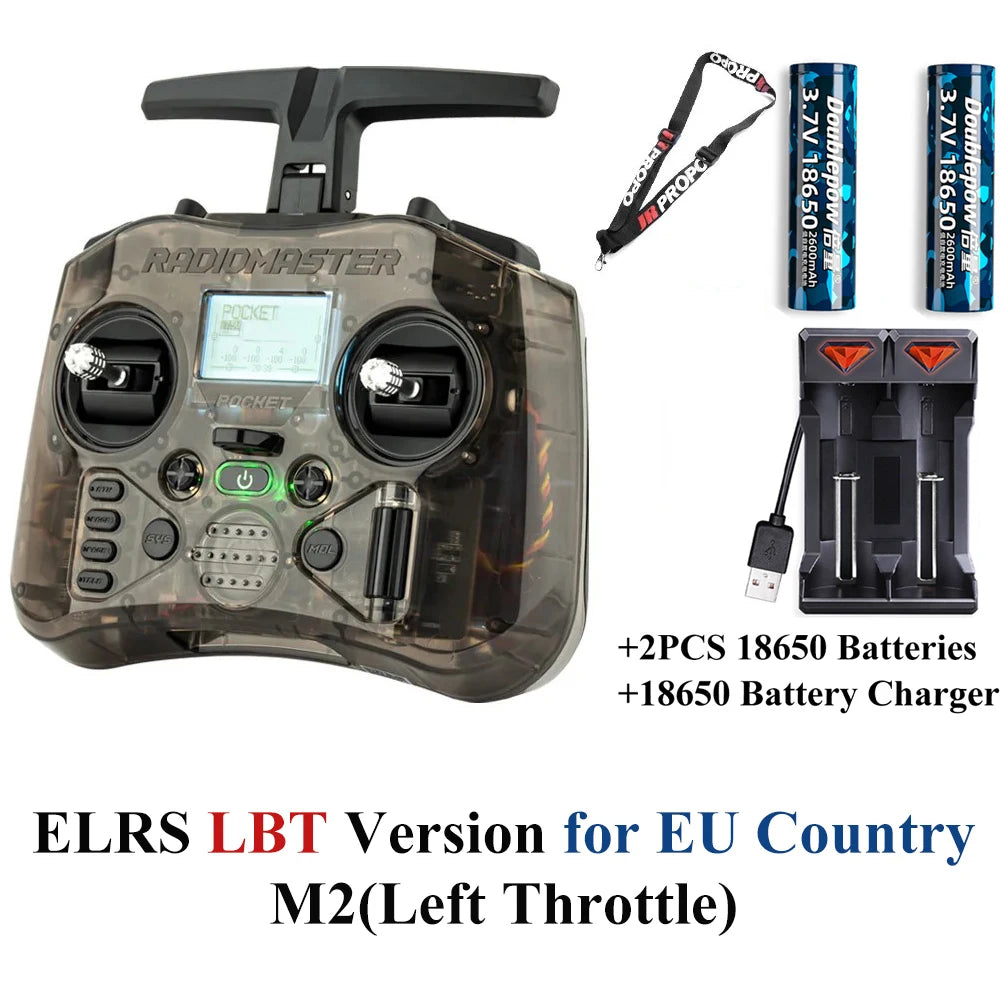

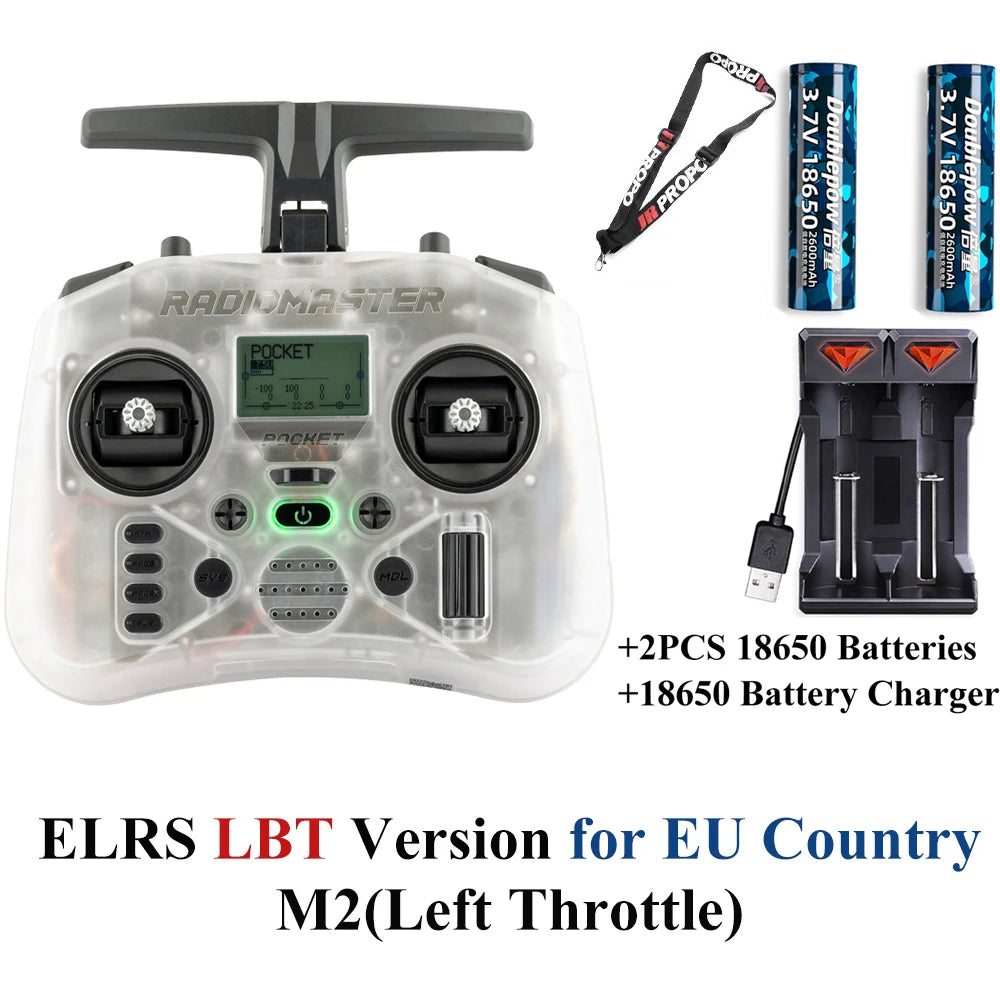

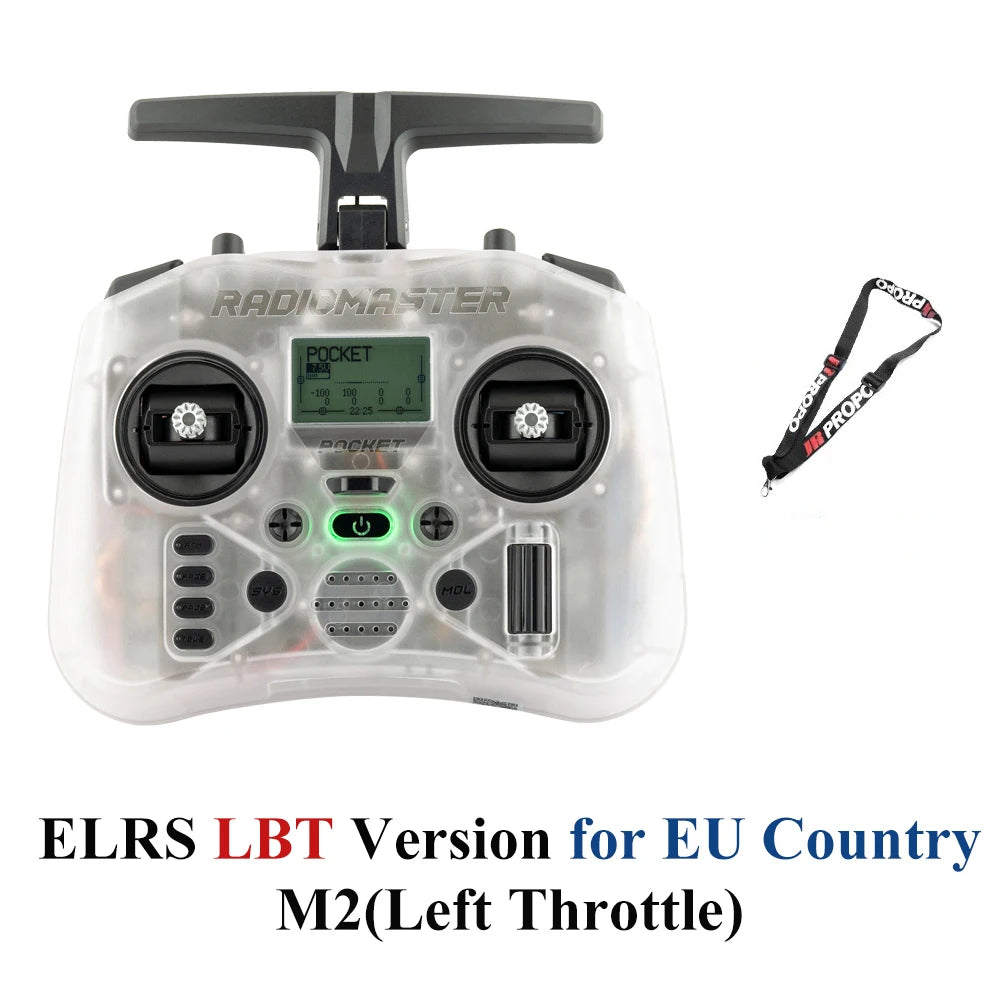

★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

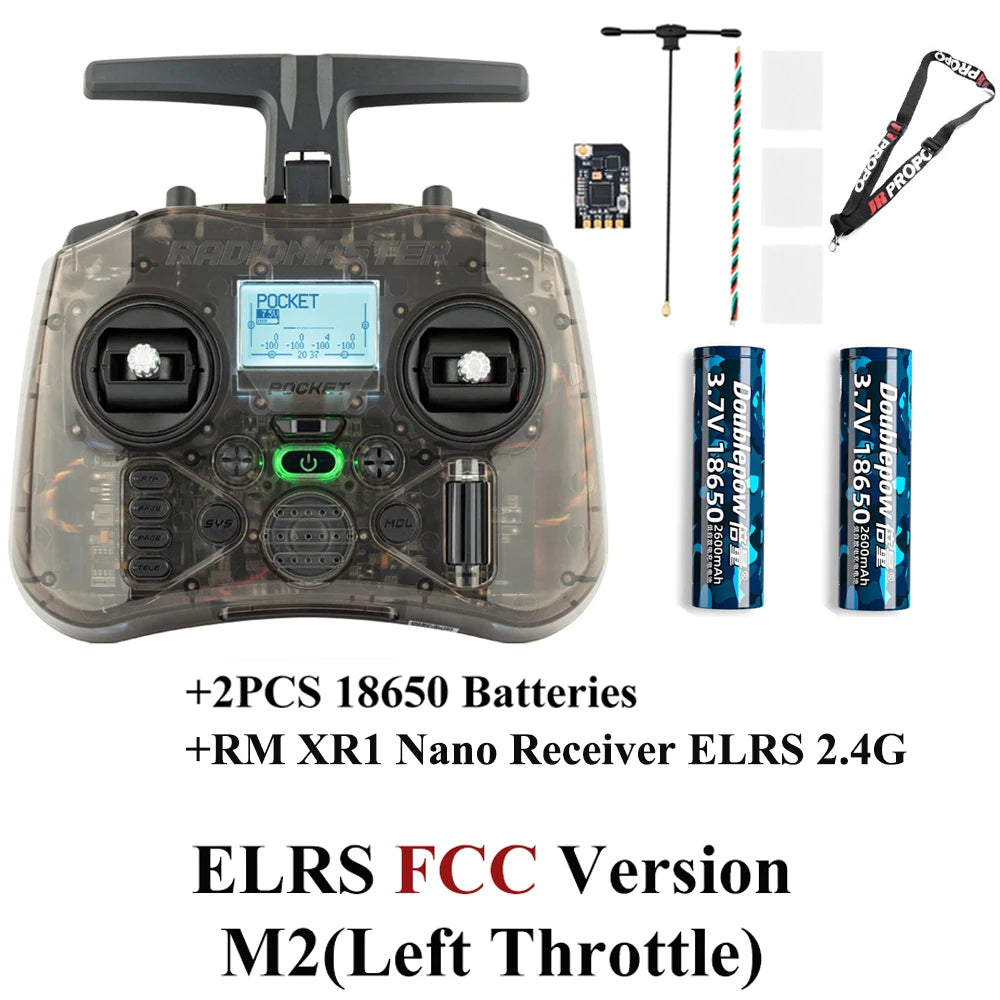

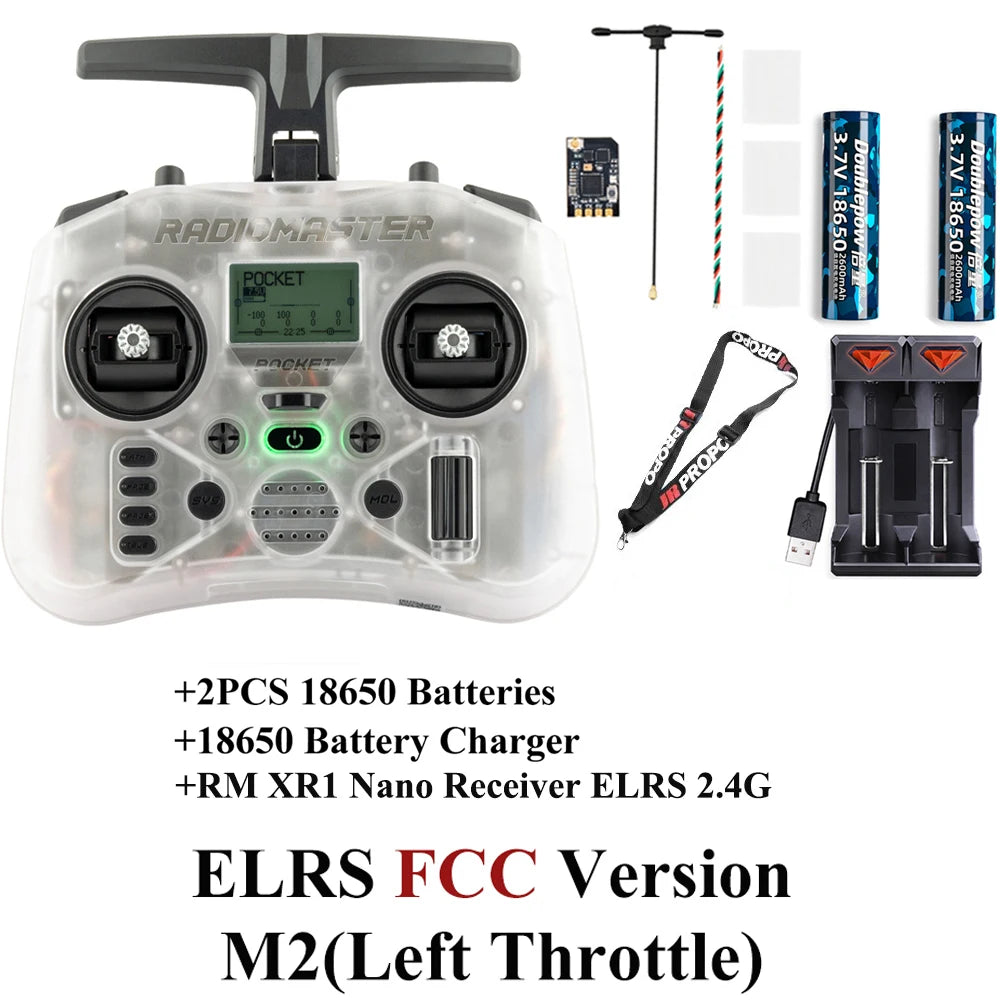

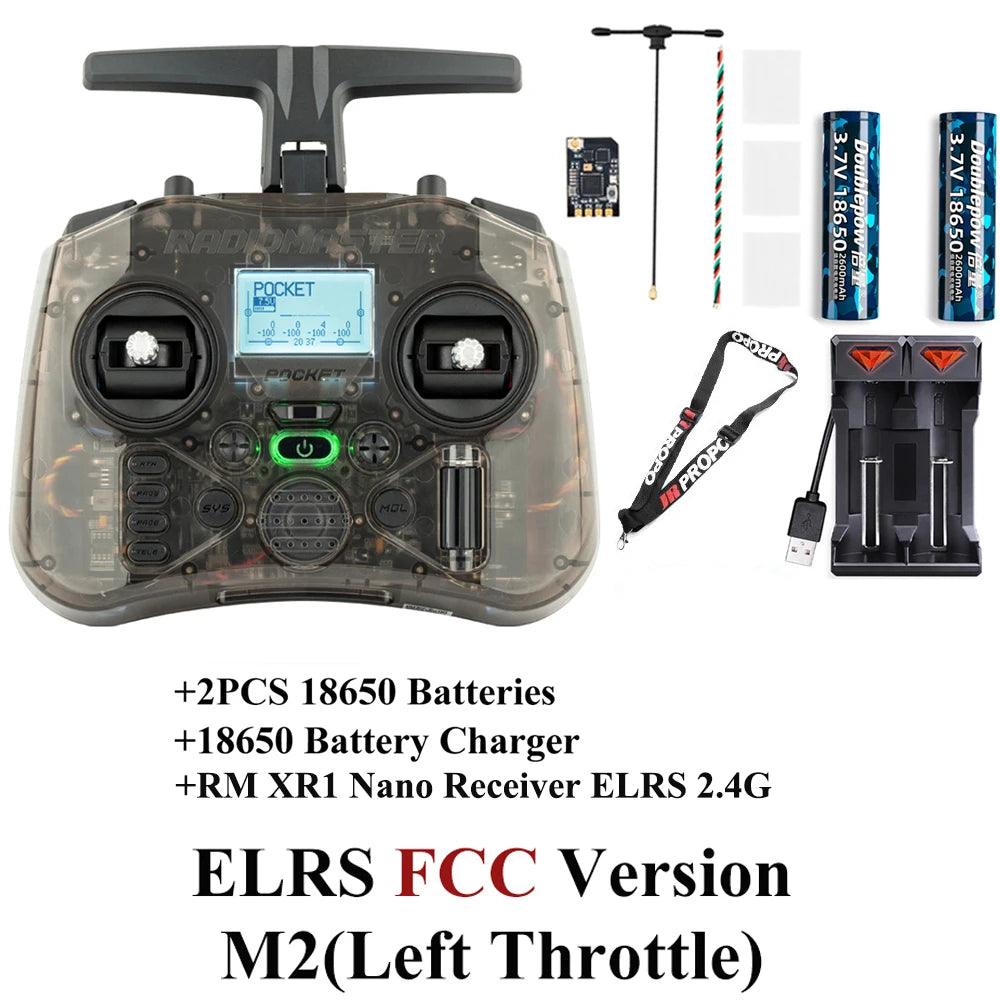

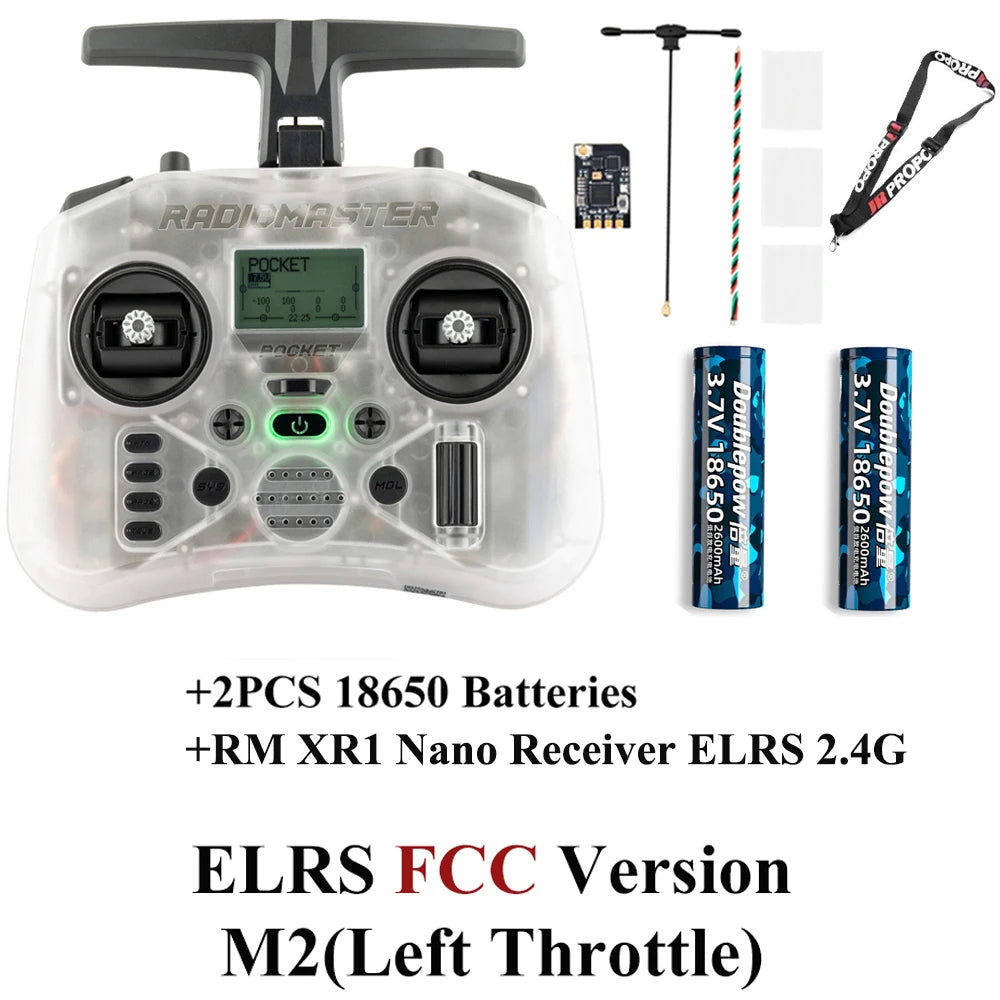

Specification for XR1 Receiver

Item: XR1 Nano Multi-Frequency ExpressLRS Receiver

Type: ISM2.4

MCU: ESP32C3

RF chip: Semtech LR1121

RF connector: IPEX-1

Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)

Frequency Range: 2.4GHz

Telemetry Power: 100mW

Maximum Packet rate: DK500Hz / K1000Hz

Minimum Packet refresh rate: 50Hz

Working voltage: 5V

Weight: 1.0g (without antenna)

Dimension: 20mm * 13mm * 3mm

Firmware Version: ExpressLRS v3.5.1 pre-installed

FW Target: RadioMaster XR1 2.4

Bus interface 1: CRSF

Bus interface 2: UART

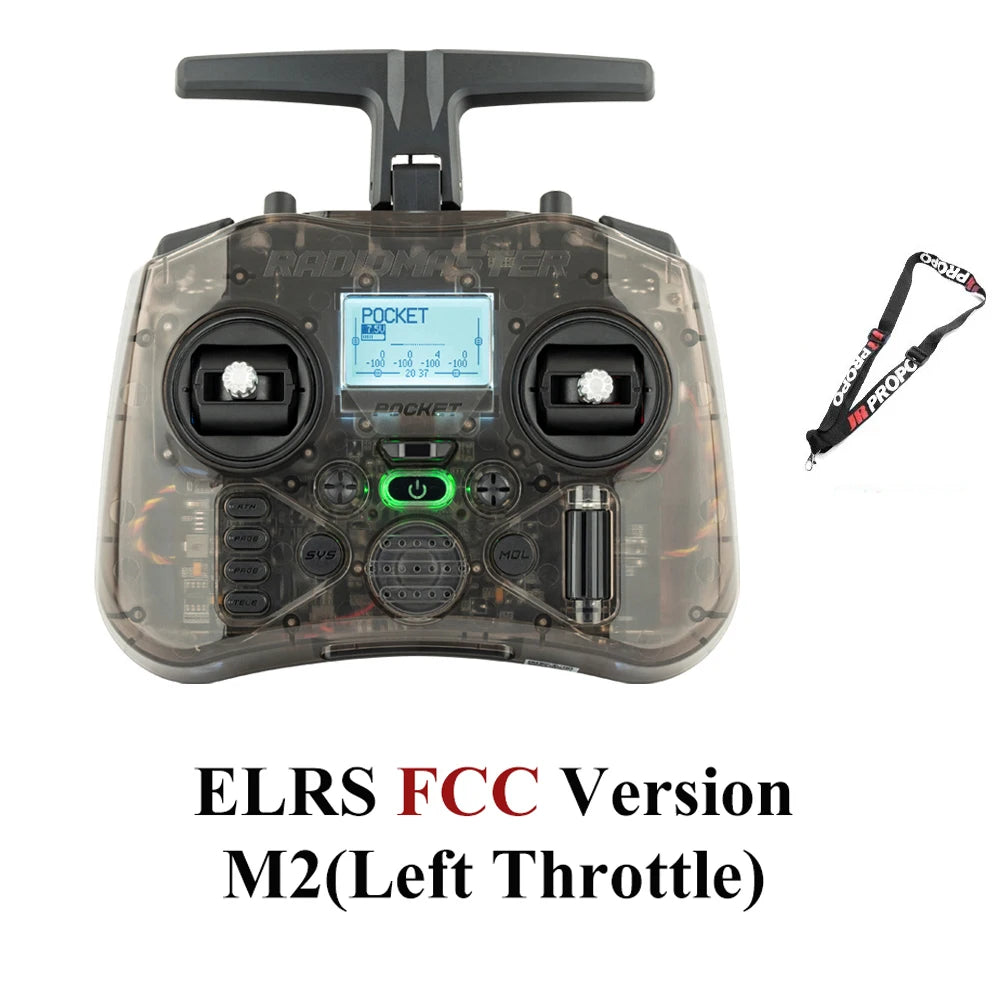

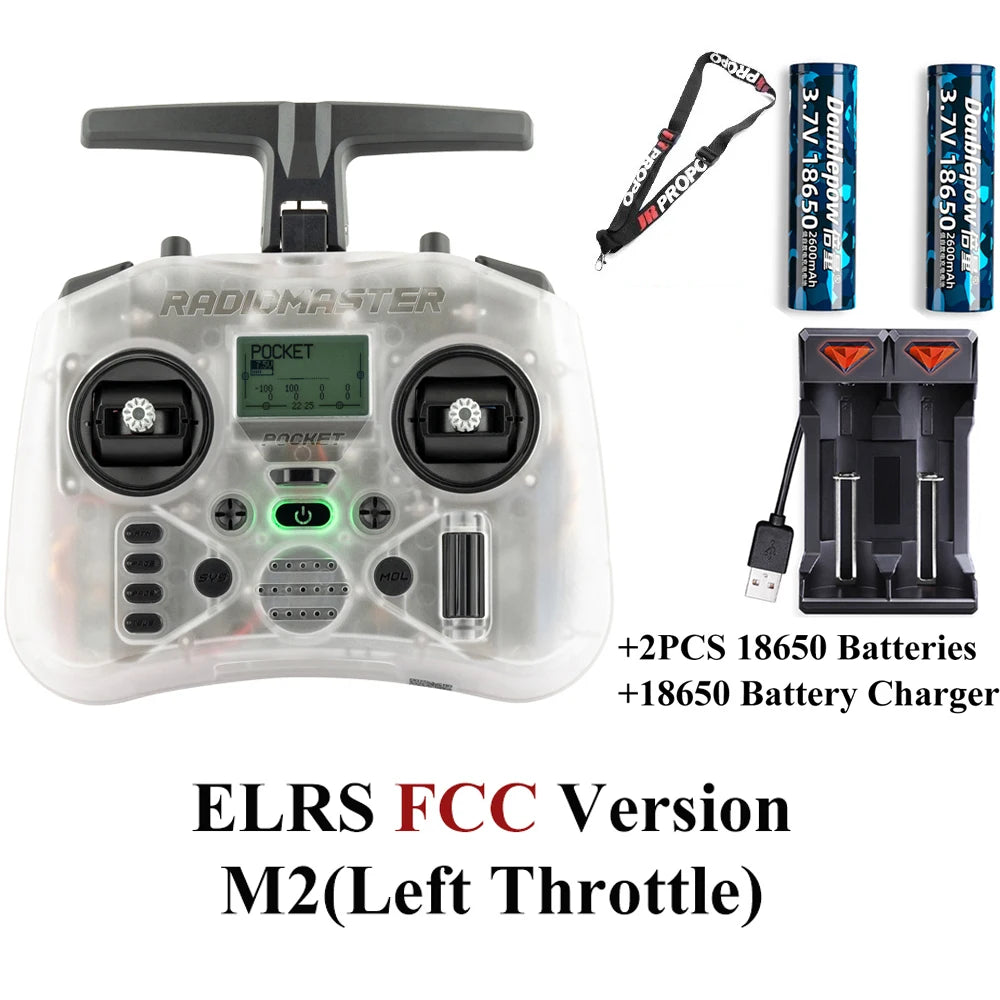

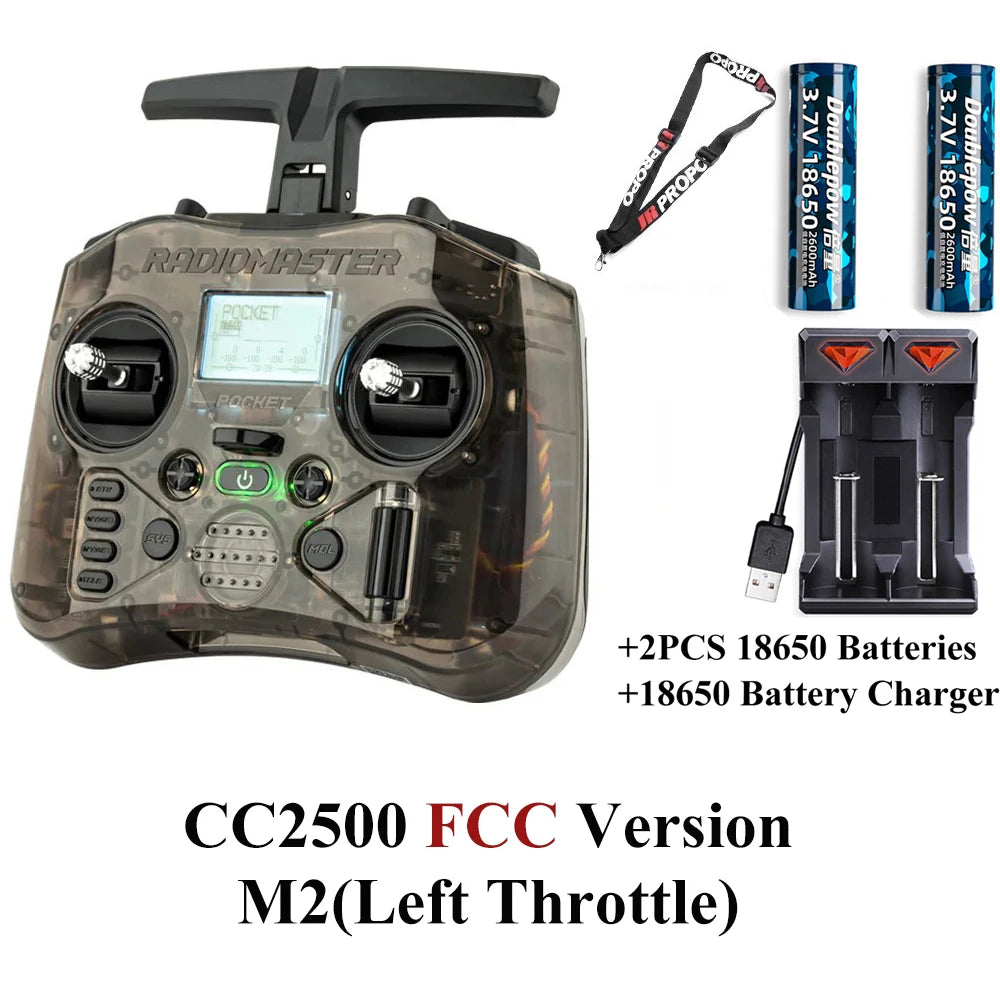

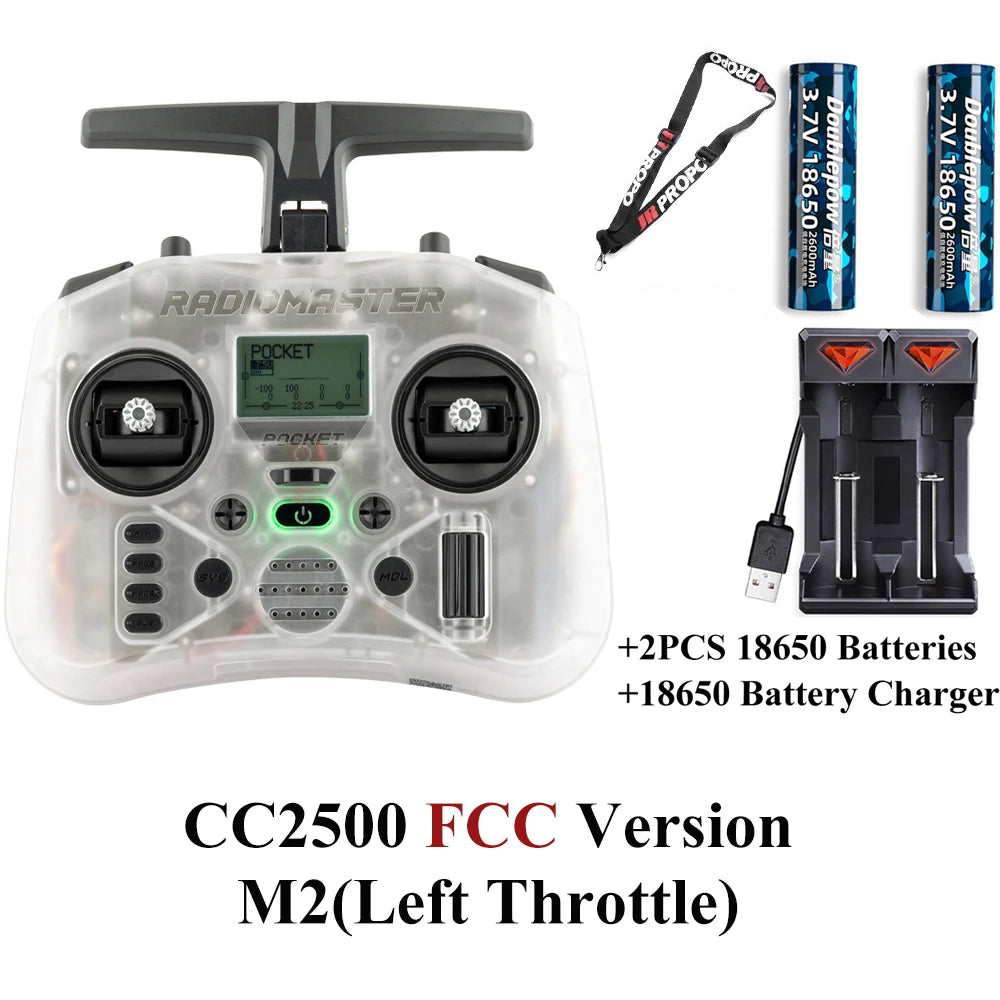

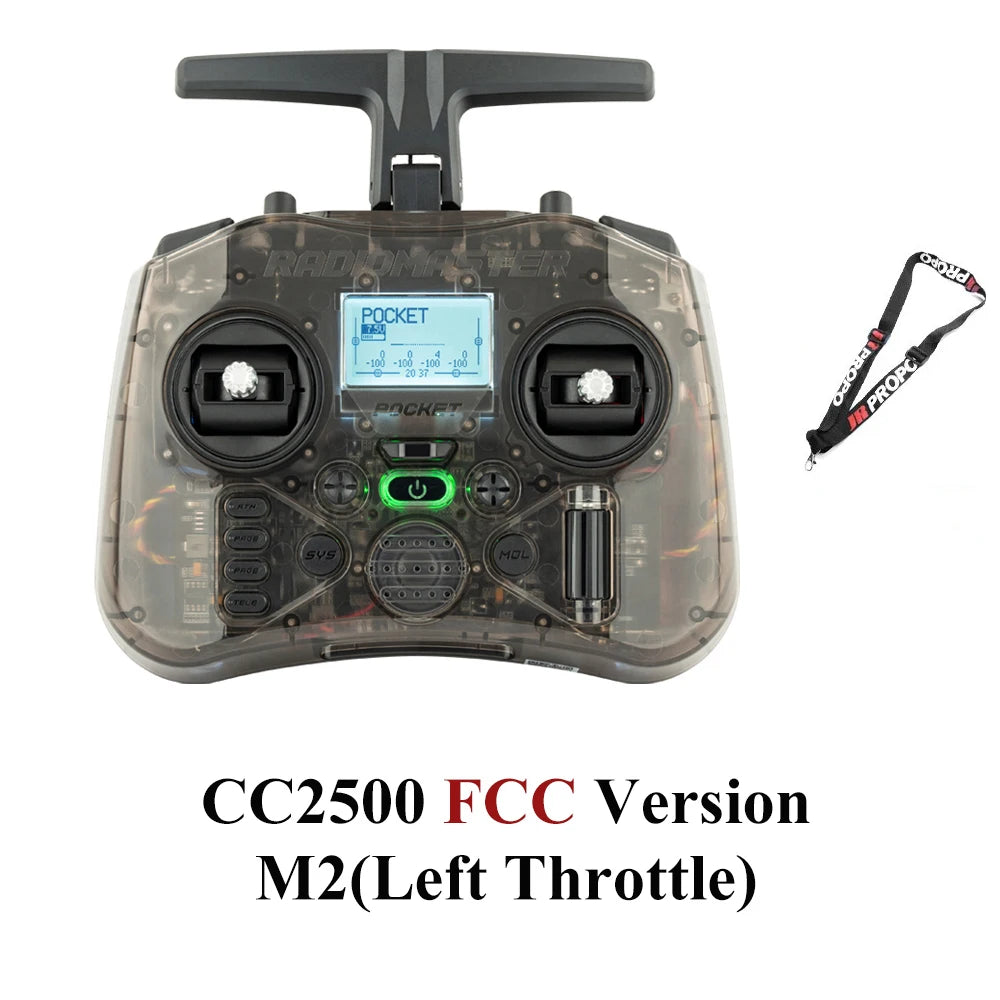

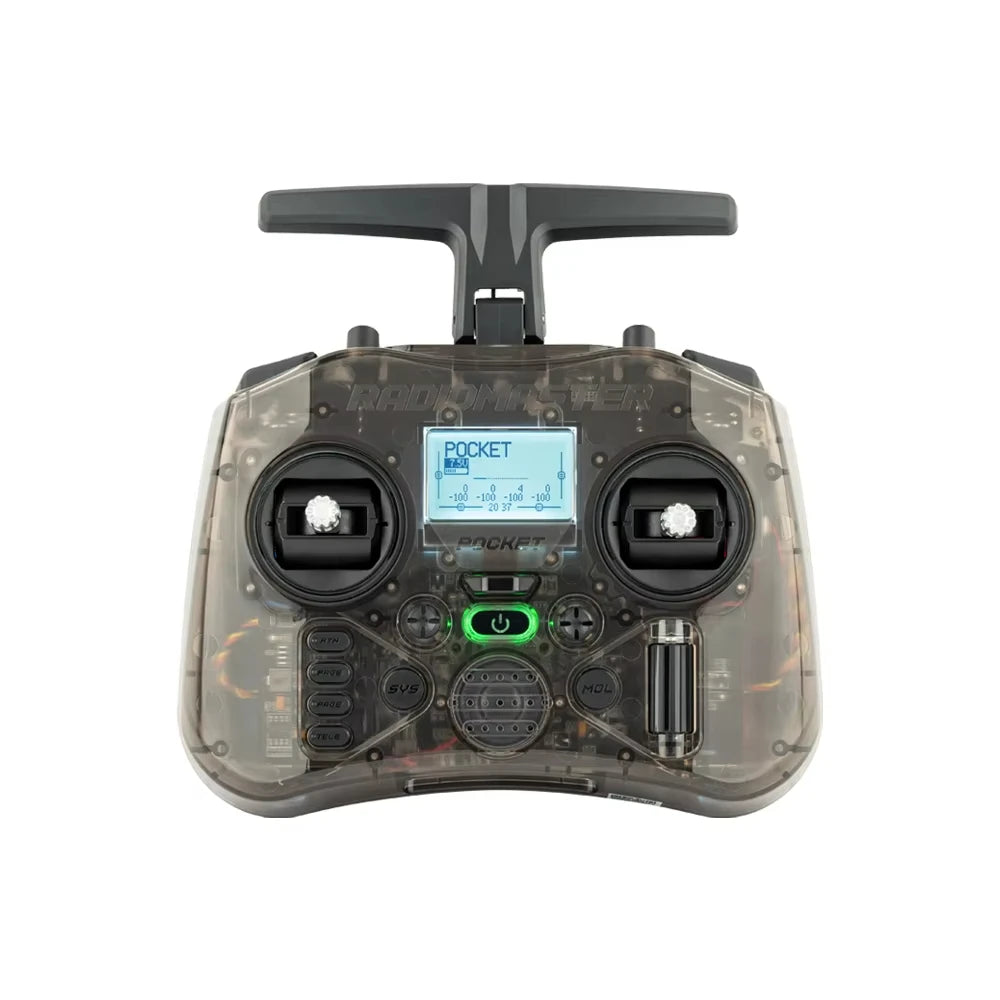

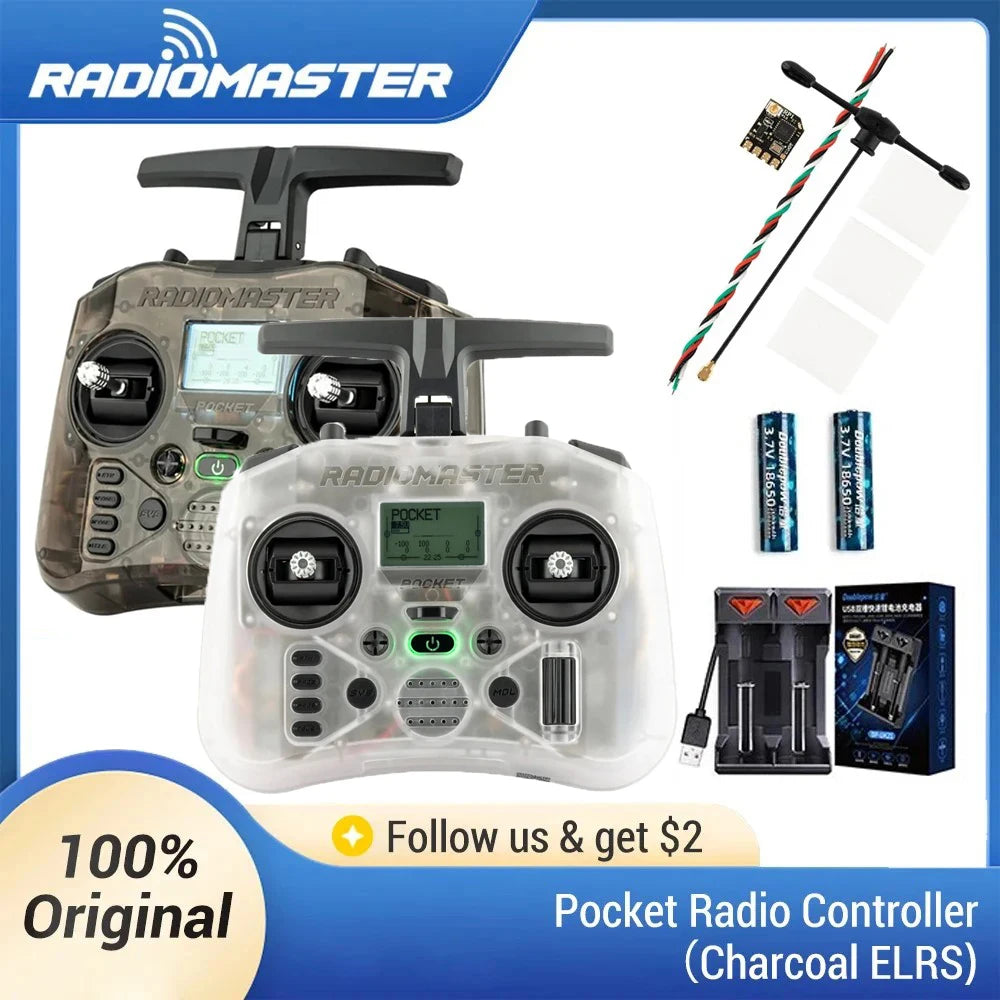

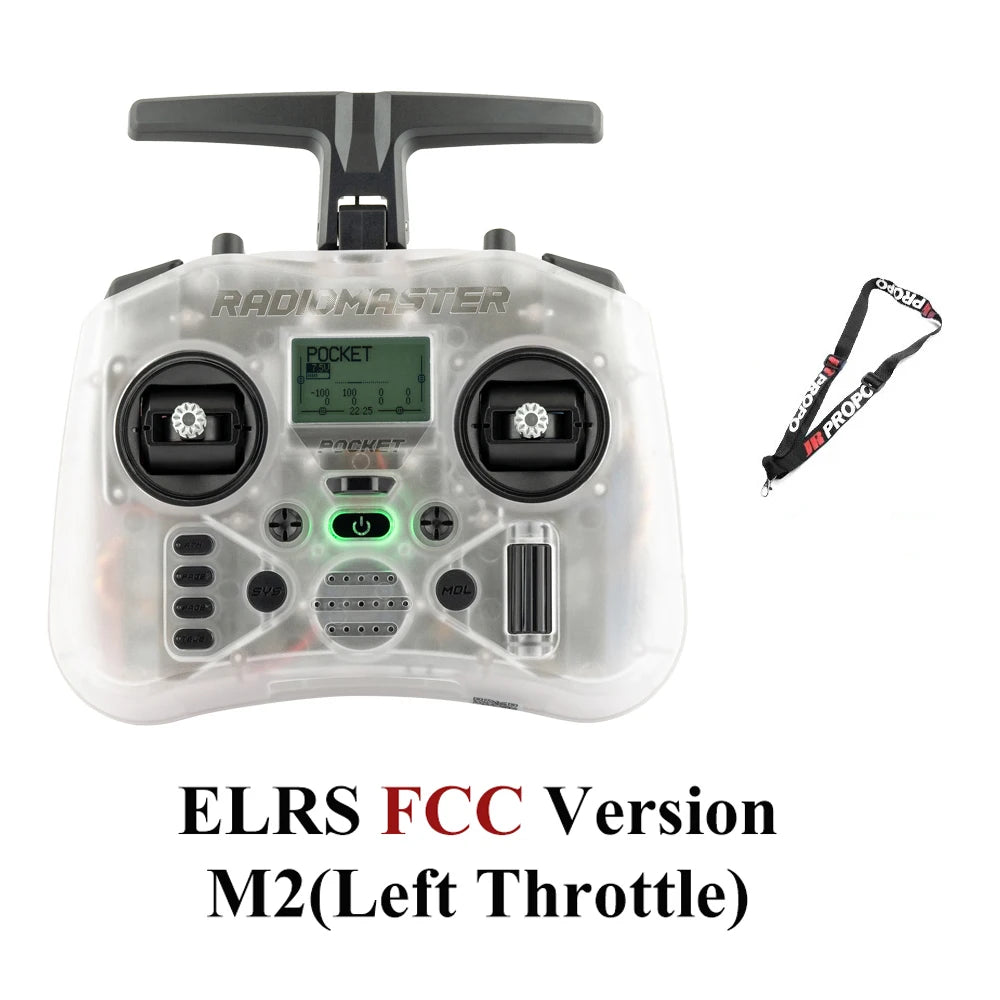

RadioMaster Pocket: The Small Radio with Huge Impact

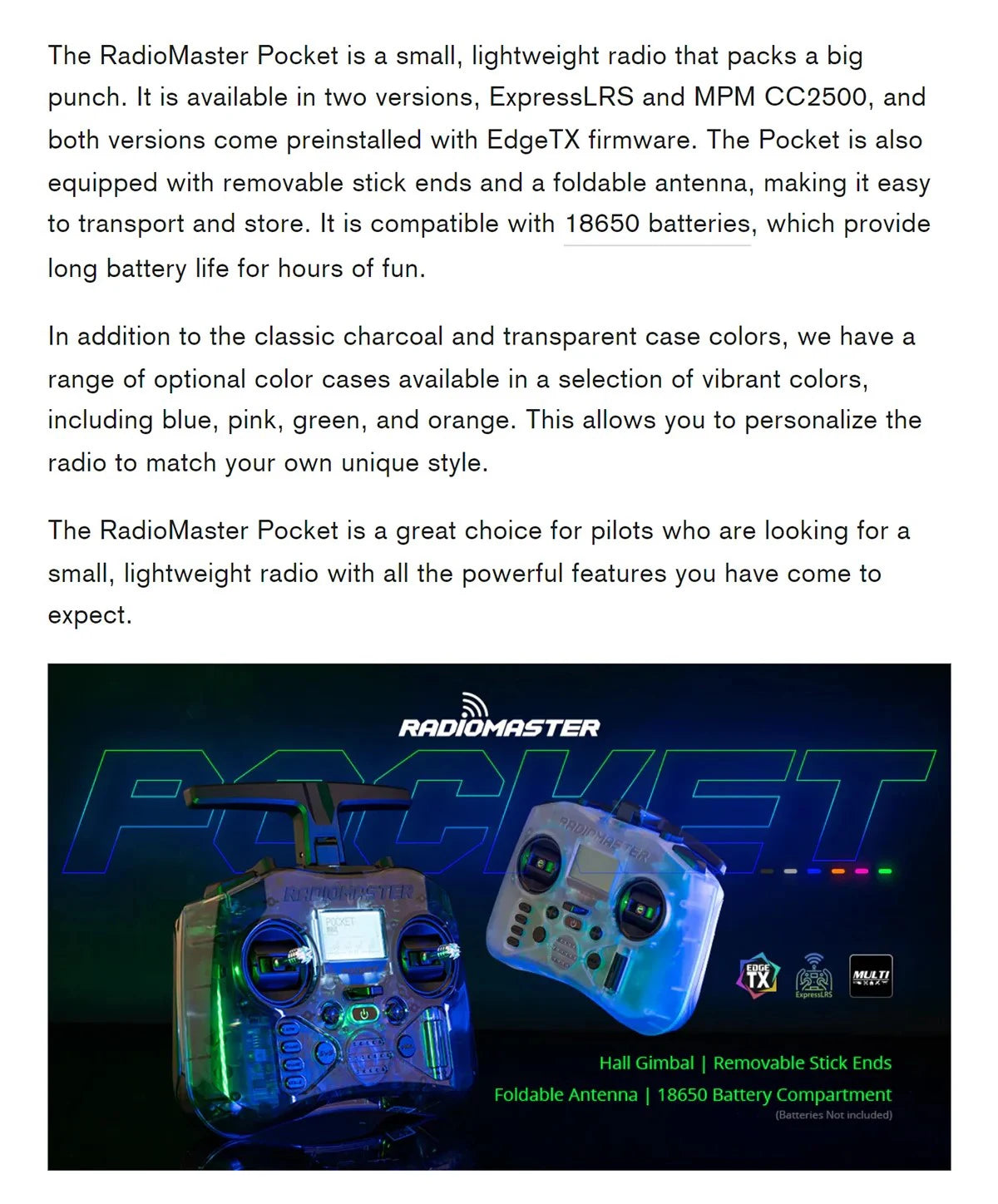

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.

The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.

Features

Available in ExpressLRS and MPM CC2500 versions

Preinstalled with EdgeTX firmware

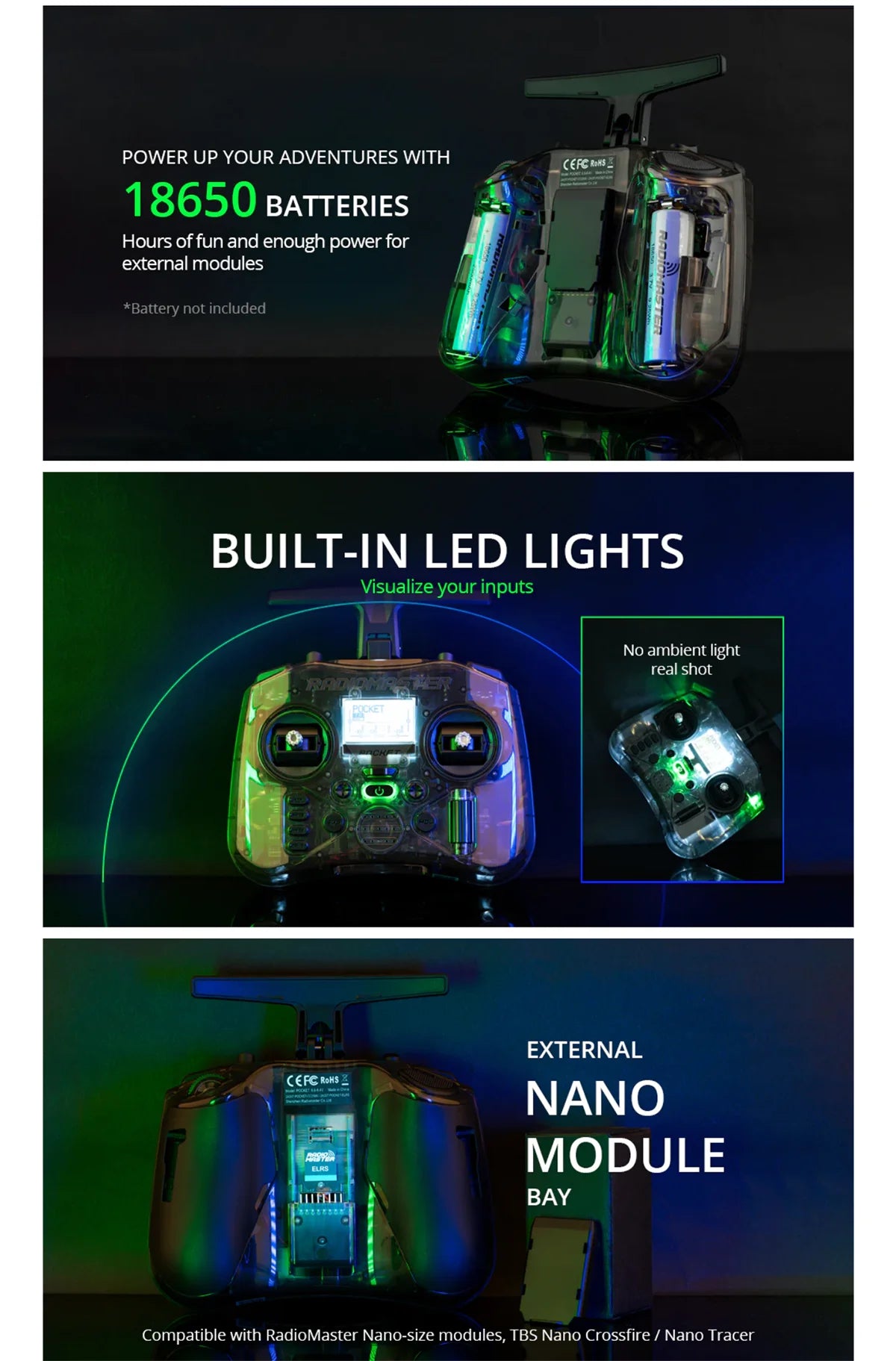

18650 Batteries, all the power you need for hours of fun

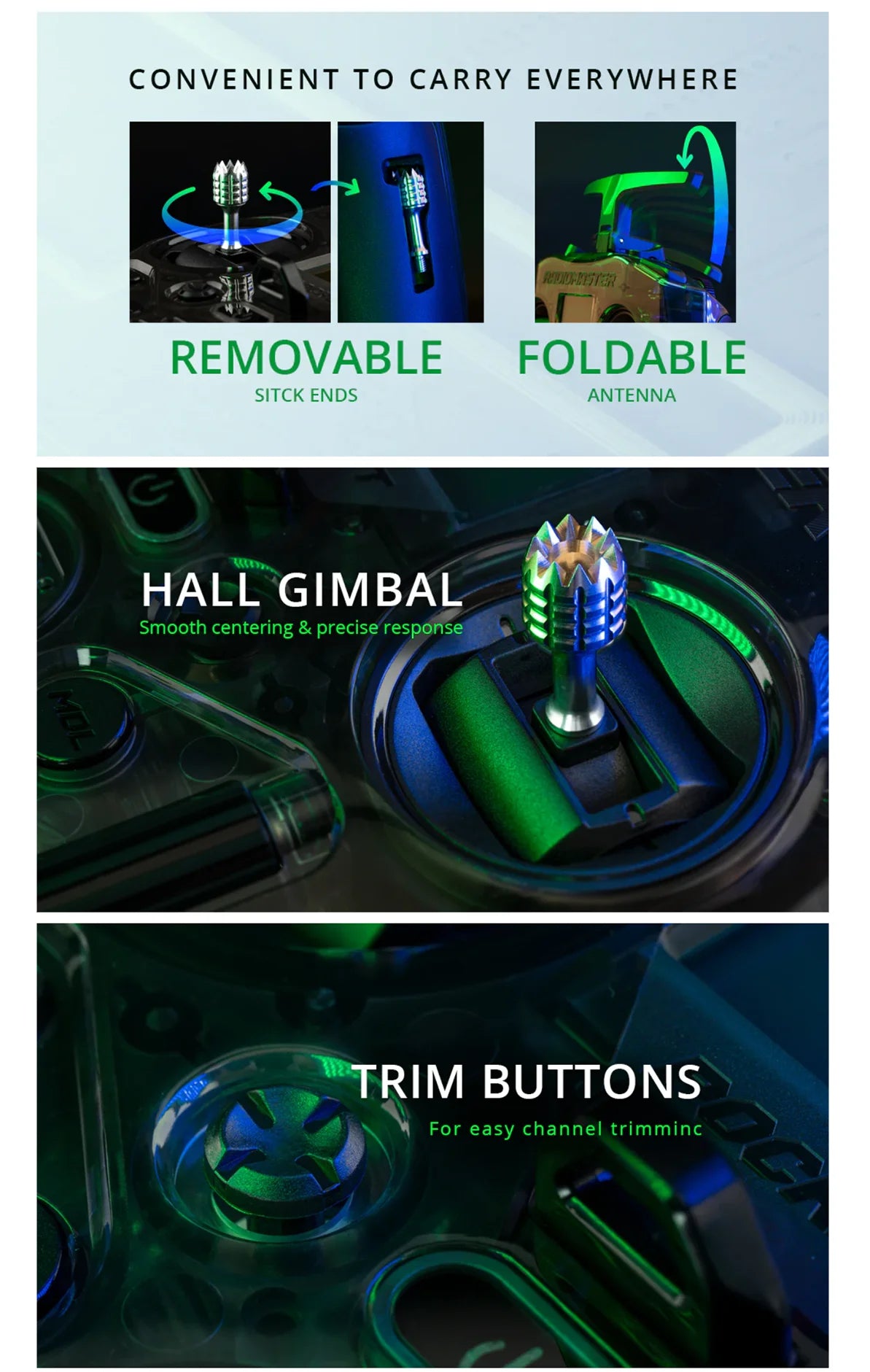

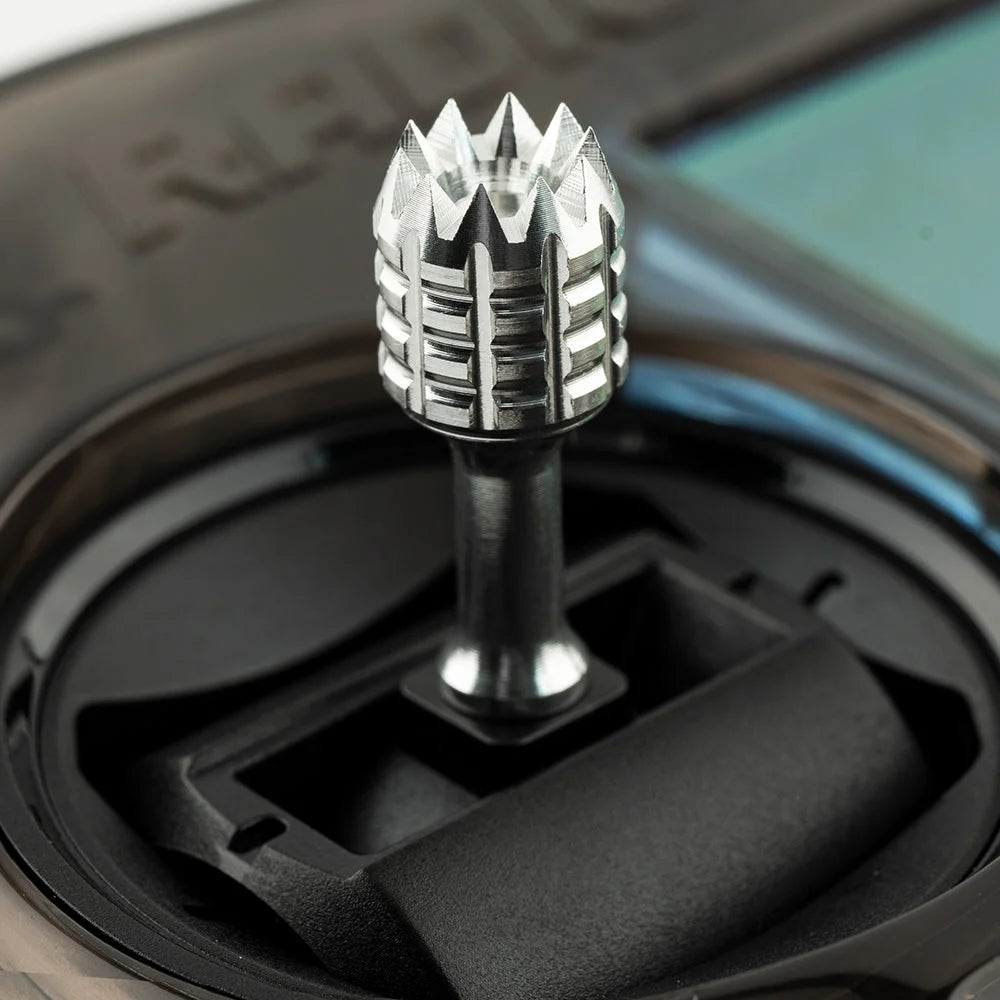

Portable and lightweight design with removable stick ends and foldable antenna

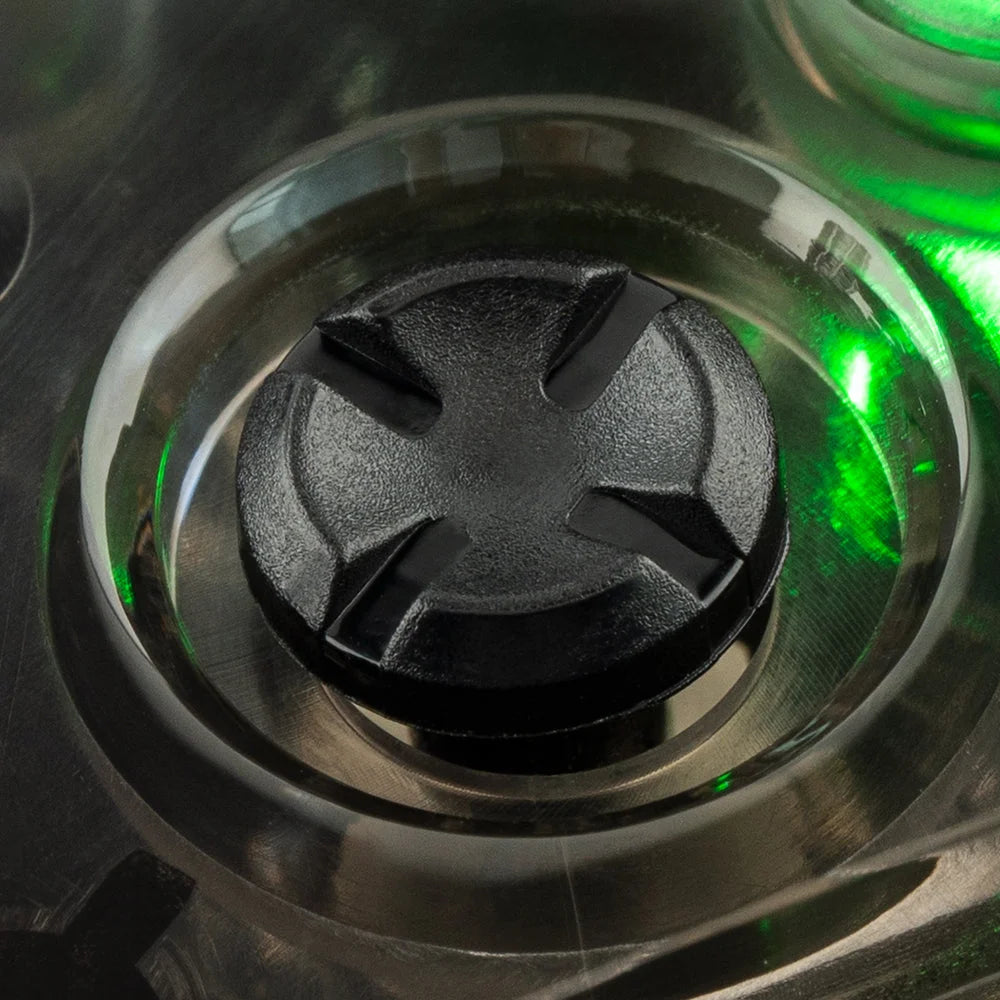

Features hall effect gimbals as standard for smooth cantering & precise response

Built-in LED lights helps visualize your switch inputs

Backlit LCD Screen offering a perfect balance of size and functionality

Trim buttons for easy channel trimming

External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer

2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, Orange to suit your style

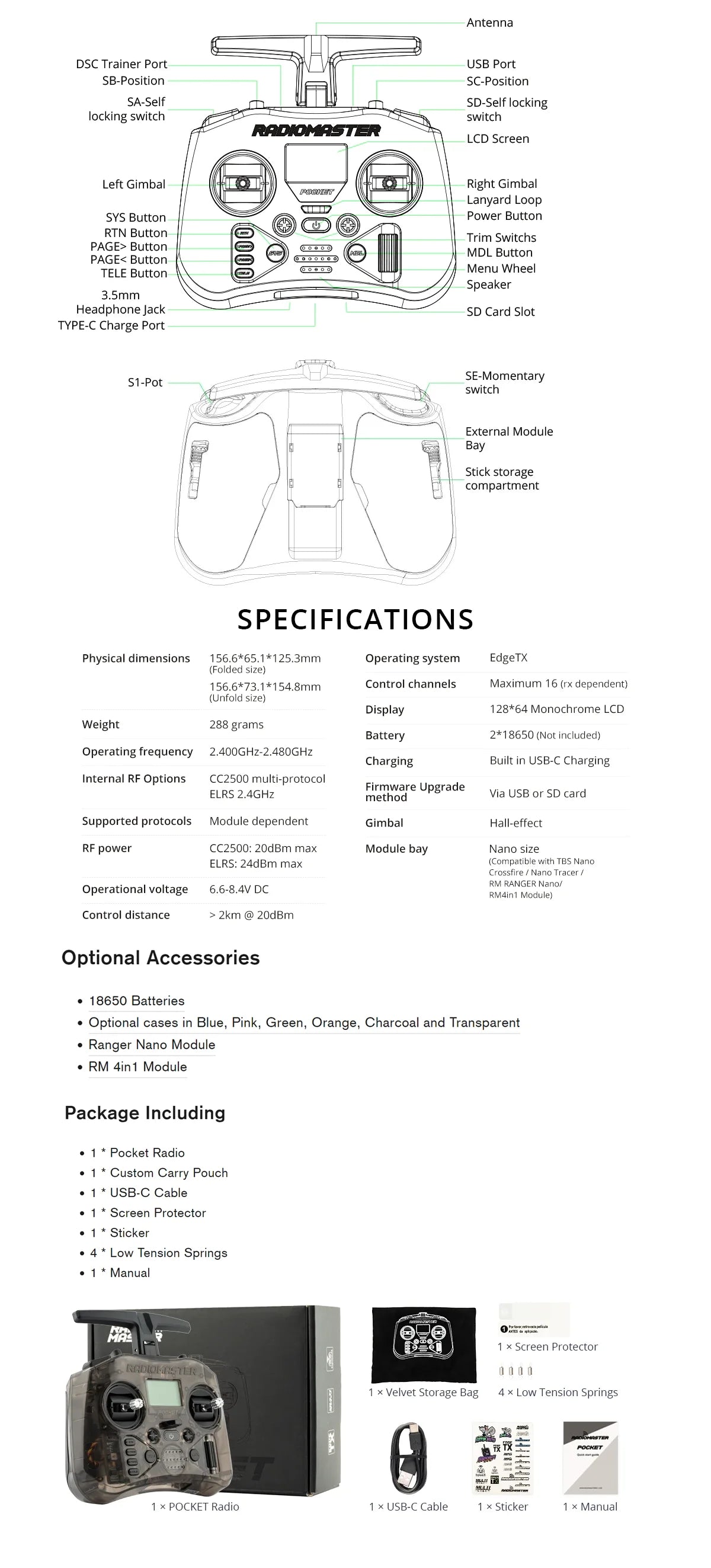

Specifications

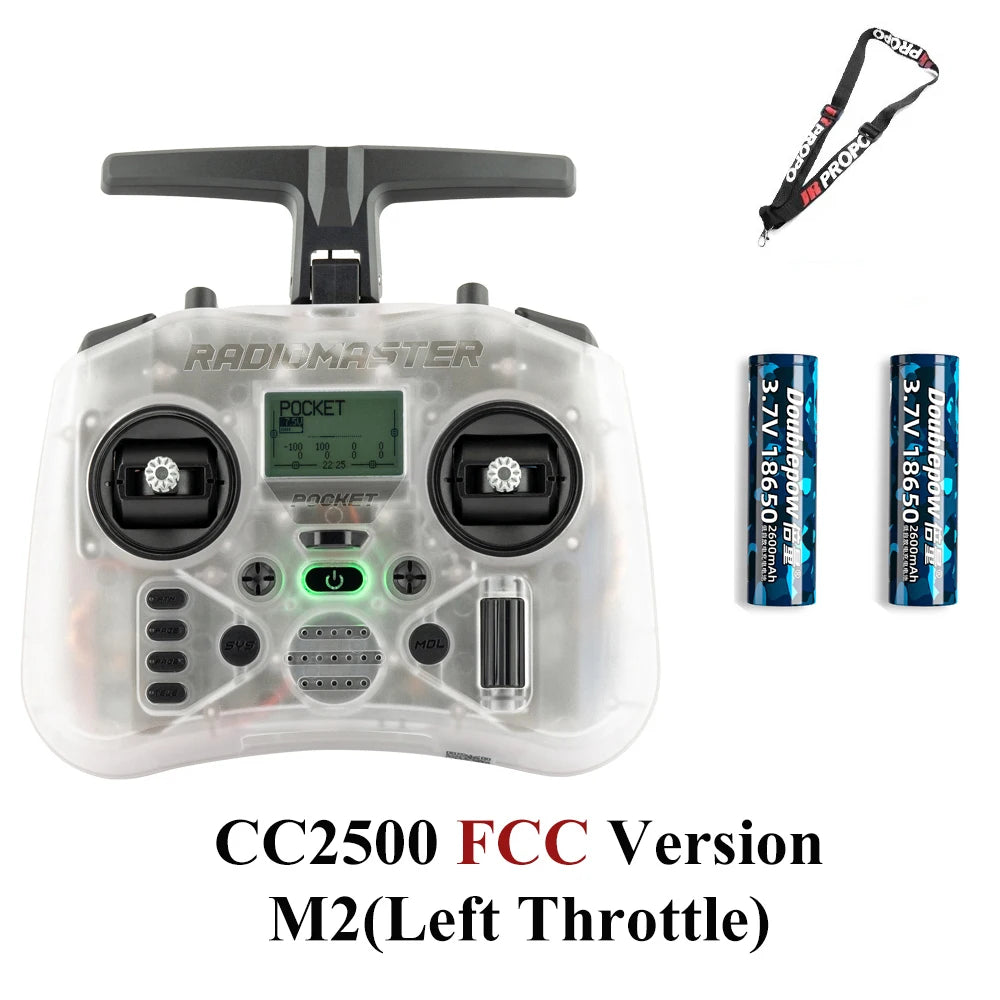

Item: Pocket Radio

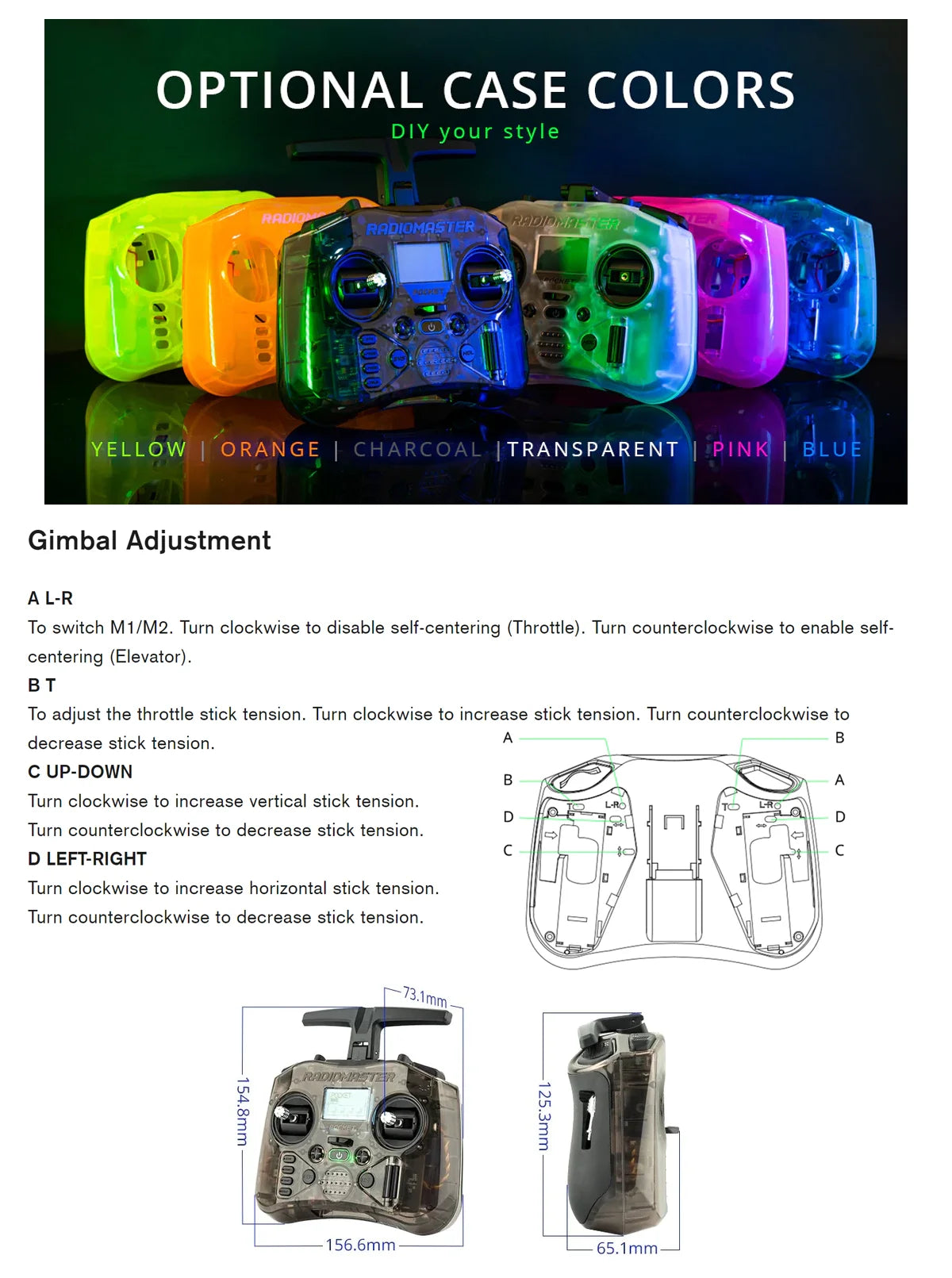

Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）

Weight: 288 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

Operational voltage: 6.6-8.4v DC

Operating system: EdgeTX

Control channels: Maximum 16 (Receiver dependent)

Display: 128*64 Monochrome LCD

Battery: 2pcs 18650 batteries (Not included)

Charging: Built in USB-C QC3 Charging

Upgradable Firmware: Via USB or the included SD card

Gimbal: Hall-effect

Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Package Including

1 * Pocket Radio

1 * Custom Carry Pouch

1 * USB-C Cable

1 * Screen Protector

1 * Sticker

4 * Low Tension Springs

1 * Manual
