SPECIFICATIONS

AC Voltage: 0.1V 0.3V 0.6V

Battery: 300mAh

Battery Included: Yes

Brand Name: ZEEWEII

Choice: yes

DC Voltage: 0.6Vrms

DIY Supplies: Electrical

Dimensions: 140mm*31mm*16mm

Display: 1.47 Inch HD color screen

Display Type: Digital Display

Frequency: 100 1K 10K 100K

High-concerned chemical: none

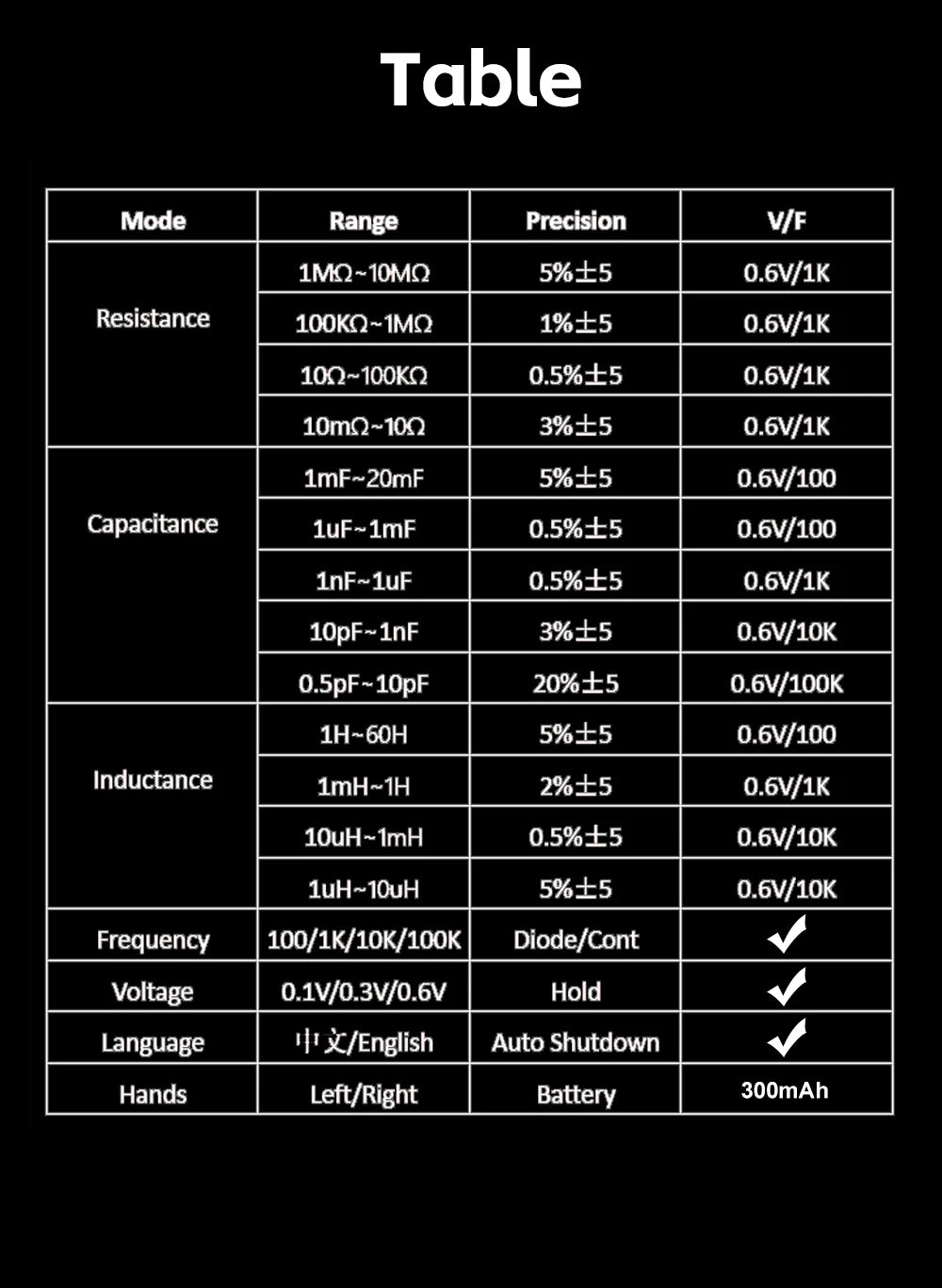

Measuring Capacitance Range: 1pF~20mF

Measuring Inductance Range: 1uH~60H

Measuring Resistance Range: 10mΩ~10MΩ

Model Number: ZLCR-K3

Operating Mode: Auto Range

Origin: Mainland China

Semi-finishedproduct: No

Weight: 38.6g

semi_Choice: yes

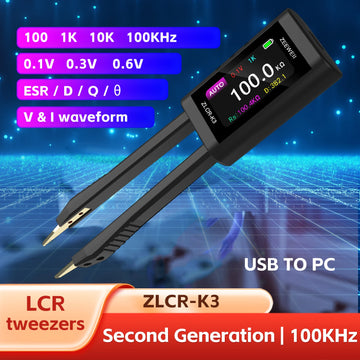

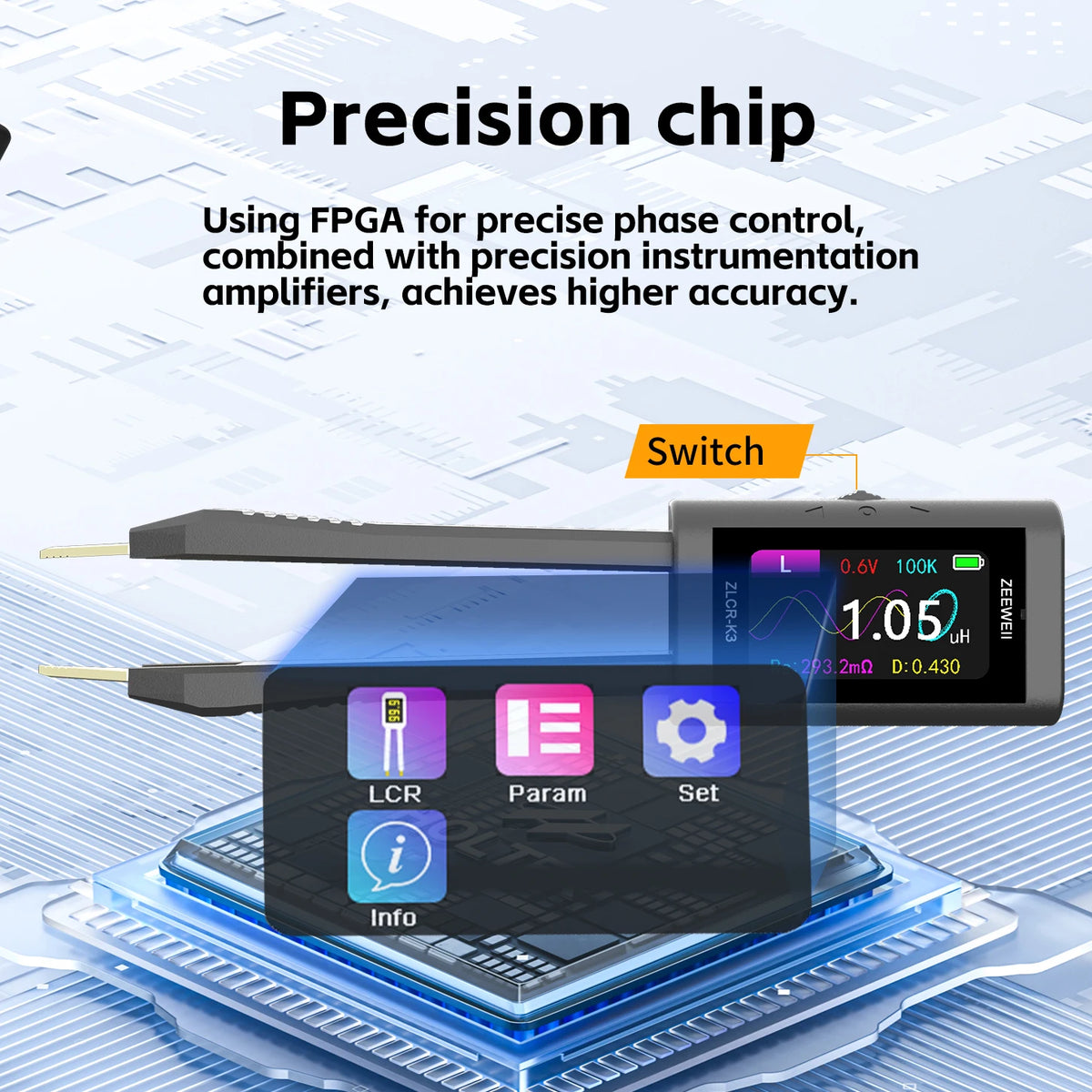

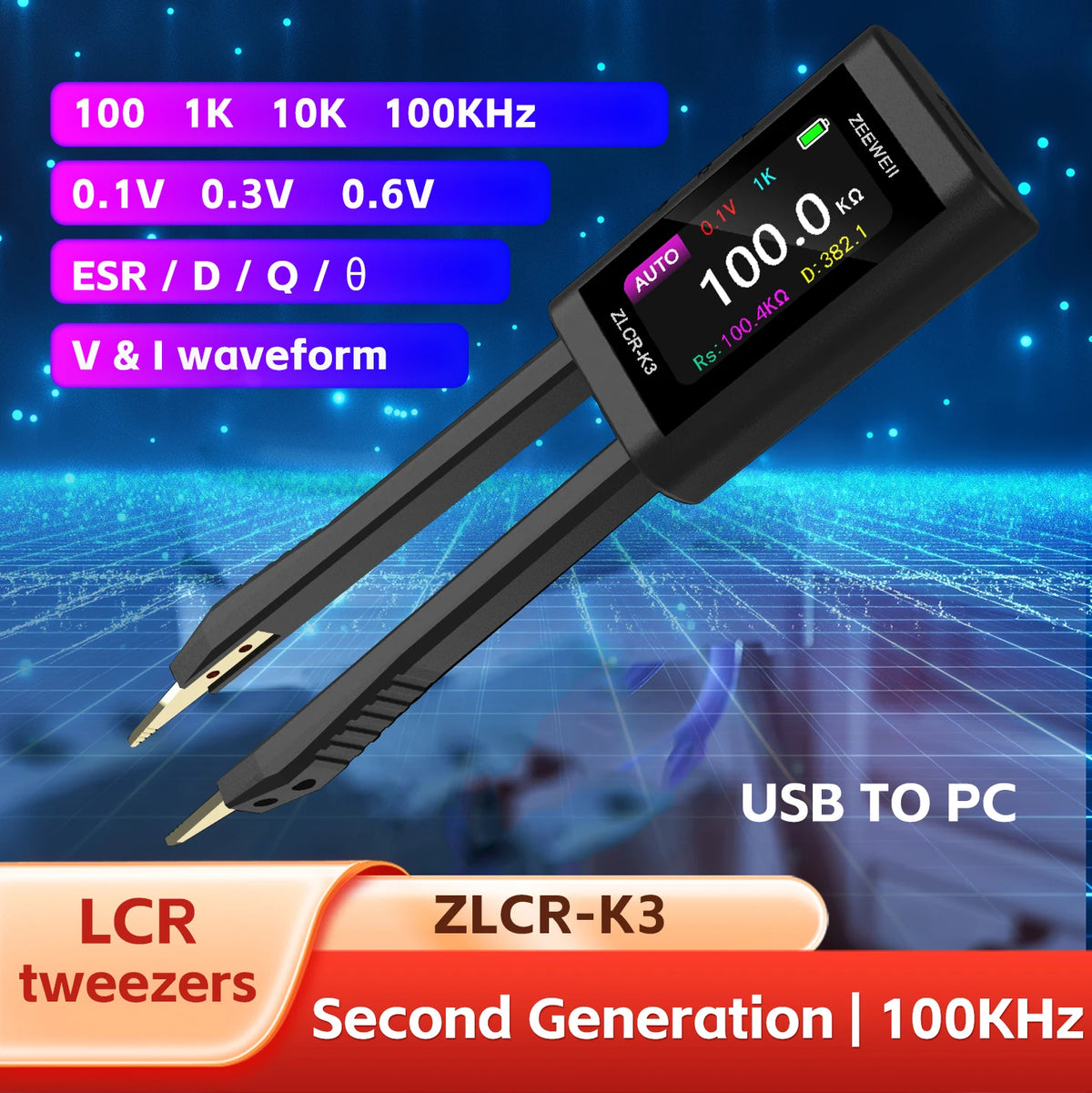

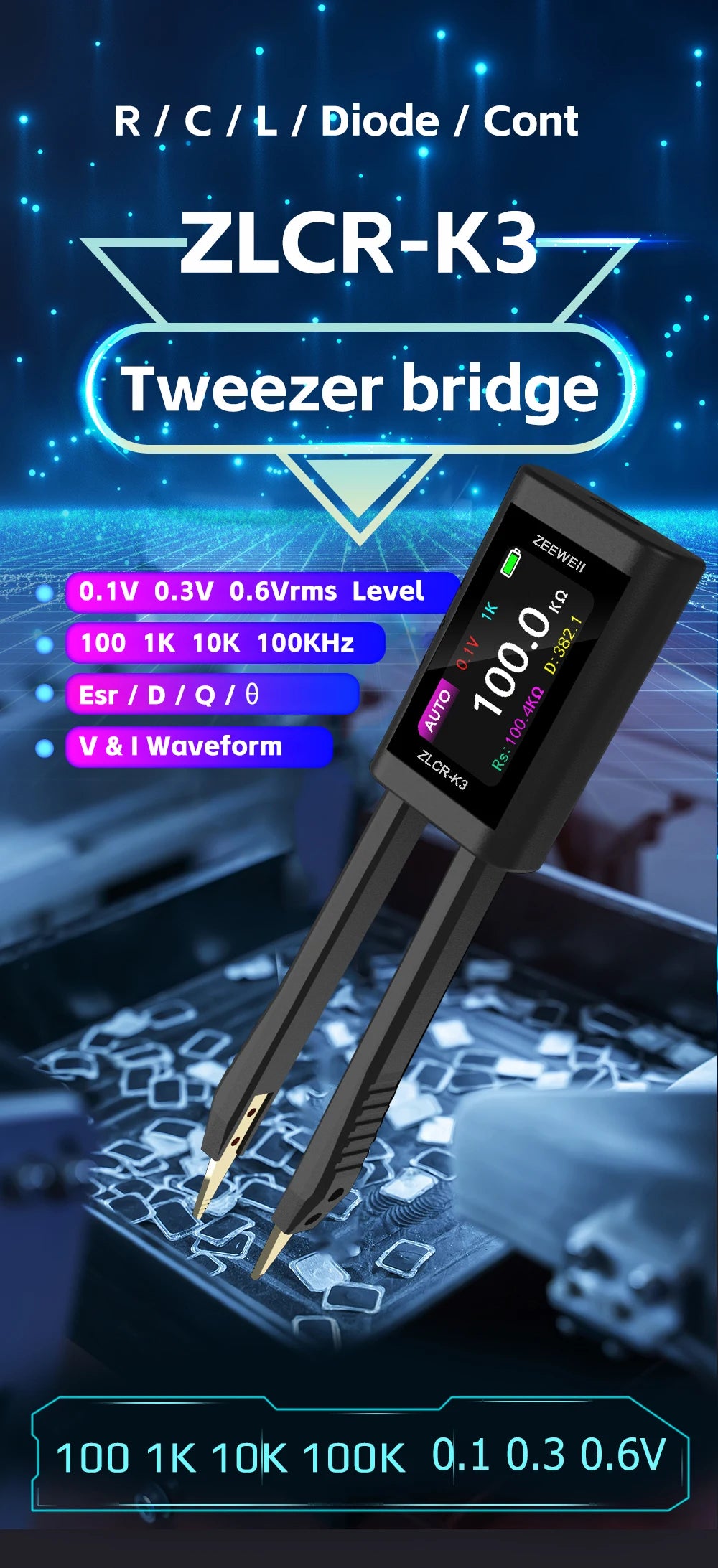

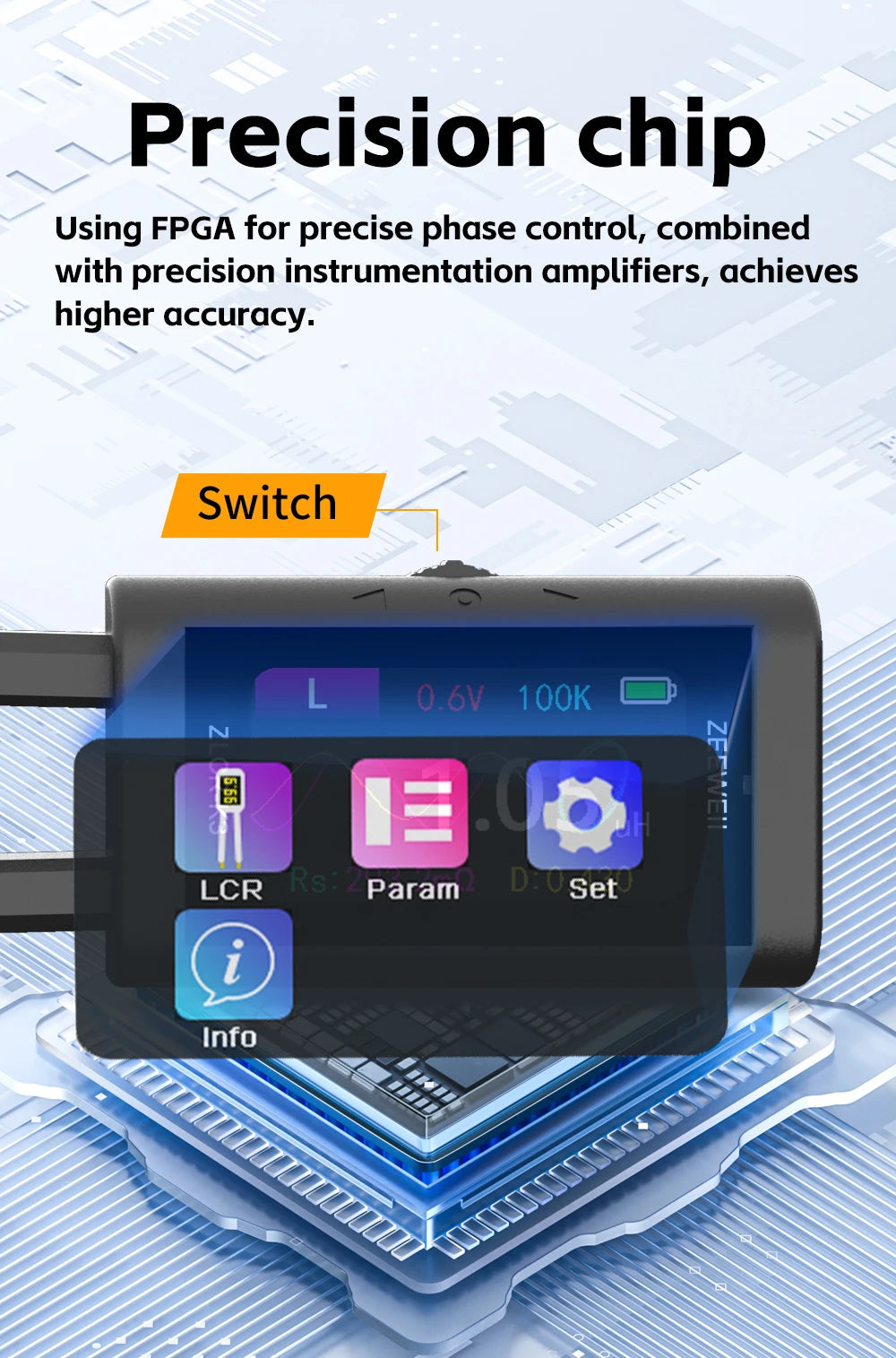

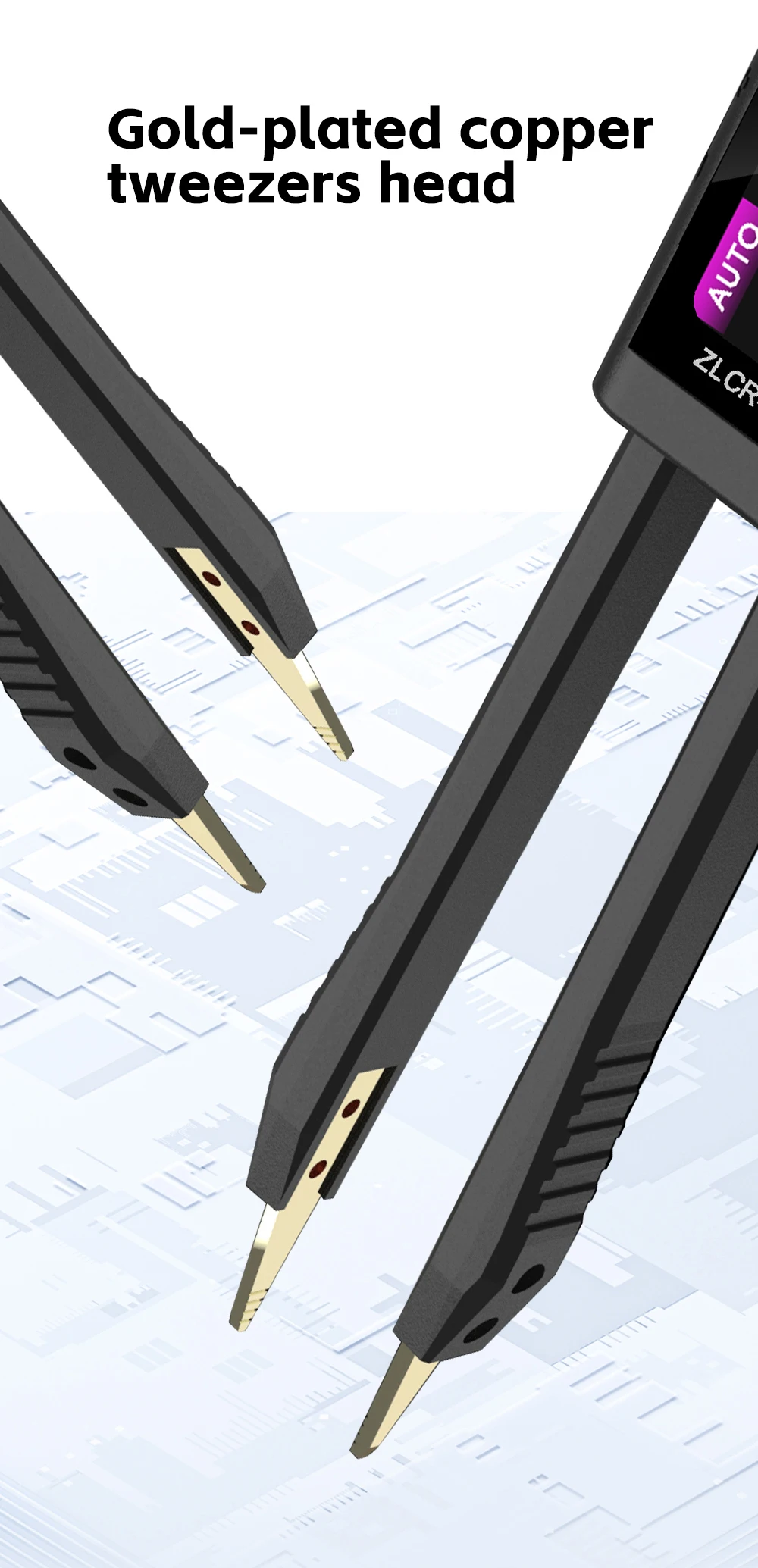

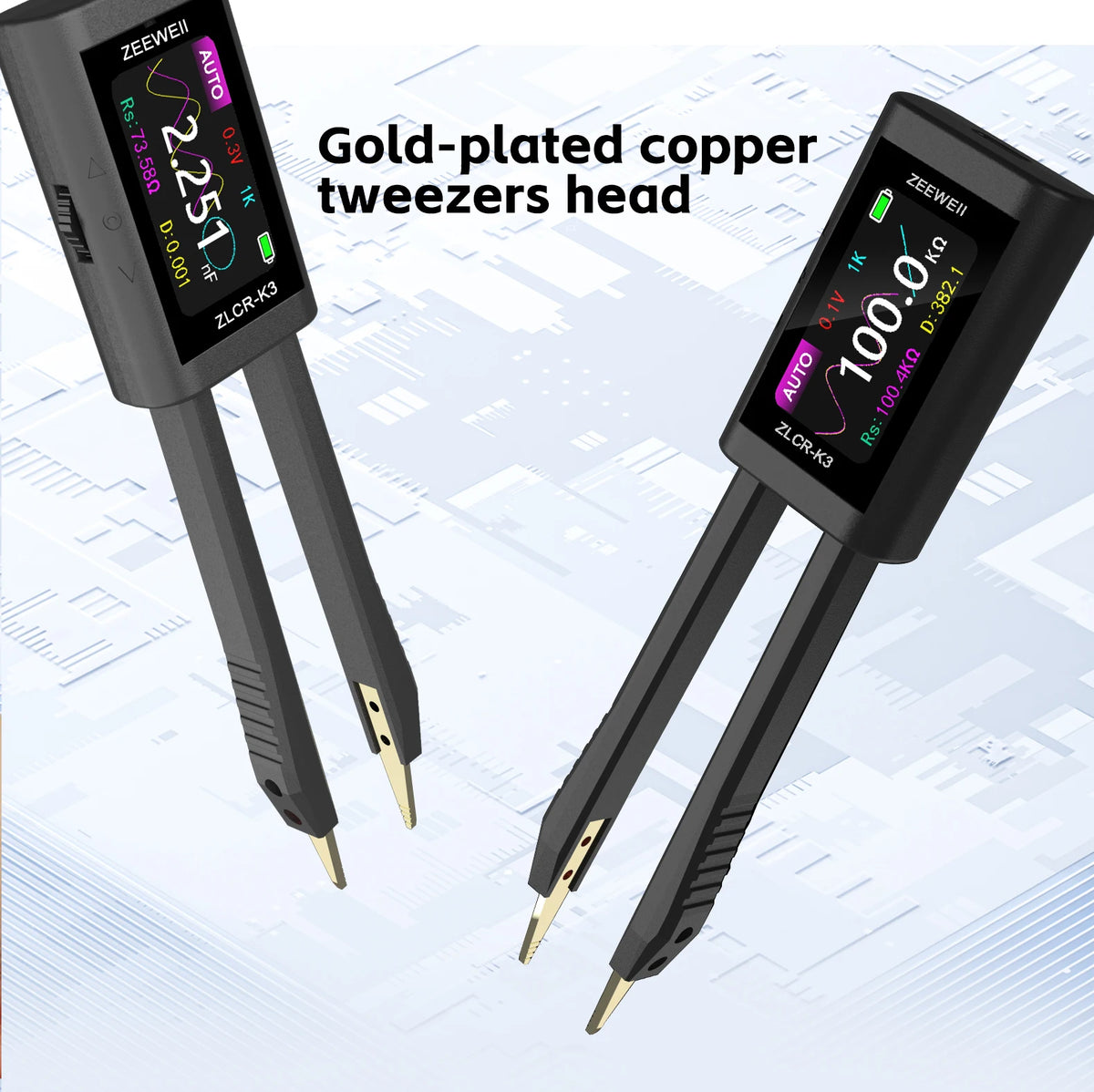

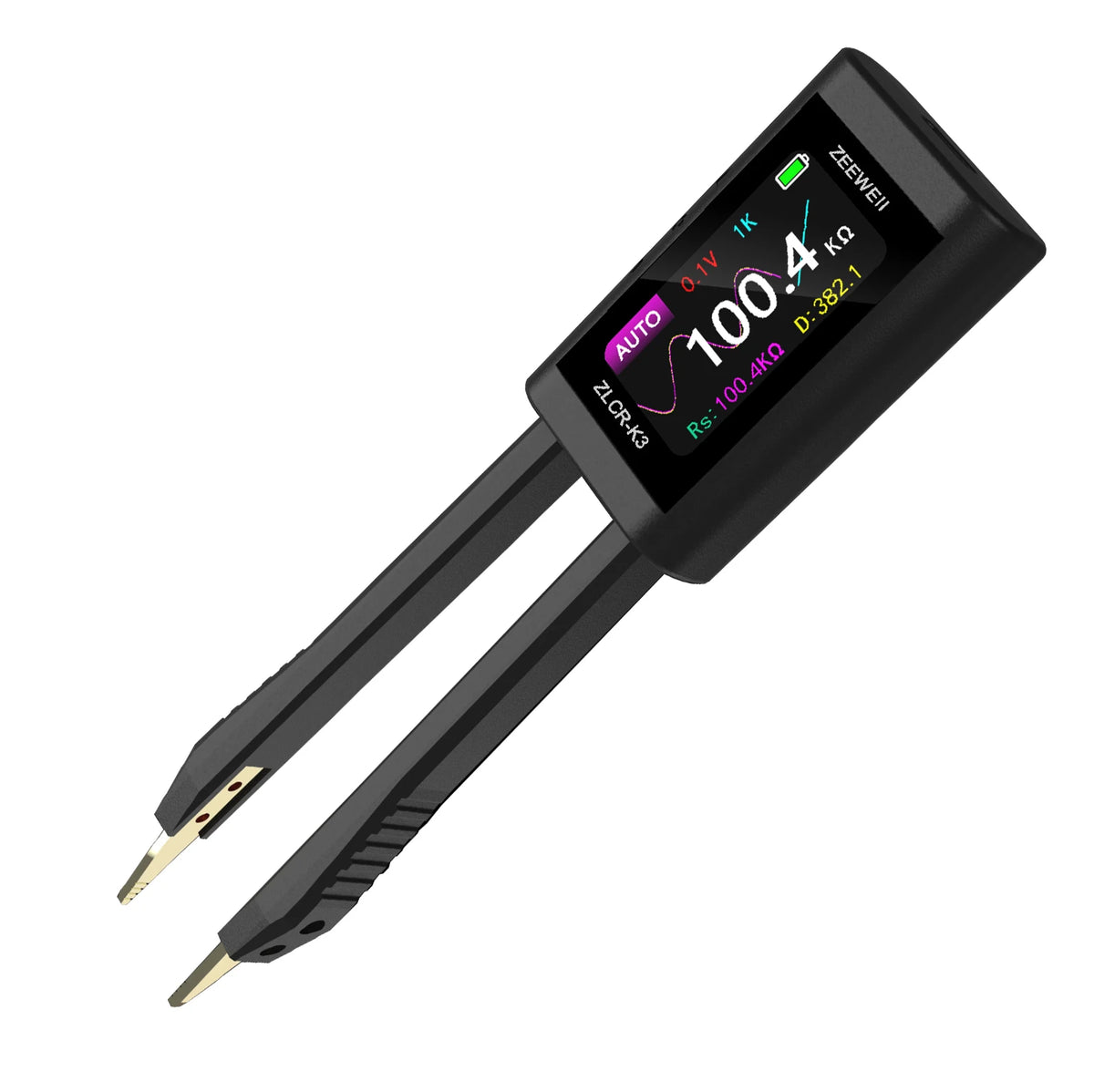

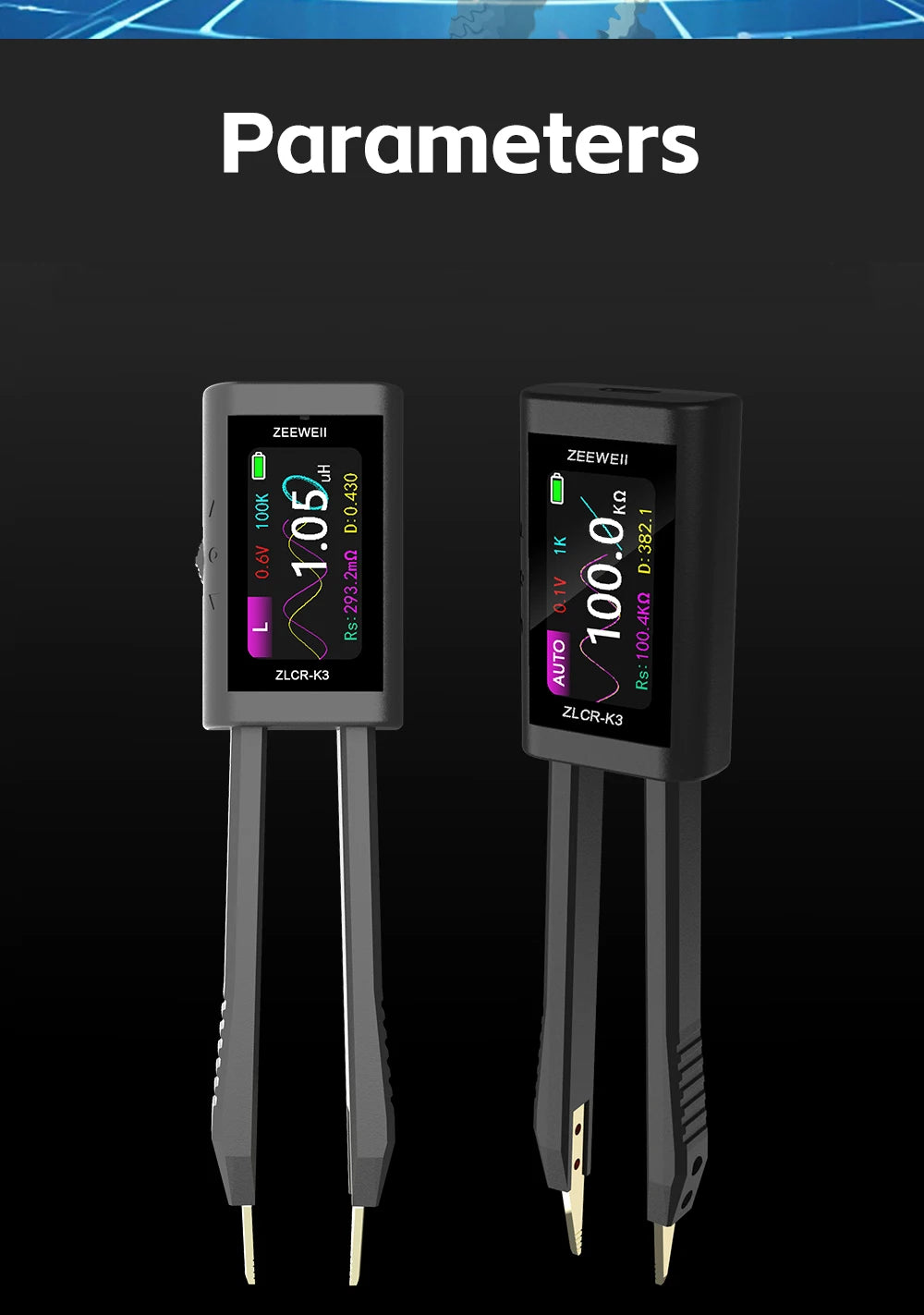

The ZLCR-K3 is the latest generation tweezer-type LCR meter developed by us. It is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance. Equipped with advanced measurement technology ensures high accuracy and stability.

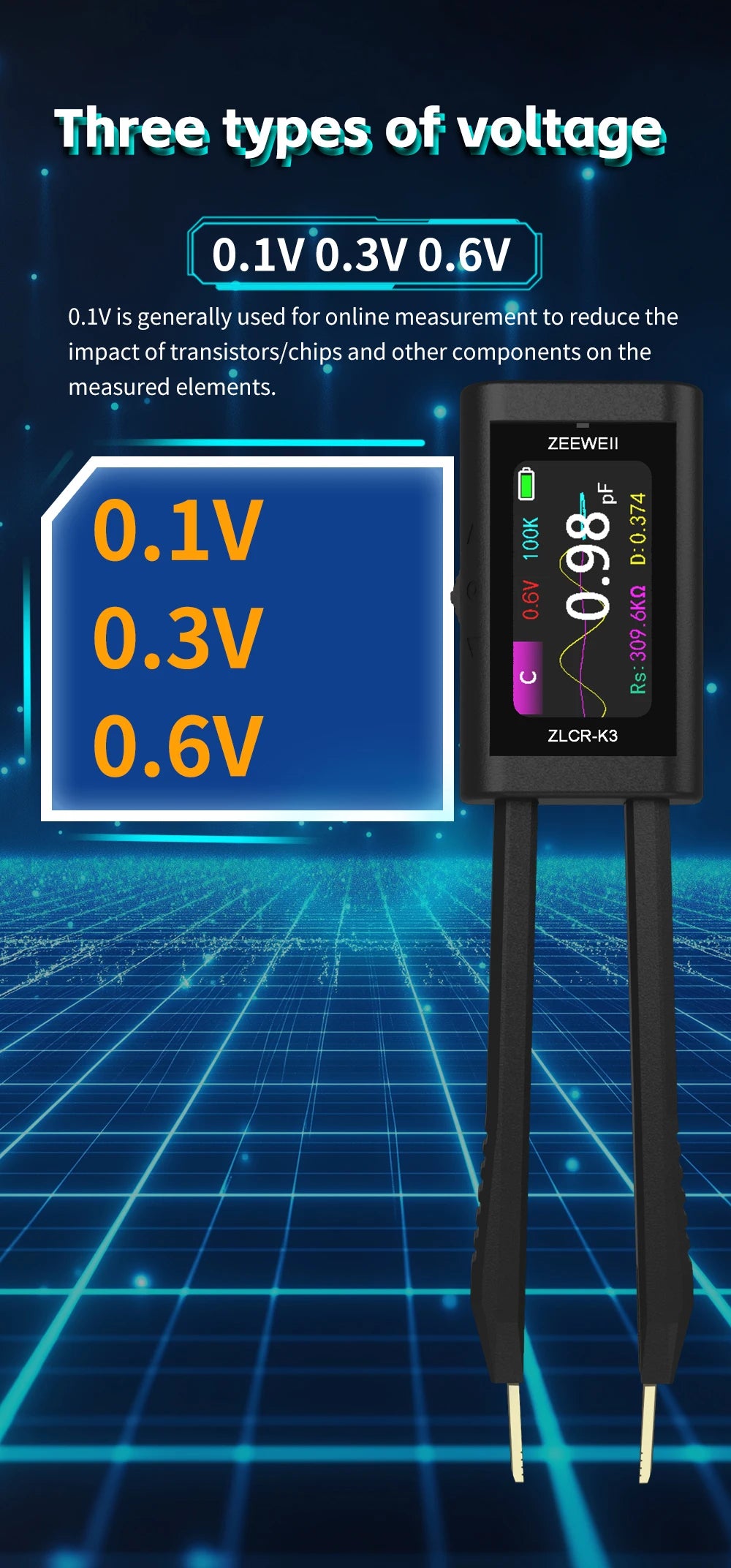

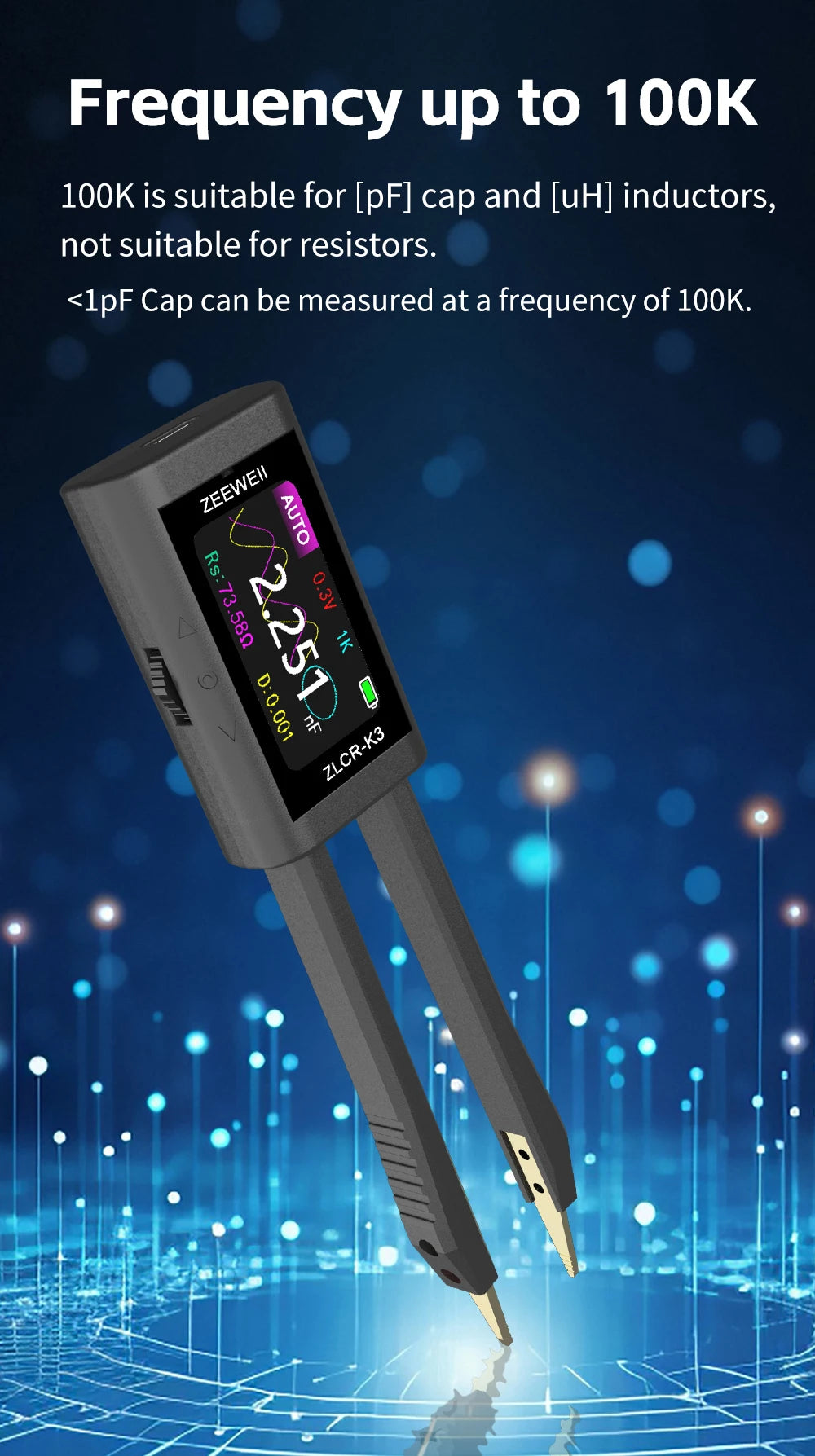

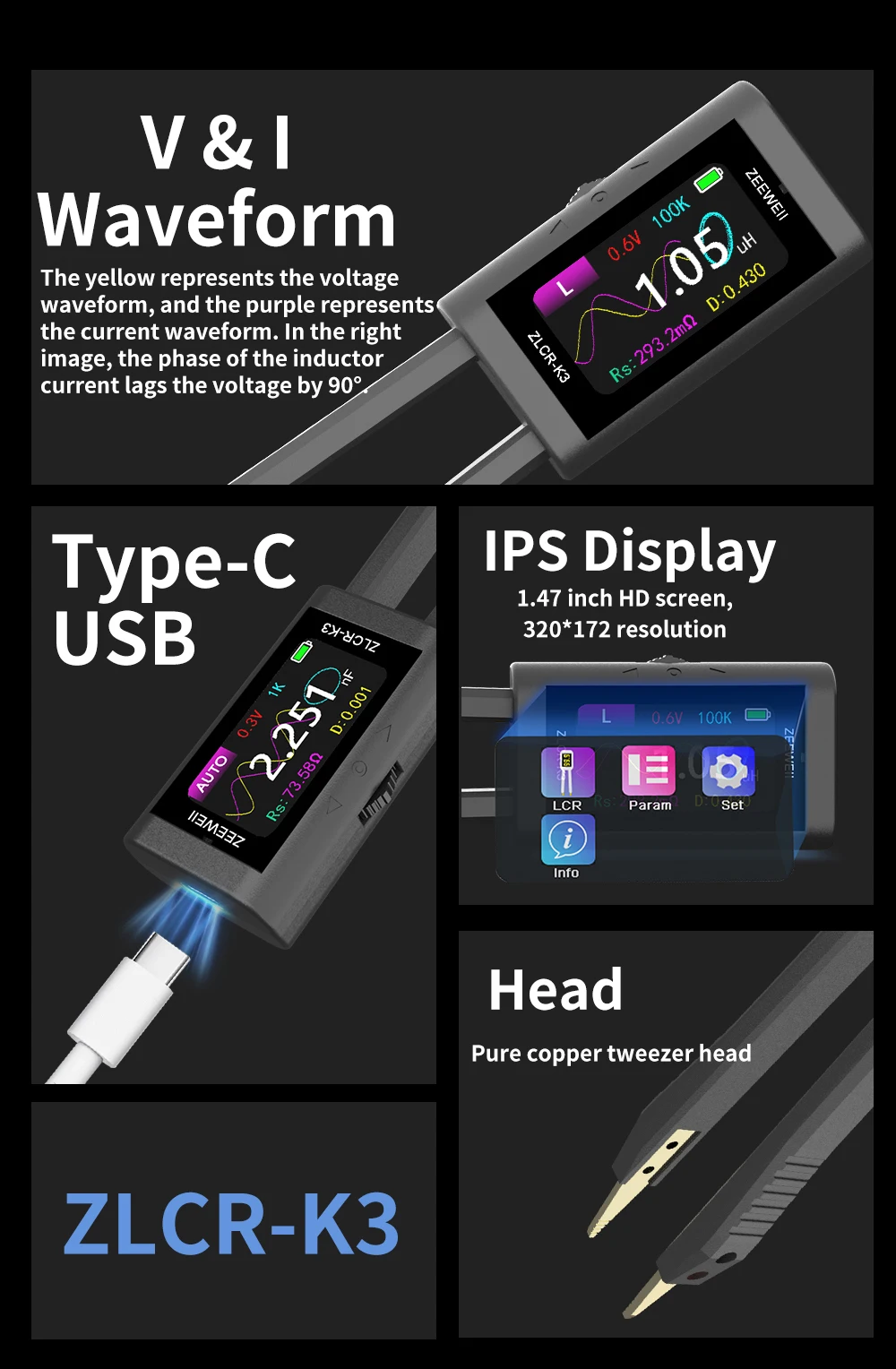

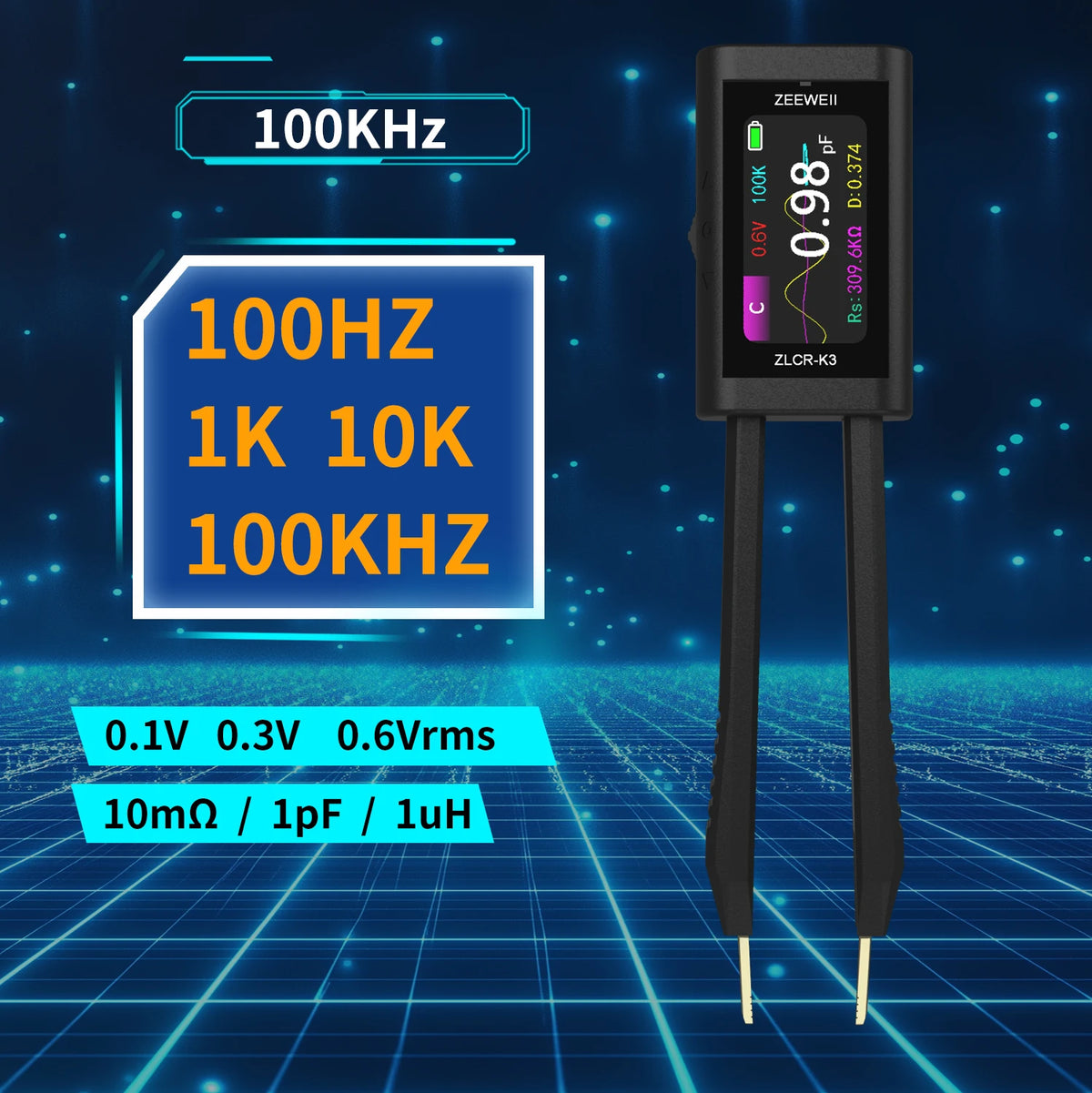

It features a 1.47-inch high-definition color display. A built-in 300 mAh lithium battery provides long operating time, and the instrument supports 4 test frequencies: 100 Hz, 1 kHz, 10 kHz, and 100 kHz.Supports three voltages: 0.1Vrms, 0.3Vrms, 0.6Vrms


Model: ZLCR-K3
Display: 1.47 Inch HD color screen

Battery: 300mAh lithium battery

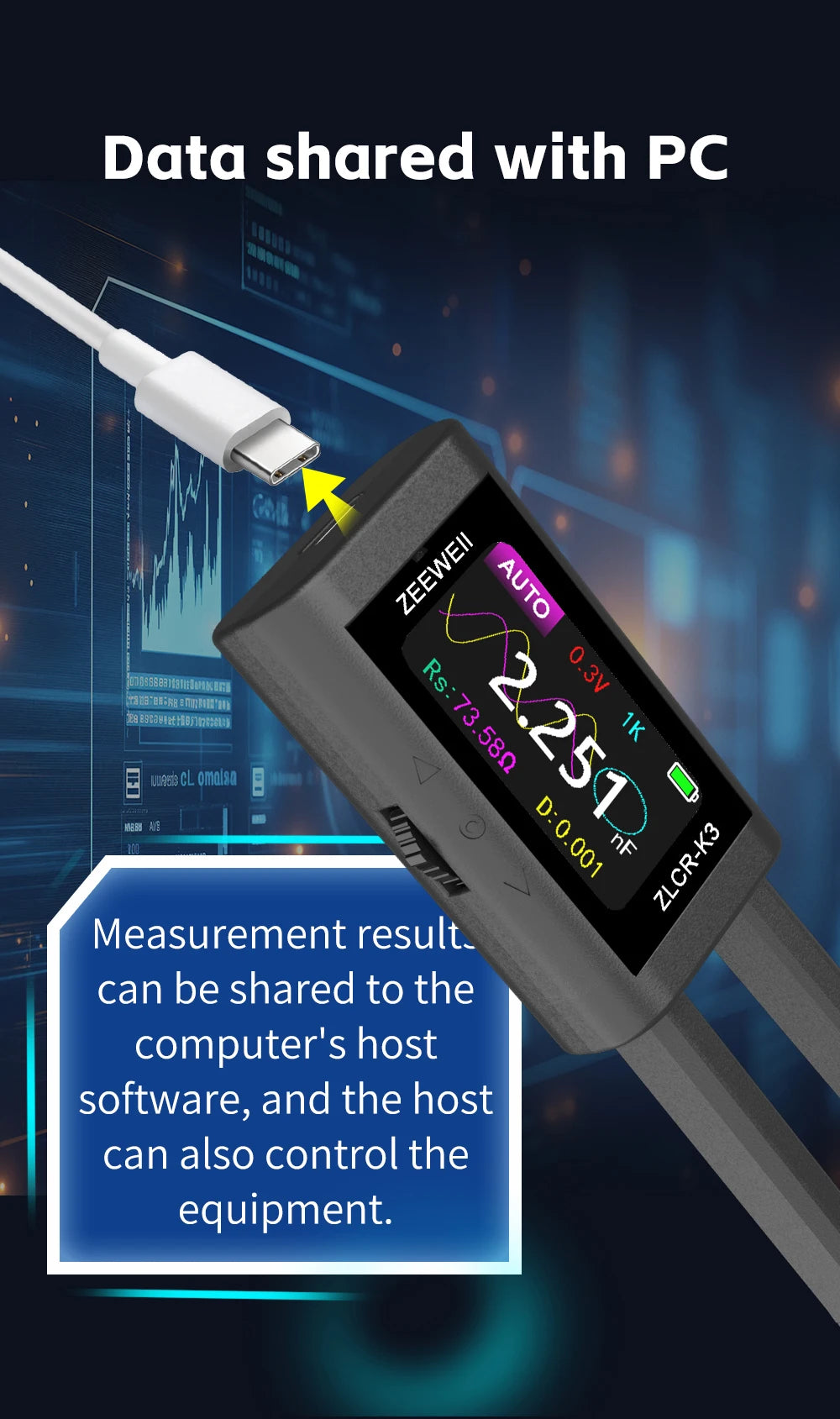

Charging Port: Type-C

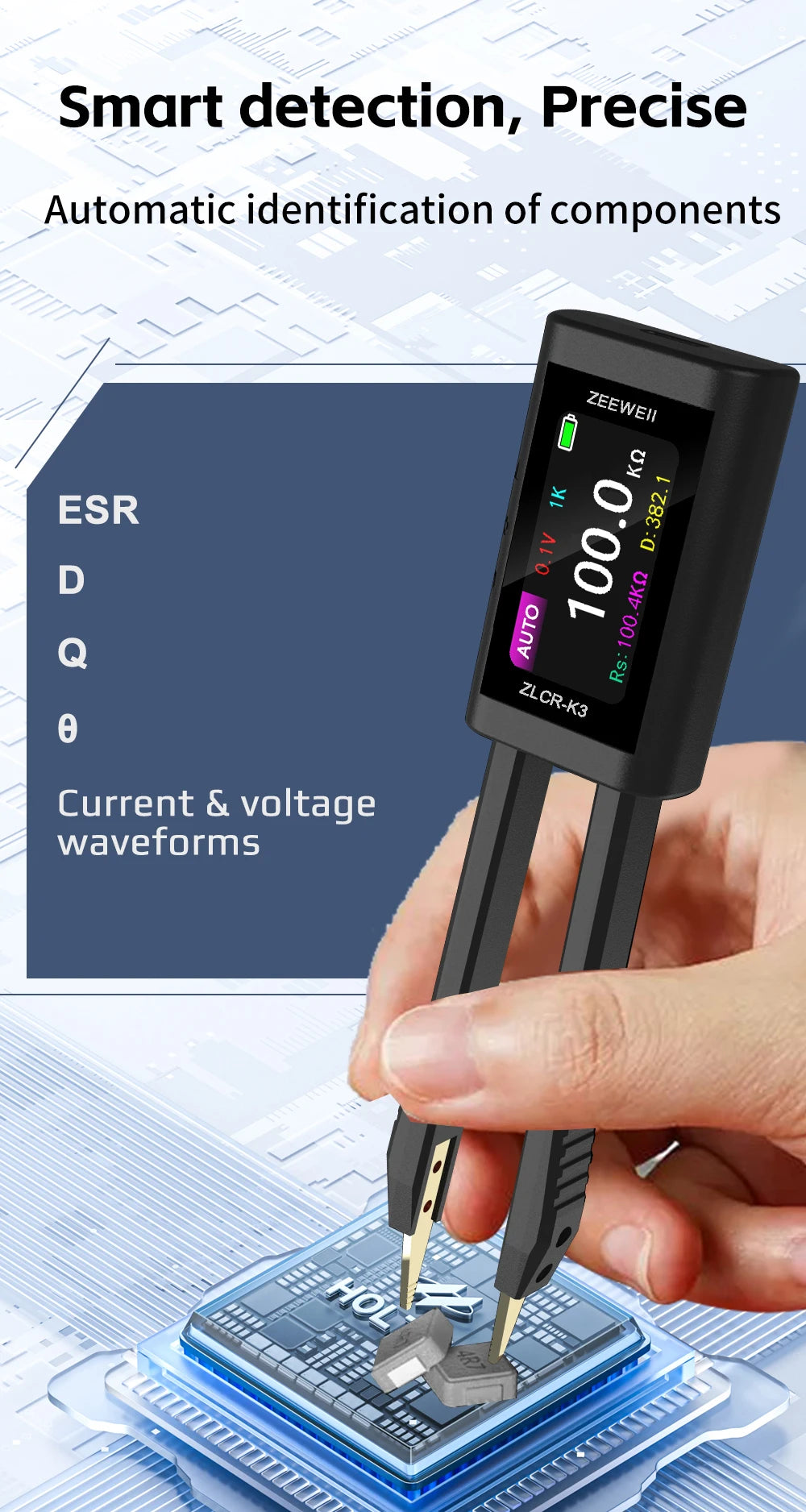

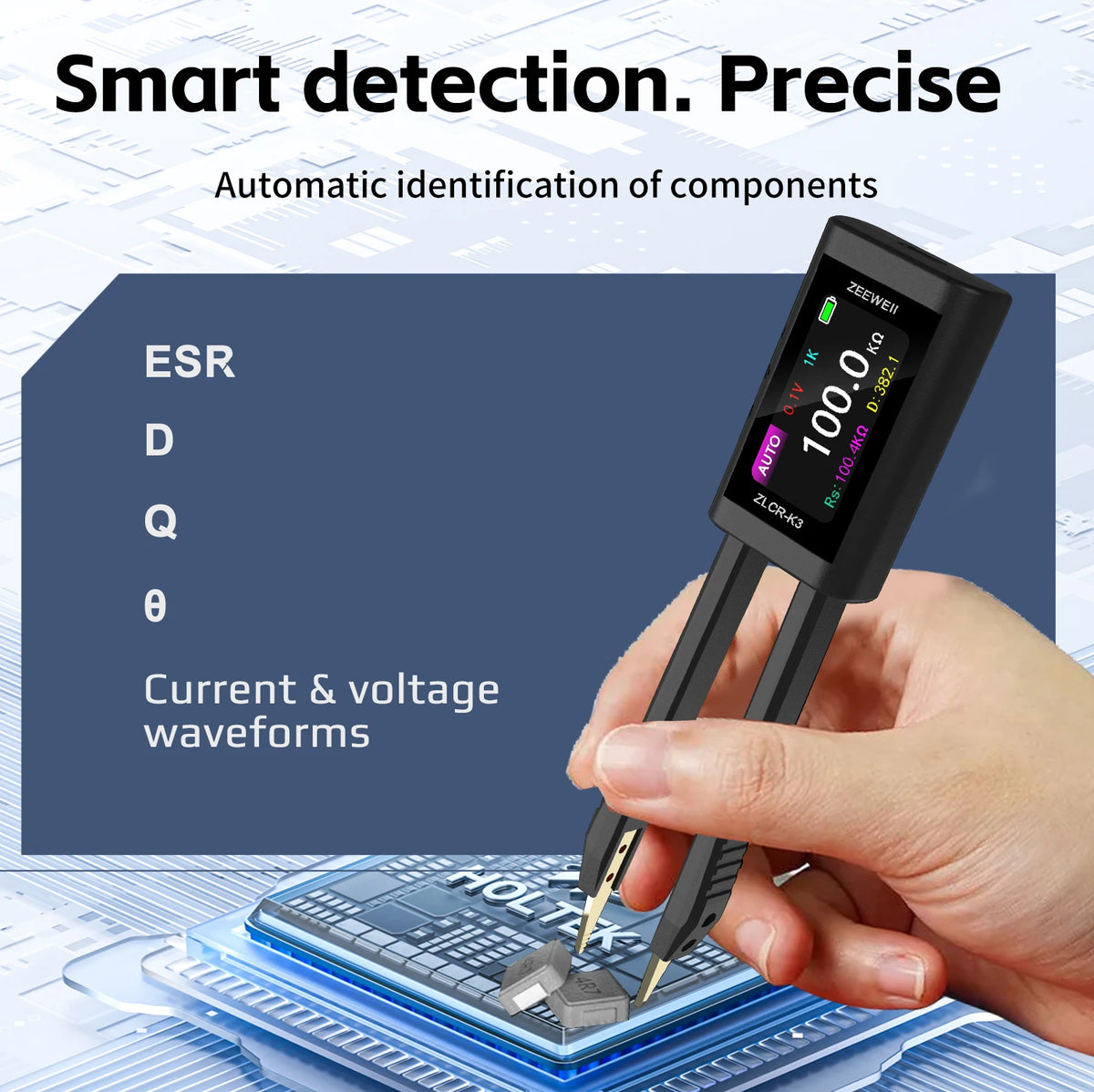

Auto recognition: R-C-L

Capacitance range: 1pF–20mF

Inductance range: 1µH–60H

Resistance range: 10mΩ–10MΩ

Diode forward voltage detection: ≤0.7V

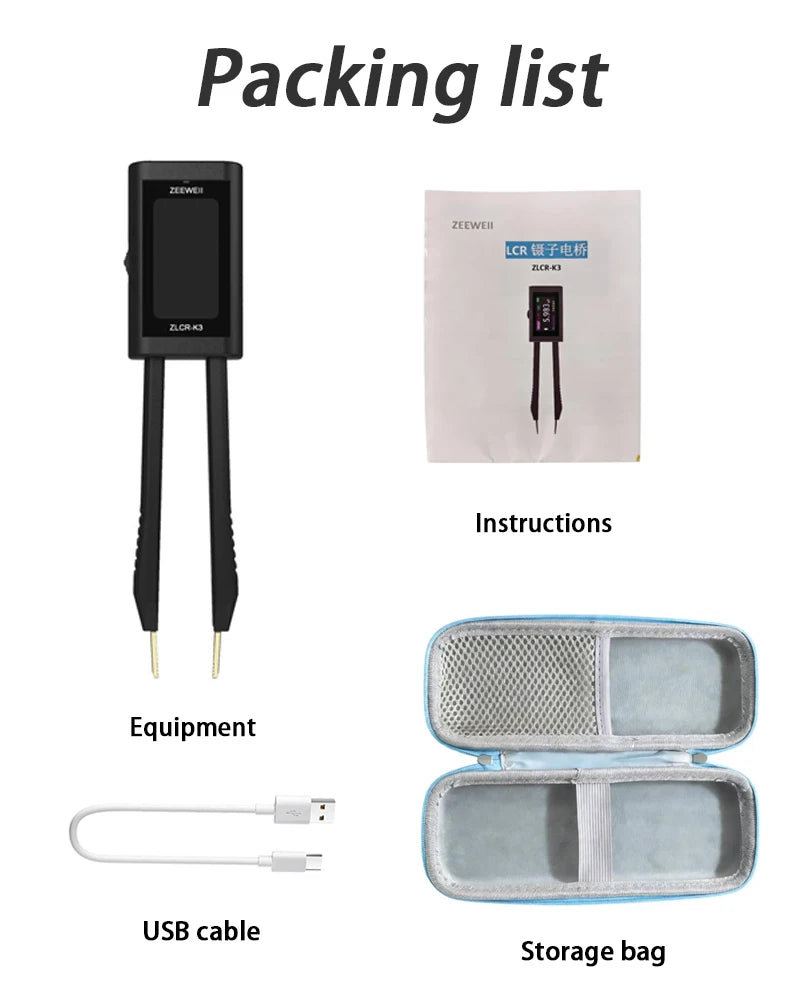

Packing List:

1. LCR Tweezers Device

2. Storage Bag

3. Instruction Manual

4. USB Cable
